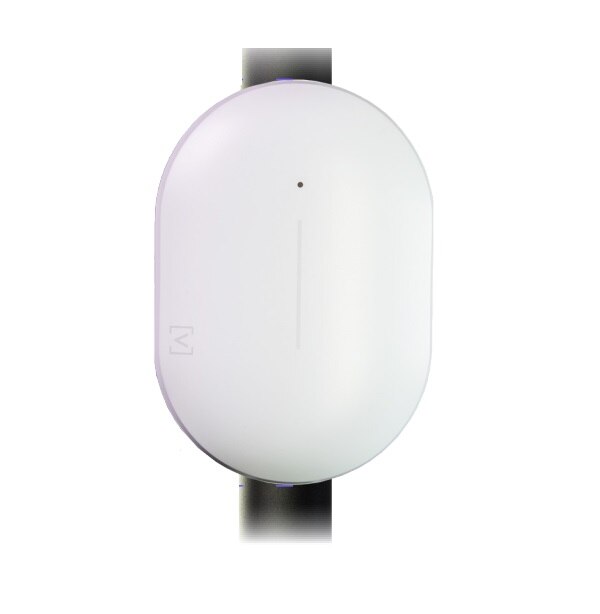

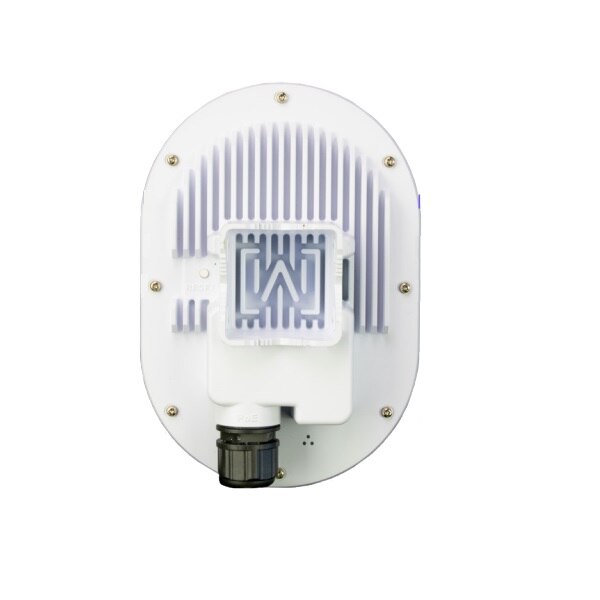

ALTA Labs WiFi6 4x4 Outdoor IP68 Cloud Managed Enterprise Access Point
- SKU: AP6-Pro Outdoor
$276.86
Product Information
The Alta Labs AP6-Pro Outdoor is IP68-rated, offering maximum protection against the environment. It is designed to withstand harsh environments and has an operating temperature of -40 to 70° C (-40 to 158° F).
- IP68 for Optimal Weatherproof Protection
- 5GHz: 4x4, DL/UL MU-MIMO, 2.4 GHz 2x2 DL/UL MU-OFDMA
- WiFi 6 With WiFi 7 Benefits
- Superior Range and Performance
- Omnidirectional + Mesh Connectivity
- AltaPass Multi-Password Technology
- Scalable Cloud-Based Management
- Mobile App
- DPI Engine
- Hotspot Functionality
- On-The-Fly Changes and Scanning
- SSID Broadcasting Flexibility
Specifications
Specifications AP6-Pro Outdoor
| Dimensions | 210 x 150 x 90 mm (8.3 x 5.9 x 3.5") |
| Weight | 0.9 kg (1.9 lbs) |
| Enclosure Material | Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |
| Wall Mount Material | Galvanized Steel |
| Weatherproofing | IP68 |
| HARDWARE | |
| Network Interface | Ethernet, WiFi, Bluetooth |
| Management Interface | (1) GbE RJ45 Port |
| Button(s) | Reset/Factory Reset |
| LED | Blue, White |
| Power Method | PoE+ |
| Power Supply | PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter (Optional) |
| Supported Voltage Range | 42.5-57V DC |
| Power Consumption | 25W Max, 7 - 15W Typical @ 23° C (73° F) |
| Max. Transmit Power | 2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS |
| MIMO | 5 GHz: 4 x 4, DL/UL MU-MIMO, DL/UL MU-OFDMA 2.4 GHz: 2 x 2. DL/UL MU-OFDMA Explicit TX beam-forming |
| Throughput Rate | 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 5.8 Gbps |
| Antenna Gain | 2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.3 dBi |

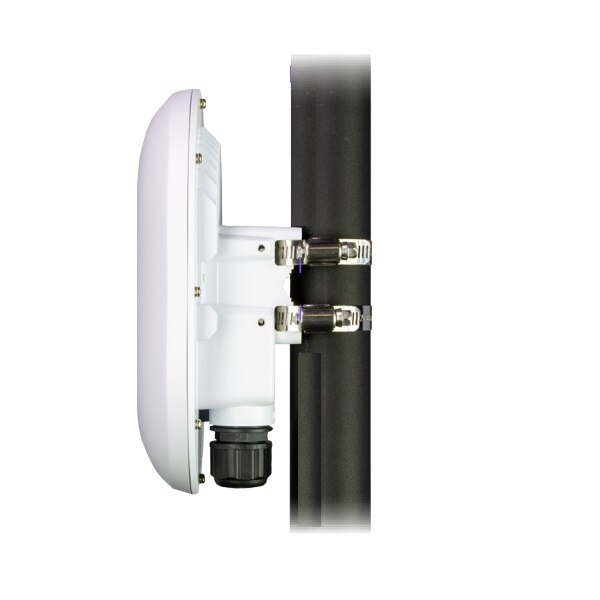

| Mounting | Pole mount, wall mount |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC (Visit Alta.inc for a full list of certifications) |
| SOFTWARE | |
| WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6) |
| Roaming | 802.11r/k/v |
| Wireless Security | WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3) |
| Multi-BSSID | Supported |
| VLAN | 802.1Q |
| Advanced QoS | 802.11e |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 350+ |
| Zero Wait DFS | Yes |
| Intelligent WiFi Scheduling | Yes |
| Hotspot Functionality | Yes |
| Scalable To Stadiums | Yes |
| Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
| SUPPORTED DATA RATES | |
| 802.11a/g | 6 Mbps to 54 Mbps |
| 802.11b | 1 Mbps to 11 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (Up to MCS 31) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (Up to MCS 9) |
| 802.11ax | 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13) |
