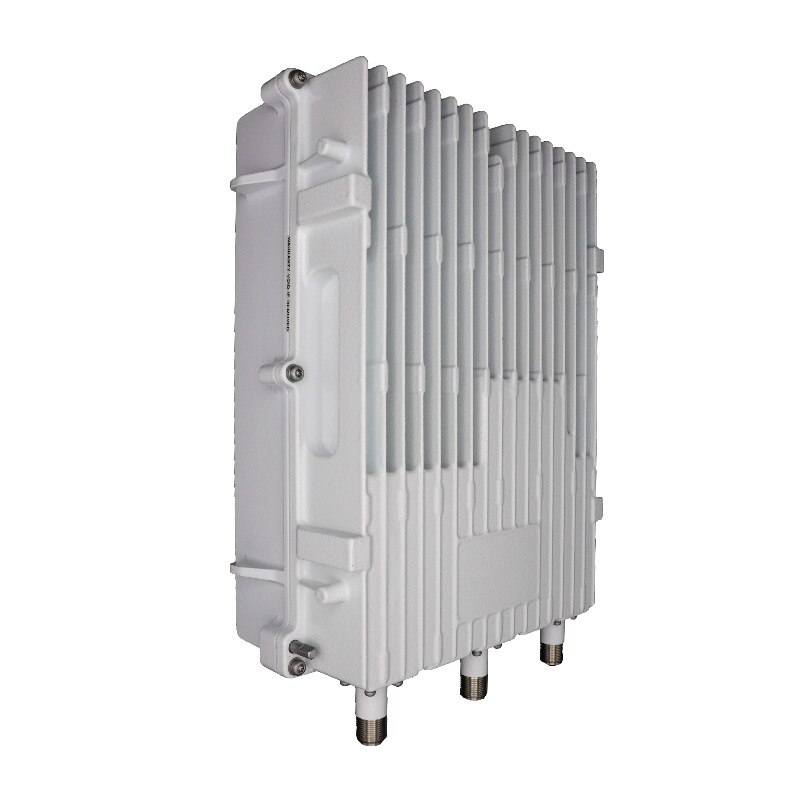

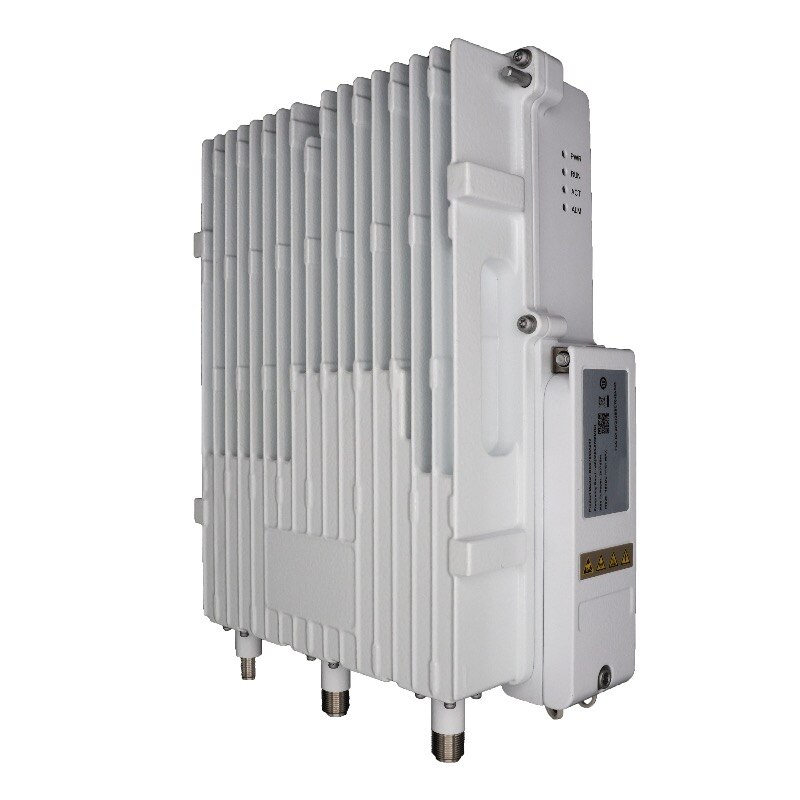

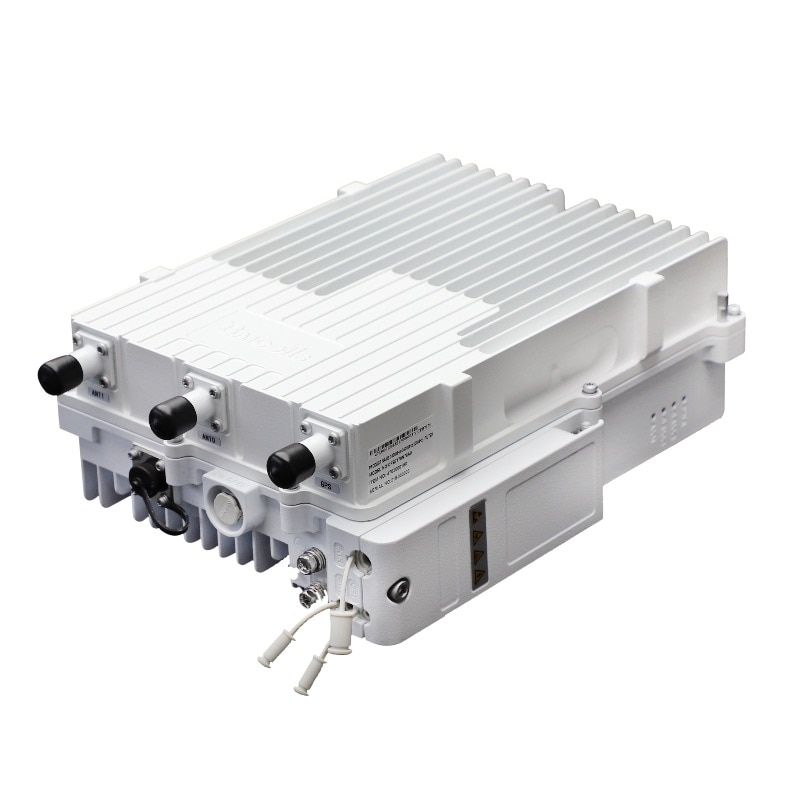

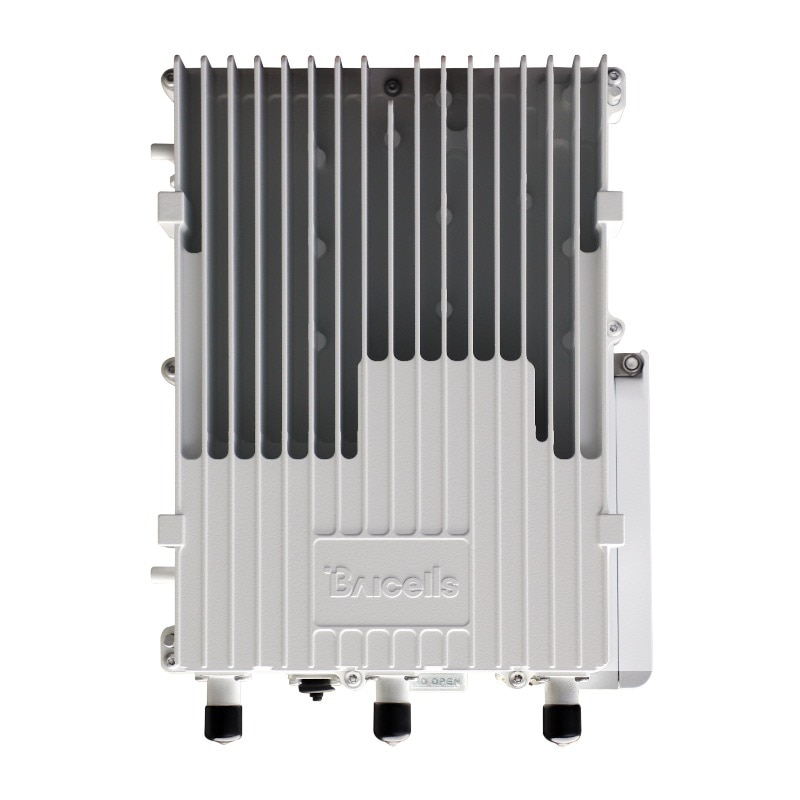

Aurora243 outdoor 5G NR integrated TDD gNB – Qualcomm+NXP, N78(3300MHz-3600MHz),2T2R,2*10W, 90VAC~260VAC, external antenna, 1*RJ45+1*OPT)
- SKU: BSC7078L243
Product Information
Specifications
Specifications
| Standard | 5G NR TDD (3GPP Release 15 and Release 16* compliant) |
| TDD UL/DL Configuration | • 5 ms periodicity (μ=1): DDDDD+DDSUU • 2.5 ms dual periodicity (μ=1): DDDSU+DDSUU • 2.5 ms single periodicity (μ=1): DSUUU* (With Special Subframe Configuration: 10:2:2) |
| Frequency Band | N78 (3300 MHz–3600 MHz) / (3600 MHz–3800 MHz) |
| Channel Bandwidth | N78: 40/60/80/90/100 MHz NOTE: In HaloB scenario, 10/20/30/40 MHz are supported. Support for 50/60/70/80/90/100 MHz is planned for a future release. |
| Multiplexing | 2x2 MIMO (DL: 2L, UL: 2L) |
| Security | Radio: SNOW 3G/AES-128 Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
| INTERFACE | |
| Ethernet Interface | 1 optical (SFP+) and 1 RJ-45 Ethernet interface (1 GE) |
| Power Supply | 90 VAC to 264 VAC, 47 Hz to 63 Hz or -40 VDC to -57 VDC, nominal -48 VDC |
| Protocols Used | IPv4/IPv6, UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPS, DHCP |
| Network Management | IPv4/IPv6, HTTP/HTTPs, TR-069, SSH, Embedded 5GC* |
| VLAN/VxLAN* | 802.IQ/VxLAN |
| LED Indicators | 4 x status LED PWR/ACT/RUN/ALM |
| Antenna Connection | 2T2R N-Type connectors for external high-gain antenna |
| GPS Antenna | External GPS antenna, N-Type connector |
| PERFORMANCE | |
| User Capacity | Supports up to 600 RRC connected users and 200 RRC active users on 100 MHz channels or 500 RRC connected users and 100 RRC active users on 40 MHz channels. |
| Maximum Deployment Range | 1.5 km |
| Latency | Round-Trip Delay (RTD) less than 10 milliseconds |
| Receive Sensitivity | -95 dBm (per channel) |
| Modulation | UL: MCS0 (QPSK) to MCS28 (256 QAM) DL: MCS0 (QPSK) to MCS27 (256 QAM) |
| Transmit Power Range | 0 to 40 dBm per channel (combined +43 dBm, configurable) (1 dB interval) |
| Quality of Service | Complies with 3GPP standard 5G QoS Identifier (5QI) |
| ARQ/HARQ | Supported |
| Synchronization | GPS |
| Voice | VoNR/EPS-FB |
| SON | Self-Organizing Network • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| Traffic Offload | Local breakout |
| Maintenance | • Local/Remote Web maintenance • Online status management • Performance statistics • Fault management • Local/Remote software upgrade • Logging • Connectivity diagnosis • Auto startup |
| LINK BUDGET | |
| VSWR | <= 1.5 |
| EIRP | Antenna gain = G EIRP = (43+G) dBm |
| Power Control | UL Open-loop/Closed-loop Power Control, DL Power Allocation (3GPP TS 38.213 compliant)* |
| Surge Suppression | Network interface: 1 KV Power Interface: • Differential mode: 2 KA • Common mode: 4 KA |
| Lightning Protection | Power Interface: • Differential mode: ±10 KA • Common mode: ±20 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -22°F to 131°F / -30°C to 55°C |
| Storage Temperature | -40°F to 149°F / -40°C to 65°C |
| Humidity | 2% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Maximum 150 W |
| Weight | With bracket: 16.5 lb/7.5 kg Without bracket: 15.9 lb/7.2 kg |
| Dimensions (HxWxD) | 13.1 x 9.4 x 4.3 inches 333 X 240 X 109 millimeters |
| Installation | Pole or wall mount |
| Peak Data Rate | ||
| 100 MHz | DL (Mbps) 256 QAM | UL (Mbps) 256 QAM |
| 7D2U | 850 | 230 |
| 5D3U | 720 | 330 |
| 1D3U* | 380 | 660 |
| 40 MHz | DL (Mbps) 256 QAM | UL (Mbps) 256 QAM |
| 7D2U | 325 | 88 |
| 5D3U | 279 | 132 |
