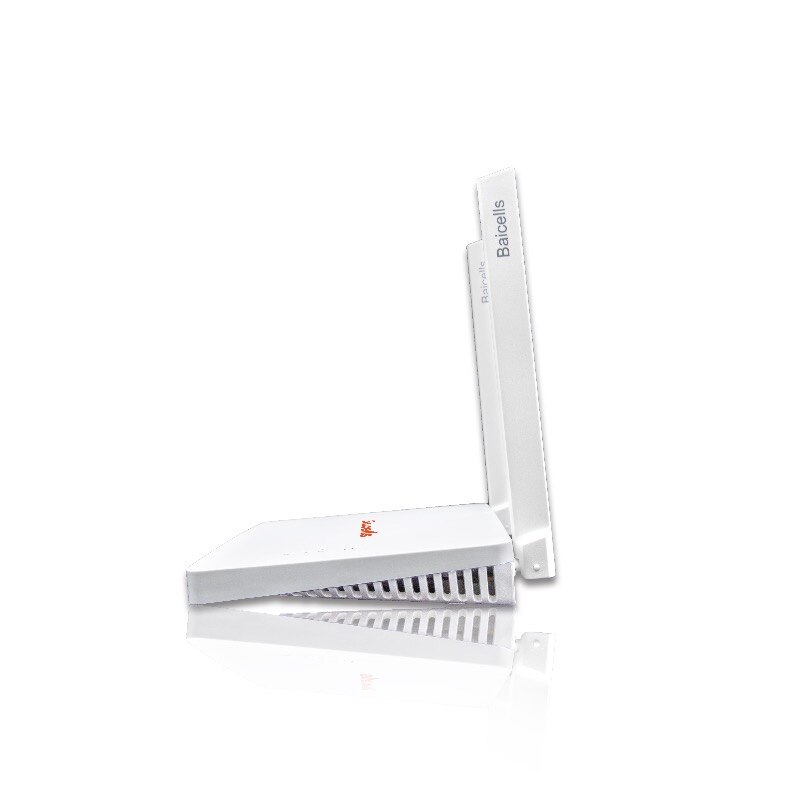

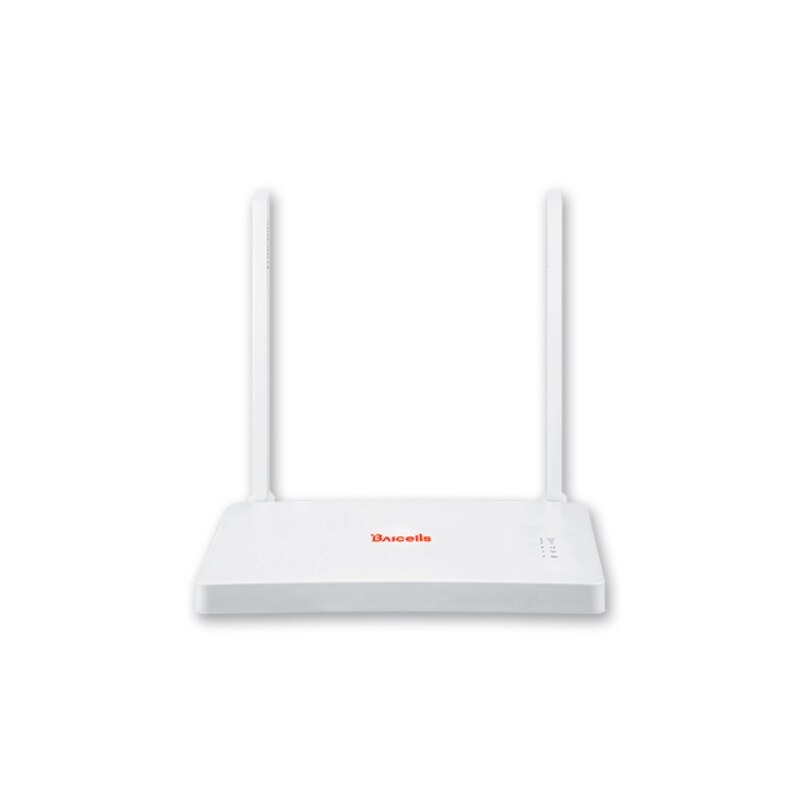

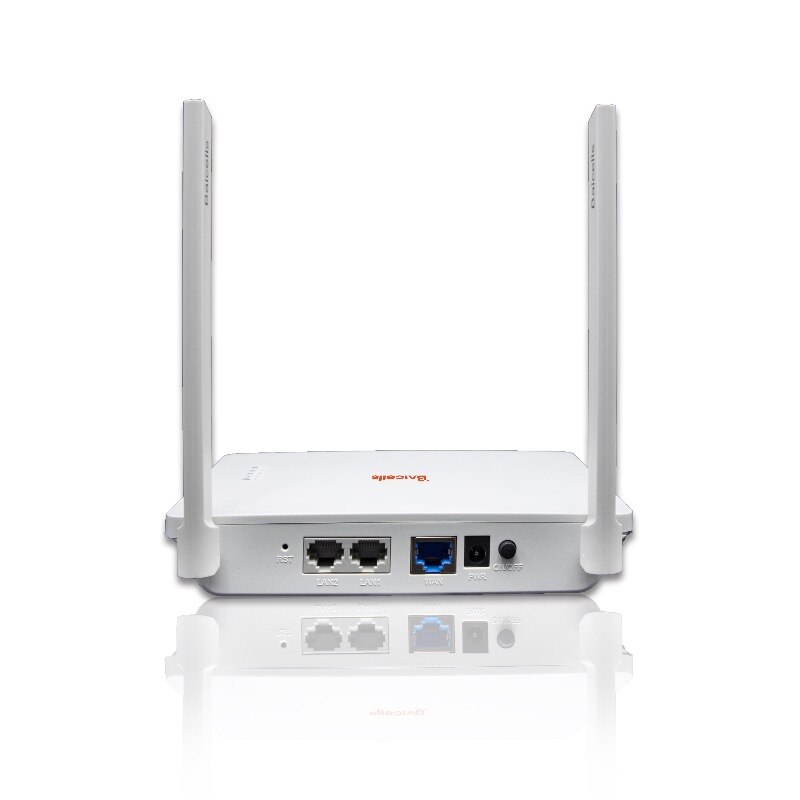

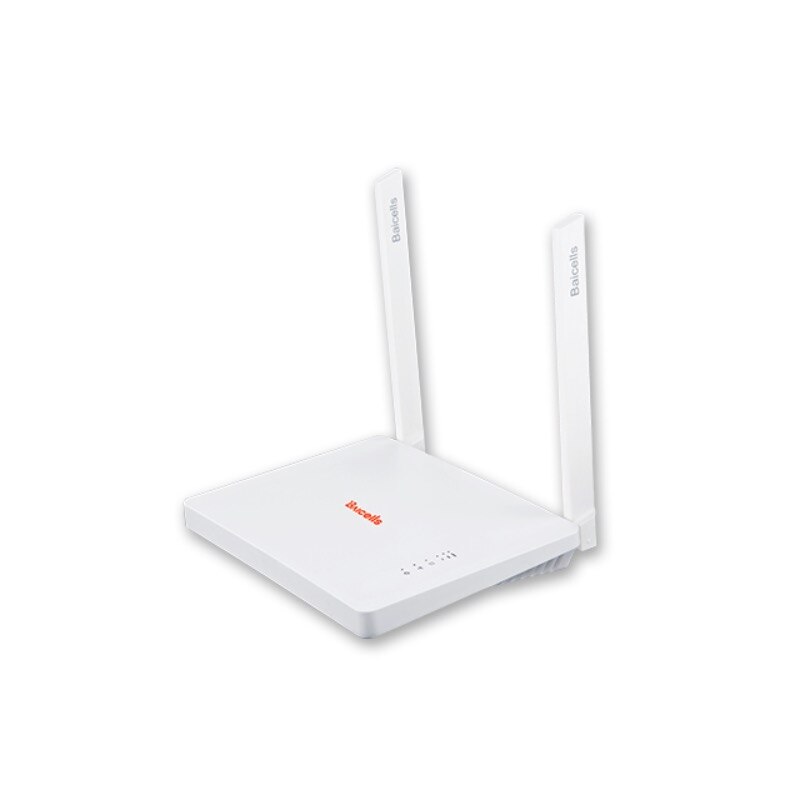

IEEE 802.11b/g/n/ac WIFI, 2.4GHz, 5G dual-bands with POE output, US plug
- SKU: EP3011
$106.40
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
IEEE 802.11b/g/n/ac WIFI, 2.4GHz, 5G dual-bands with POE output, US plug
Specifications
Specifications EP3011
| WAN Port | 1*10/100/1000 auto-sensing, auto-MDX |
| LAN Port | 2*10/100/1000 auto-sensing, auto-MDX |
| Power Supply | Input: Universal range 100V-240V ACPoE Output: 24V DC PoE, 2A |
| Power Switch | On/Off |
| Reset Button | Press for 10 seconds to restore the router to its factory settings LEDs Power/WLAN/SYS/LTE Signal |
| Dimensions | H/W/D 6.9 x 5 x 1 inches 175 x 130 x 30 millimeters |
| Weight | 17.6 ounces / 500 grams |
| Wi-Fi | |
| Standard | IEEE 802.11b/g/n/ac |
| Channel Bandwidth | 20 MHz, 40 or 20 MHz, 40 MHz, 80 MHz |
| Frequency | 2.4 GHz and 5 GHz dual-band support |
| MIMO | 2x2 |
| Peak Rate | 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps 802.11ac: 866 Mbps |
| Modulation | DSSS/CCK, OFDM |
| Sensitivity | • -64 dBm @ 65 Mbps, typical for 802.11n/ac • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b |
| Max Output Power | 14±3 dBm |
| Antenna Type | Internal omni, 2T2R |
| Antenna Gain | 5 dBi |
| Active Users | 32 |
| SOFTWARE | |
| Network Mode | NAT or Bridge |
| IP Protocol | IPv4/IPv6 |
| SIM | PIN management, SIM lock |
| Network Connection | Auto or Manual |
| LTE Scan Mode | Full band scan, frequency lock, PCI lock |
| WLAN | WPS, MSSID isolation |
| VPN | L2TP/PPTP/GRE, VxLAN |
| NAT | Port forwarding, DMZ, ALG |
| Firewall | IP/MAC/URL filter, access control, block port scanner, SYN flood |
| Network Mgmt | TR069 |
| Diagnostics | TCP dump, ping, trace route |
| Statistics | • LTE status • Connection, system up time • Device status • DHCP client list • Wi-Fi station list • Firewall status |
| Maintenance | • Date and time setting • Reboot • Restore factory settings • Restore/back up config files • Firmware upgrade locally or OTA |
| System Logs | Operating, run-time, filter / select / display / export |
| Antenna Selection | N/A |
| ENVIRONMENTAL | |
| Operating Temperature | 14°F to 113°F / -10°C to 45°C |
| Storage Temperature | -4°F to 158°F / -20°C to 70°C |
| Operating Humidity | 5% to 95% |
