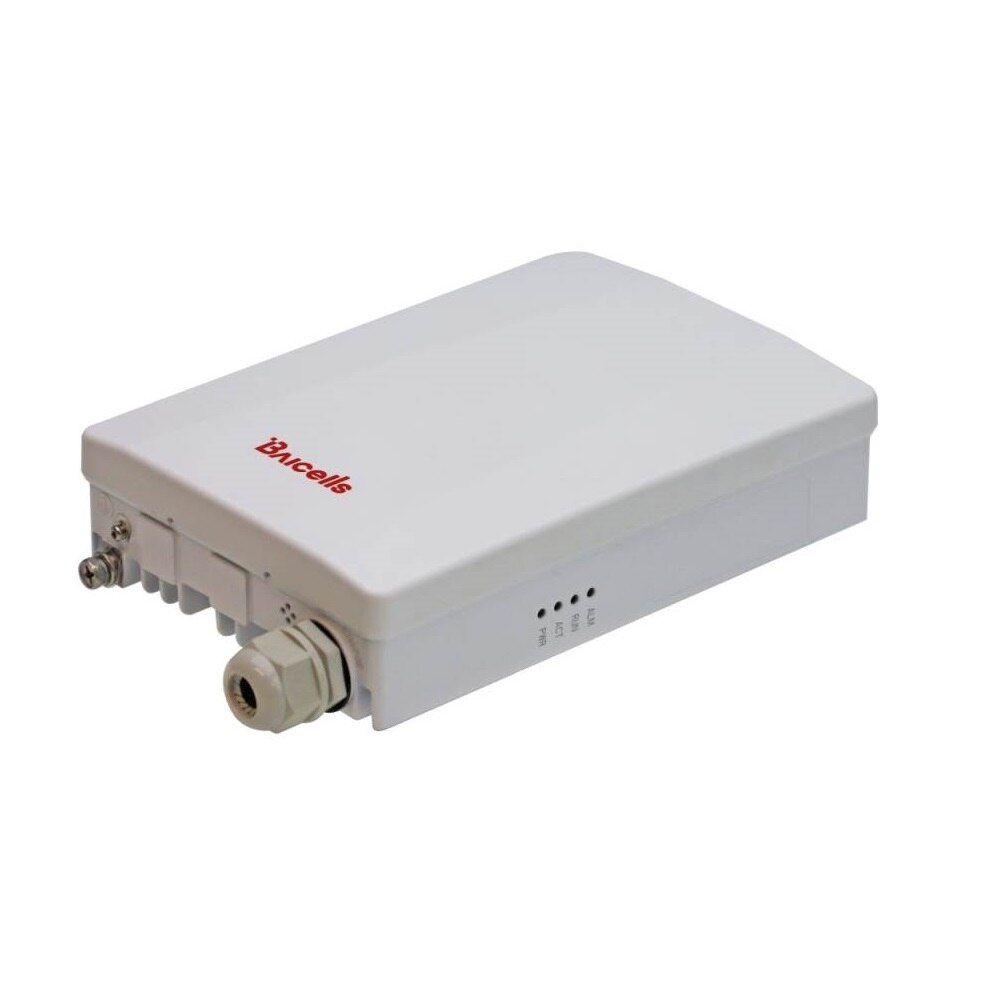

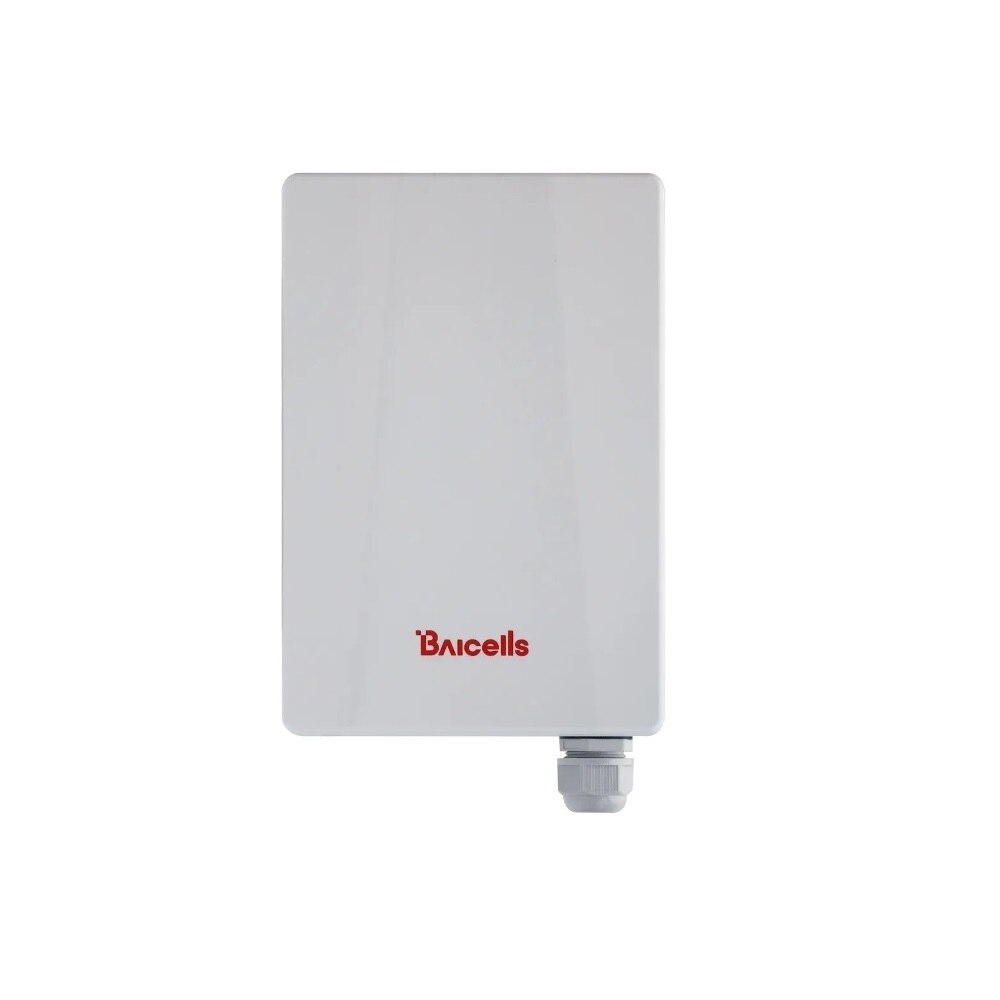

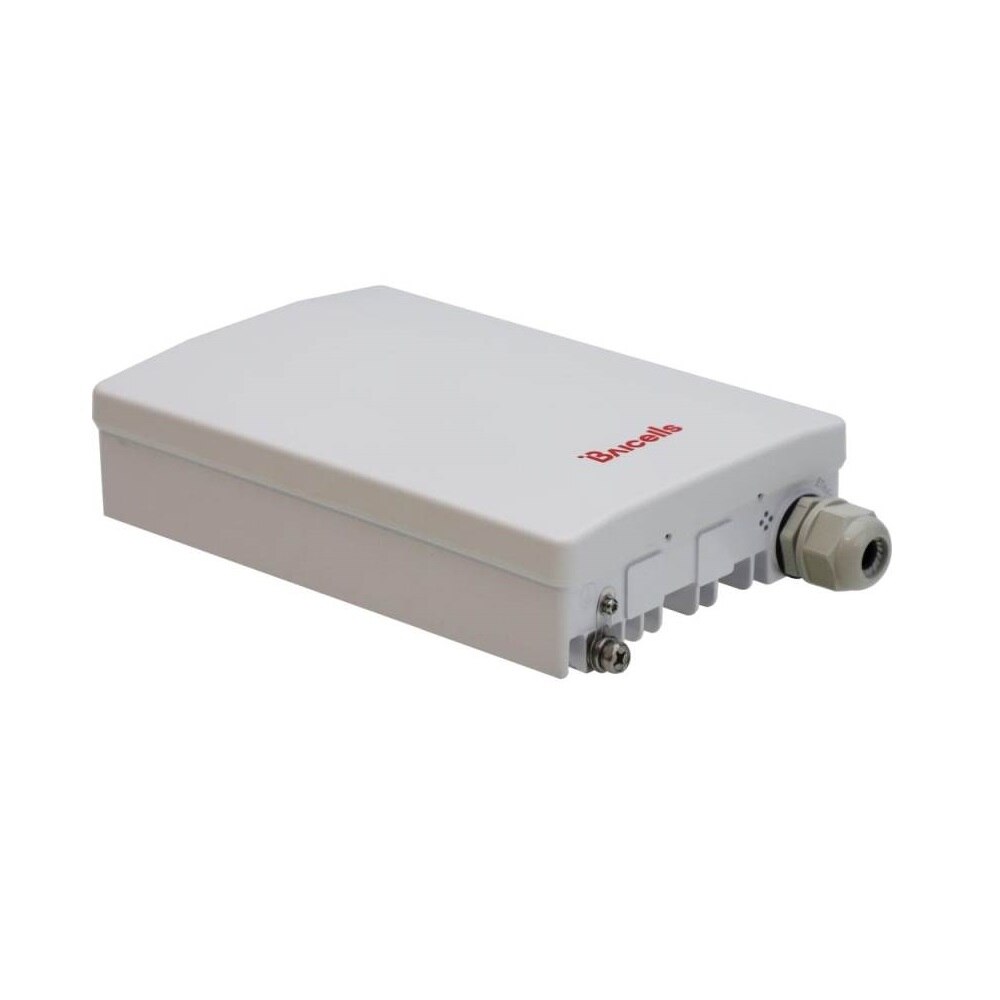

TDD Outdoor Micro cell, Band48, 3550MHz-3700MHz, 2T2R, 2*500mW,POE+, ETH, built-in antenna supported: AS
- SKU: pBS41010
$1,399.49
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
TDD Outdoor Micro cell eith HaloB, Band48, 3550MHz-3700MHz, 2T2R, 2*500mW,POE+, ETH, built-in antenna supported: AS
Specifications
Specifications pBS41010
| Power Interface Lightning | Differential mode: ±3 KA |
| Protection | Common mode: ±5 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -49°F to 158°F / -45°C to 70°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Typical 22.5 W, maximum 25 W |
| Weight | 3.11 lb/1.41 kg |
| Dimensions (HxWxD) | 8.7 x 5.9 x 2.05 inches 221 x 150 x 52 millimeters |
| Installation | Pole or wall mount |
| FCC Certification | 2AG32PBS41010 |
| IC Certification | TBD |
| RF Antenna Gain | 13.5 dBi |
| Maximum EIRP | 43.5 dBm |
| Power Control | UL Open-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
| Voice | VoLTE, Circuit Switched Fallback (CSFB) to GSM |
| NSA | Supported |
| SON | Self-Organizing Network • Automatic setup • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| EPC | HaloB (Embedded EPC) |
| RET support | Yes |
| Traffic Offload | Local breakout |
| Layer 2 Support | Transparent Bridge Mode |
| TECHNOLOGY | |
| Standard | LTE TDD RAN (3GPP Release 15 compliant) |
| TDD UL/DL Configuration | 1, 2, 6 (with Special Subframe Configuration 7) |
| Frequency Band | B48 (3550 MHz–3700 MHz) |
| Channel Bandwidth | 5/10/15/20 MHz |
| Multiplexing Security | MIMO: 2x2 (DL) Radio: SNOW 3G/AES-128/ZUC Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128) |
| INTERFACE | |
| Ethernet Interface | 1 RJ-45 Ethernet interface (1 GE) |
| Power Supply | PoE++, complies with IEEE 802.3bt standard |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, 1588v2, DHCP |
| Network Management | IPv4/IPv6, HTTP/HTTPs, TR-069, SSH, Embedded EPC |
| VLAN/VxLAN | 802.IQ/VxLAN |
| LED Indicators | 4 x status LED PWR/ACT/RUN/ALM |
| PERFORMANCE | |
| User Capacity | Up to 32 RRC connected users per cell (4 users per TTI) |
| Maximum Deployment Range | 7 kilometers |
| Latency | 30 milliseconds |
| Receive Sensitivity | -99.5 dBm (per channel) |
| Modulation | MCS0 (QPSK) to MCS28 (64 QAM) DL: QPSK, 16 QAM, 64 QAM UL: QPSK, 16 QAM, 64 QAM |
| Transmit Power Range | 0 to 27 dBm (combined, with 1 dB interval) |
| Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
| ARQ/HARQ | Supported |
| Synchronization | GPS (built-in), 1588v2 |
