Cambium Networks cnRanger Sector Antenna 90/120deg 16dBi 2GHz
- SKU: 2LTE-ANT-90
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks 2LTE-ANT-90
cnRanger Sector Antenna - 90/120 degree, 16 dBi
The cnRanger™ Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.
Features:
- Optimized coverage for fixed wireless deployment
- Innovative antenna design
- Simplified design to attach RRH
Specifications
Specifications 2LTE-ANT-90
| Frequency Range | 2300 MHz to 2700 MHz |
| Gain | 16 dBi |
| VSWR | 2:1 max |
| 3 dB Beamwidth - Azimuth | 90° |
| 6 dB Beamwidth - Azimuth | 120° |
| 3 dB Beamwidth - Elevation | 7° |
| Pattern Roll Off at Sector Edge | 12 dB |
| Electrical Downtilt | -2° |
| Polarization | Slant, +/- 45 Degrees |
| Front-to-Back Isolation | >25 dB |
| Cross Polarization | >16 dB |
| Port-to-Port Isolation | > 20 dB |
| Maximum Input Power | 5 W |
| Input Impedance | 50 Ohms |
| Mounting Connectors | N Type |

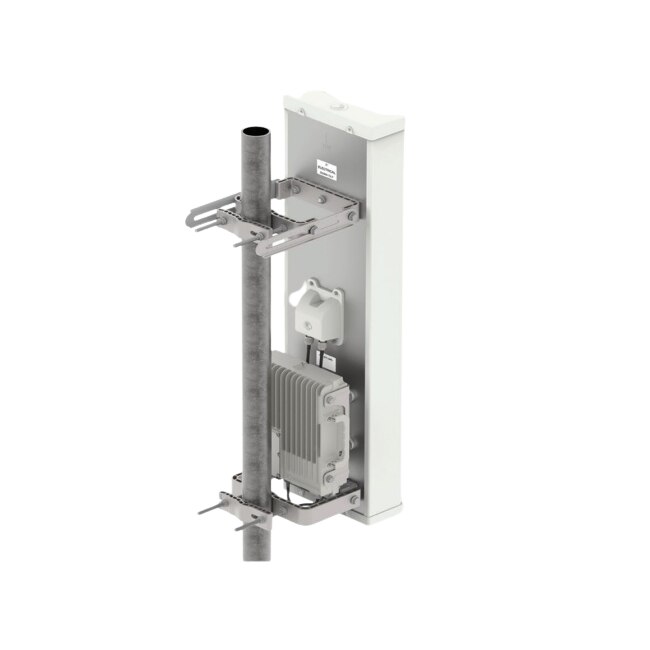

| Mounting Hardware | Included for mounting to mast diameters 2" to 4.5" (5.1 cm to 11.4 cm),-10° to 5° tilt. RRH mounts directly to the rear of the antenna |
| ANTENNA | |
| Physical Dimensions | 42.2" (H) x 10.7" (W) x 4.4" (D) (1072 mm x 272 mm x 113 mm) |
| Weight | 17 Kg with RRH and mounting equipment |
| Environmental | IP66 |
| Radome Material | UV Stabilized |
| Operating Temperature | -40°C to +85°C |
| Rated Wind Velocity | 180 Km/Hr |
