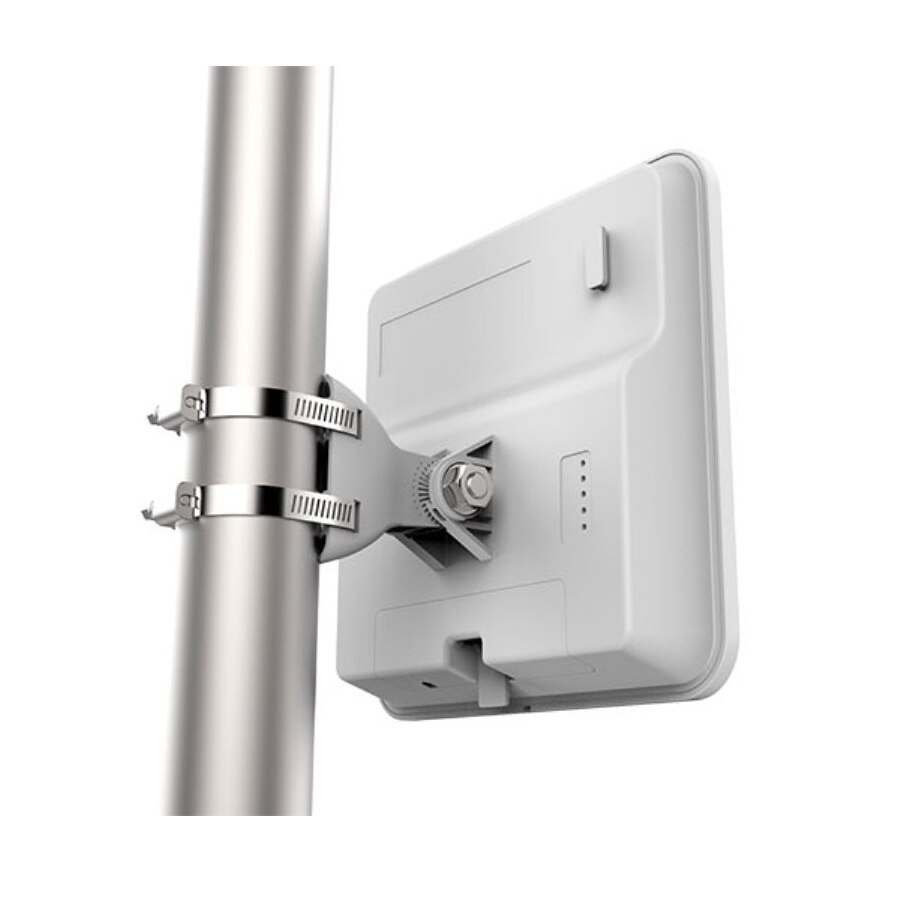

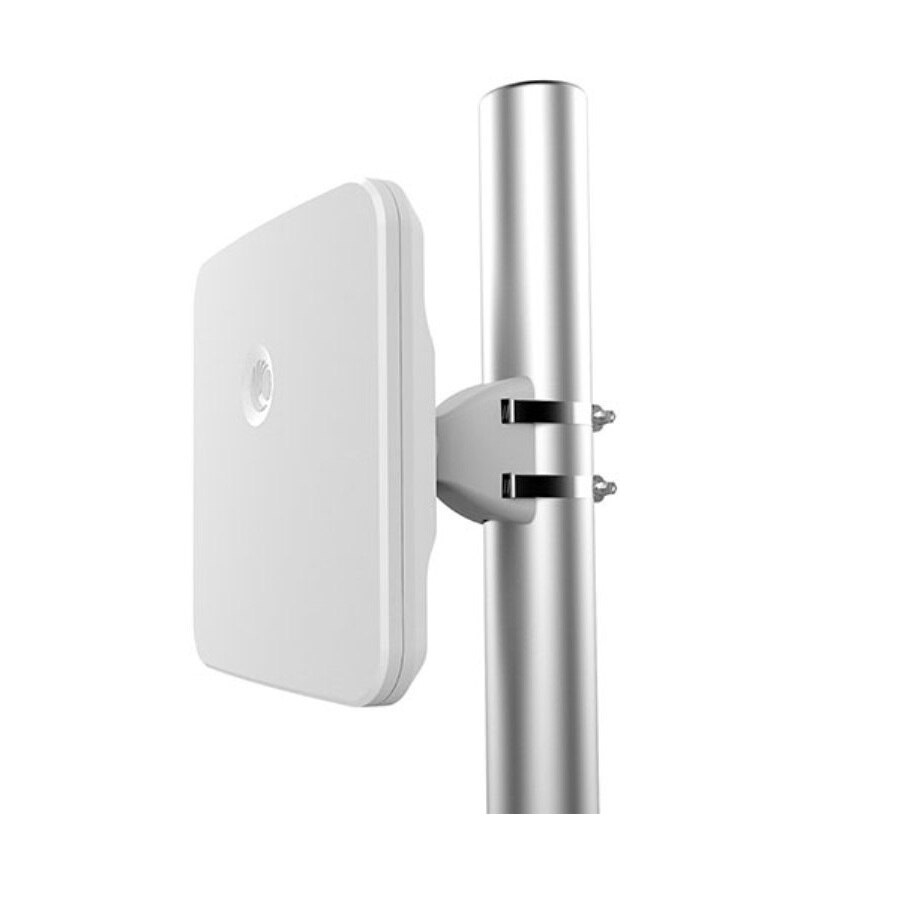

Cambium Networks 2GHz cnRanger Tyndall 101 SM LTE CAT4 (US PSU And AC Line Cord)
- SKU: 2LTE-SM-101-US
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ISP Supplies supplies the Cambium Networks 2 GHz cnRanger tyndall 101 subscriber module (SM), LTE category 4 low cost CPE, with 14 dBi (US PSU and AC line cord). The cnRanger fixed LTE wireless platform from Cambium substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.
Features:
• LTE Optimized for Fixed Wireless Broadband
• High Power transmitter provides enhanced uplink for 2 GHz 101 SM
• Reliable yet cost effective subscriber for cnRanger system
• Easy installation, with "Point to Go" configuration and provisioning
Interface:
• MAC (Media Access Control) Layer TDD-LTE Advanced Release 10
• Protocols Used: IPv4, UDP, TCP, IP, ICMP
• Network Management: HTTP, HTTPS, SSH, cnMaestro
• MTU: 1500
Performance:
• PPS: TBD
• HARQ: Yes
• Ultimate Sensitivity: -98 dBm
Spectrum:
• Channel Spacing: 1MHz as specified in the BBU
• Frequency Range: LTE Band 38: 2570 - 2620 MHz, LTE Band 40: 2300 - 2400 MHz, LTE Band 41: 2496 - 2690 MHz
• Channel Width: 5 MHz*, 10 MHz, 15 MHz*, 20 MHz
Security:
• Authentication: SIM authentication via BBU, cnMaestro or Web GUI provisions BBU with SIM information
Link Budget:
• Transmit Power Range: 66 dB dynamic range
• Maximum Transmit Power: 26dBm
Physical:
• Surge Suppression: EN61000-4-5: 1.2us/50us, 500 V voltage waveform
• Environmental: IP 55
• Temperature/Humidity: -40°C to +60°C (-40°F to +140°F), 5-95% non-condensing
• Weight (w/included mount): 4.4 lbs (2 kgs)
• Dimensions (HxWxD): 10.2" (H) x 10.2" (W) x 3.6" (D) (260 mm x 260 mm x 92 mm)
• Wind Survival: 190 Km/Hr
• Pole Diameter Range (w/included mount): 1.5" to 3.0" (38 to 76 mm)
• Power Consumption: 7.6 W
• Power Supply: 30 V PoE
• Encryption AES-128 and SNOW 3G
Antenna:
• Integrated Antenna Peak Gain: 15 dBi
• 3 dB Beamwidth - Azimuth: 30 degrees
• 3 dB Beamwidth - Elevation: 30 degrees
• Polarization: Slant, +/- 45 Degrees
• Front-to-Back Isolation: >25 dB
• Cross Polarization: >23dB
Features:
• LTE Standard for EPC and eNB: 3GPP Release 10, category 4
• Default Configuration Reset: Supported
Product Includes:
(1) cnRanger Tyndall
(1) Mounting Strap
(1) User Guide
Specifications
Specifications 2LTE-SM-101-US
| MAC (Media Access Control) Layer | TDD-LTE Advanced Release 10 |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP |
| Network Management | HTTP, HTTPS, SSH, cnMaestro |
| MTU | 1500 |
| Performance | |
| PPS | TBD |
| HARQ | Yes |
| Ultimate Sensitivity | -98 dBm |
| Spectrum | |
| Channel Spacing | 1MHz as specified in the BBU |
| Frequency Range | LTE Band 38: 2570 - 2620 MHz, LTE Band 40: 2300 - 2400 MHz, LTE Band 41: 2496 - 2690 MHz |
| Channel Width | 5 MHz*, 10 MHz, 15 MHz*, 20 MHz |
| Security | |
| Authentication | SIM authentication via BBU, cnMaestro or Web GUI provisions BBU with SIM information |
| Link Budget | |
| Transmit Power Range | 66 dB dynamic range |
| Maximum Transmit Power | 26dBm |
| Physical | |
| Surge Suppression | EN61000-4-5: 1.2us/50us, 500 V voltage waveform |
| Environmental | IP 55 |
| Temperature/Humidity | -40°C to +60°C (-40°F to +140°F), 5-95% non-condensing |
| Weight (w/included mount) | 4.4 lbs (2 kgs) |
| Dimensions (HxWxD) | 10.2" (H) x 10.2" (W) x 3.6" (D) (260 mm x 260 mm x 92 mm) |
| Wind Survival | 190 Km/Hr |
| Pole Diameter Range (w/included mount) | 1.5" to 3.0" (38 to 76 mm) |
| Power Consumption | 7.6 W |
| Power Supply | 30 V PoE |
| Encryption | AES-128 and SNOW 3G |
| Antenna | |
| Integrated Antenna Peak Gain | 15 dBi |
| 3 dB Beamwidth - Azimuth | 30 degrees |
| 3 dB Beamwidth - Elevation | 30 degrees |
| Polarization | Slant, +/- 45 Degrees |
| Front-to-Back Isolation | >25 dB |
| Cross Polarization | >23dB |
| Features | |
| LTE Standard for EPC and eNB | 3GPP Release 10, category 4 |
| Default Configuration Reset | Supported |
