Cambium Networks cnRanger 3GHz Sector Antenna
- SKU: 3LTE-ANT-90
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks 3LTE-ANT-90

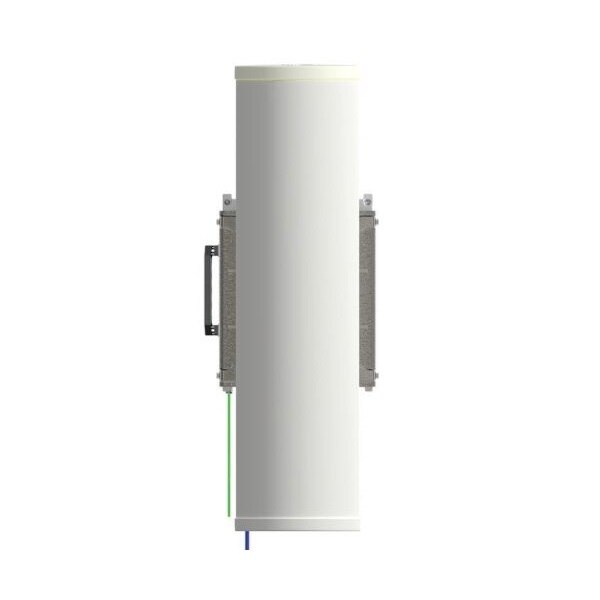

cnRanger Sector Antenna – 90/120 degree, 17 dBi

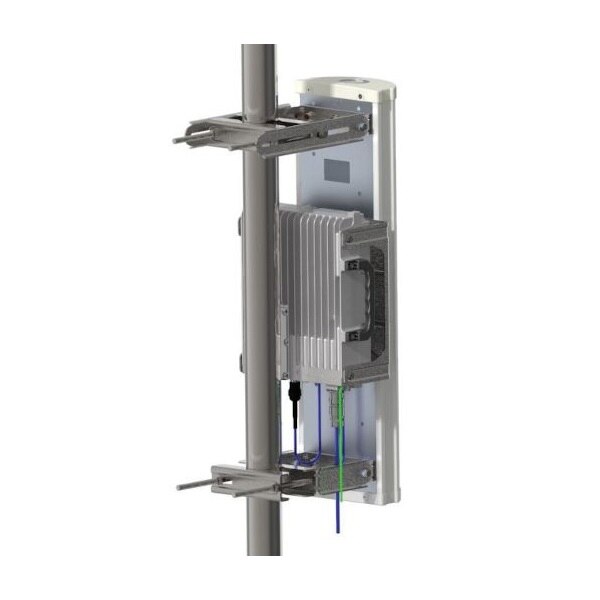

3 GHz Sector Antenna – 90°: Combined with the 3 GHz cnRanger RRH, this antenna provides 17 dBi of gain in a 90° sector or can be used in a 3-sector deployment (120°). The mounting kit to attach the RRH to the antenna is included with this part number.
Features:
- Weight: 4 lb
- Dimensions:83 x 30 x 23 cm
Specifications
| Key Parameters | |
| Device Type | CBRS Antenna (3.5 GHz) |
| Compatible Brands | Universal |
| Electrical Specification | |
| Frequency | 3400 - 3900 MHz |
| Gain | 17 dBi |
| Cross-Polarization Isolation | 16 dB |
| Front-to-Back Ratio (F2B) | 25 dB |
| Port-to-Port Isolation | 20 dB |
| Mechanical Specification | |
| Connector Type | N-Female |
| Dimensions (Inches) | 28.8 x 7.8 x 5.9 |
| Weight | 33 lb |
| Operating Temperature | -40 degF to 185 degF |
| Legal, Regulatory & Compliance |
