Cambium Networks 3GHz cnRanger 201 SM LTE CAT6 21dBi Band 42 43 & 48 (US PSU And AC Line Cord) **Must Purchase In Multiples Of 4 pcs**
- SKU: 3LTE-SM-201-US
$485.87
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ISP Supplies supplies the Cambium Networks 3 GHz cnRanger 201 SM, LTE category 6, 21 dBi, band 42, 43, and 48 (US PSU and AC Line Cord). Sold in multiples of 4 only. The cnRange fixed LTE wireless platform substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.
Key Features:
•Category 6 High Gain CPE in 3 GHz (Bands 42, 43 and 48)
•LTE Optimized for Fixed Wireless Broadband

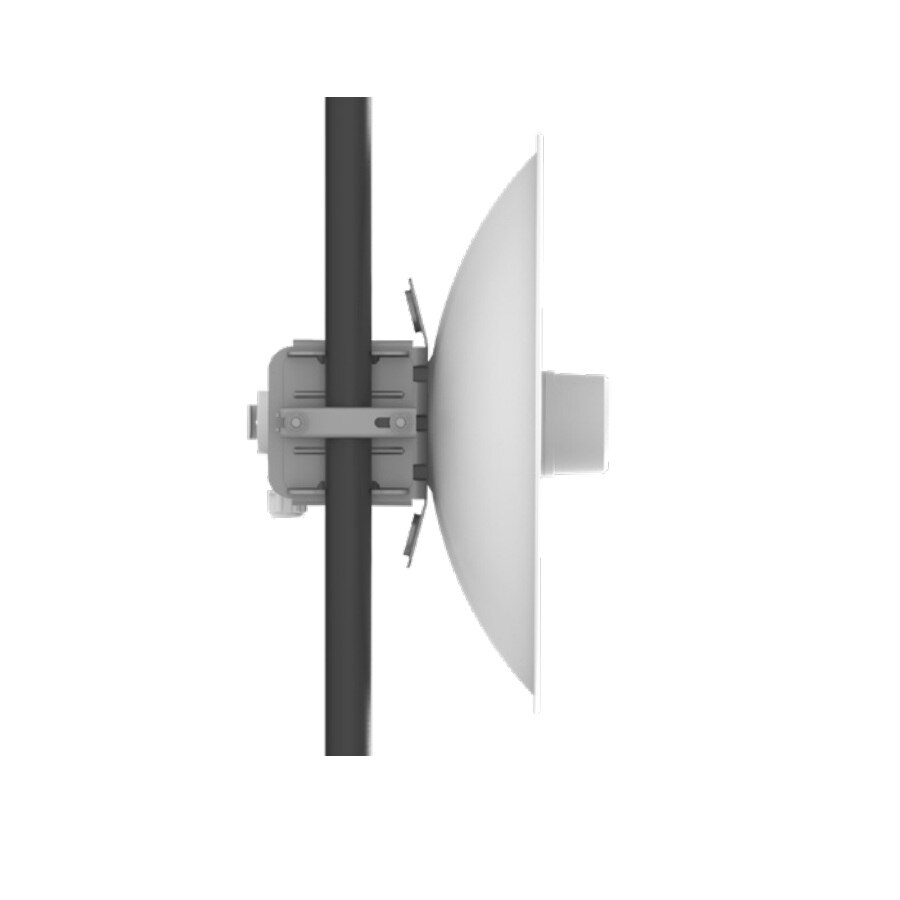

•High Gain integrated parabolic dish for extended range on 201 SMs
•Reliable yet cost effective subscriber modules for cnRanger system
•Easy installation, with “Point and Go” configuration and provisioning
Specifications
Specifications 3LTE-SM-201-US
| LTE UE Type | LTE Category 6 |
| Spectrum | |
| Channel Spacing | 1 MHz as specified in the BBU |
| Frequency Range | LTE Band 42: 3400-3600 MHz LTE Band 43: 3600-3800 MHz LTE Band 48: 3550-3700 MHz |
| Channel Width | 5 MHz*, 10 MHz, 15 MHz, 20 MHz |
| Interface | |
| MAC (Media Access Control) Layer | TDD-LTE Advanced Release 10 |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP |
| Network Management | HTTP, HTTPS, SSH, Cambium Networks cnMaestroTM |
| MTU | 1516 bytes |
| Security | |
| Encryption | AES-128 and SNOW 3G |
| Authentication | SIM authentication via BBU, cnMaestro or Web GUI provisions BBU with SIM information |
| Performance | |
| HARQ | Yes |
| Ultimate Sensitivity | -98 dBm |
| Physical | |
| Surge | Suppression |
| Environmental | IP67 |
| Temperature / Humidity | -40°C to 55°C (-40°F to 131°F), 0-95% non-condensing |
| Weight | 3.2 kg (7 lbs) |
| Wind Survival | 200 kph (124 mph) |
| Dimensions (H x W x Depth) | 450 mm dia x 300 mm (17.7 in. dia x 11.8 in.) |

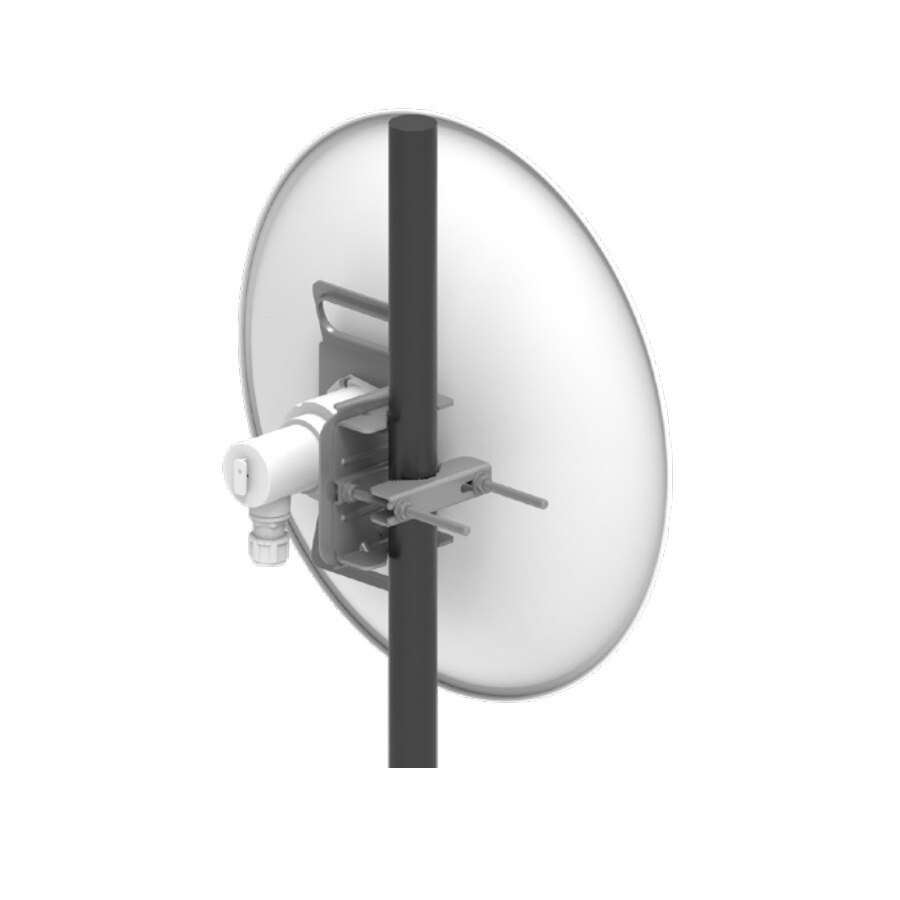

| Pole Diameter Range (w/ included mount) | 38 mm to 76 mm (1.5 in to 3 in) |
| Power Consumption | 9 W max |
| Input Voltage | 30 V PoE |
| Antenna | |
| Integrated Antenna Peak Gain | 21 dBi |
| 3 dB Beamwidth - Azimuth | 12º |
| 3 dB Beamwidth - Elevation | 12º |
| Polarization | Slant, +/- 45 Degrees |
| Front-To-Back Isolation | > 30 dB |
| Cross Polarization | > 20 dB |
| Transmit Power Range(to EIRP limit by region) | 66 dB dynamic range |
| Maximum Transmit Power | 23 dBm |
| Certifications | |
| ISED Canada | TBD |
| FCC ID | Z8H89FT0060 |
| ETSI | TBD |
