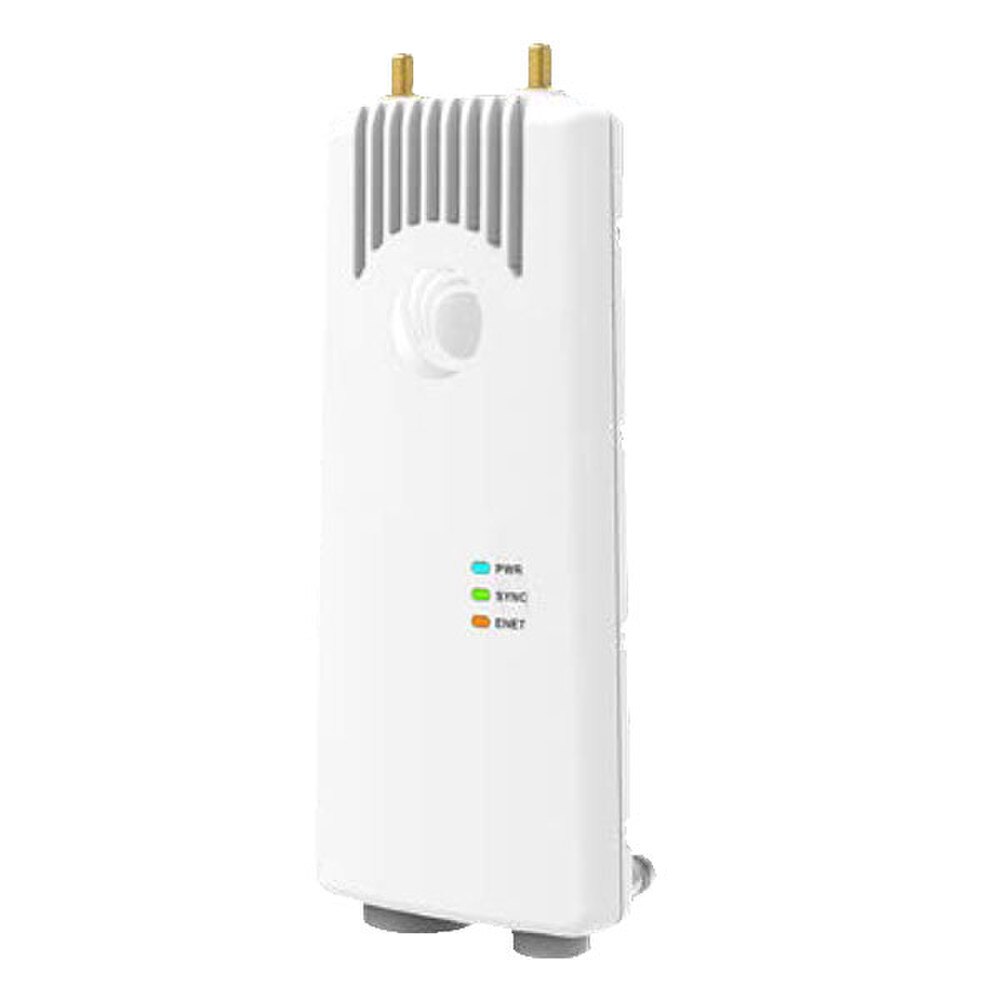

Cambium Networks 5GHz 450b Connectorized Radio (FCC)
- SKU: C050045B042A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C050045B042A
5 GHz 450b Connectorized Radio
The Cambium 5 GHz 450b Connectorized Radio platform increases performance and features include:
Features:
- Ultra-wide band radios: 4.9 GHz to 5.9 GHz
- Capable of up to 300 Mbps aggregate in a 40 MHz channel
- Can function as a Point-to-Point (PTP) link or as a Subscriber Module (SM)
Specifications
Specifications
| Spectrum | |
| Channel Spacing | Configurable on 2.5 MHz increments |
| Frequency Range | 4900 - 5925 MHz |
| Channel Width | 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz |
| Interface | |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000 BaseT, full duplex, rate auto negotiated, 802.3 compliant |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Security | |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point) |
| Performance | |
| PPS | 50,000 |
| ARQ | Yes |
| Ultimate Sensitivity | -94 dBm |
| Maximum Deployment Range | Up to 64 km (40 miles) in PMP mode, up to 200 km (124 miles) in PTP mode |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, synchronized by Access Point or via 3.5mm port using cnPulse (for PTP mode) |
| Quality of Service | Diffserve QoS |
| Physical | |
| Antenna Accessories | n/a |
| Surge Suppression | EN 61000-4-5: 10x700 μs, 4 kV, EN 61000-4-2: ESD 30 kV contact / 30 kV air |
| Mean Time Between Failure | > 40 Years |
| Environmental | IP67 |
| Wind Survival | 200 kph (124 mph) |
| Temperature / Humidity | -40°C to 60°C (-40°F to 140°F), 0–100% non-condensing |
| Weight | 0.9 kg (2 lbs.) including mounting bracket |
| Dimensions (HxWxD) | 24 x 4 x 9 cm (9.5 x 1.5 x 3.5 in) |
| Pole Diameter Range (w/ included mount) | 2.5 cm to 7.6 cm (1 in to 3 in) |
| Power Consumption | 9 W typical, 12 W peak |
| Input Voltage | 20–32 VDC |
| Link Budget | |
| Transmit Power Range | 54 dB dynamic range (to EIRP limit by region) (1 dB step) |
| Maximum Transmit Power | +27 dBm (MIMO, combined V+H) |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
