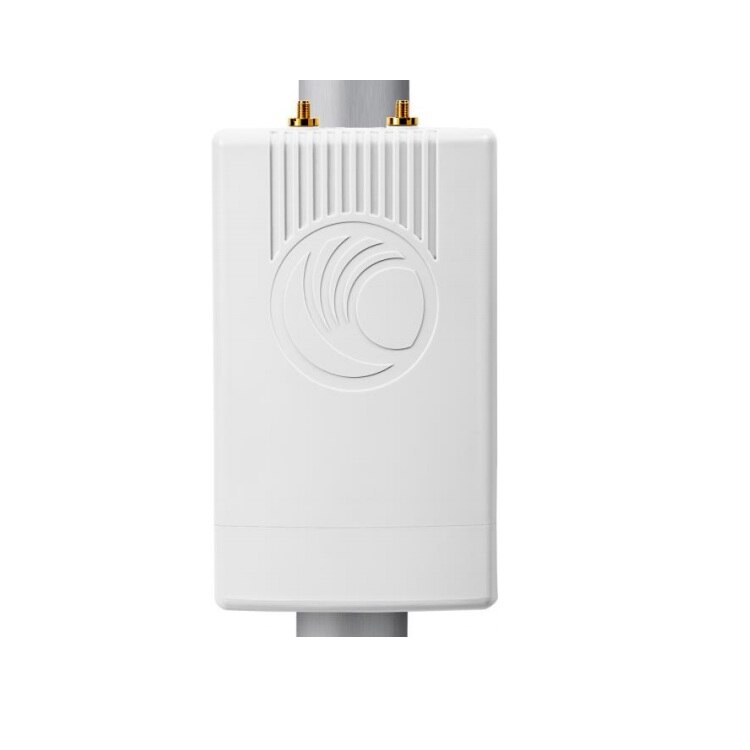

ePMP 2000: 5 GHz AP with Intelligent Filtering and Sync (IC) (US cord)
- SKU: C050900A132A
$1,005.49
+ $0.49 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ePMP 2000: 5 GHz AP with Intelligent Filtering and Sync (IC) (US cord)
Specifications
Specifications C050900A132A
| Access Point Frequency Range | 5150 - 5970 MHz |
| Antenna | The kit is not included. This AP is compatible with any MIMO 2x2 sector antenna. |
| Connectors for connecting a sector antenna | 2 x RP SMA (50 Ohm) |
| Connectors for beamforming antenna connection | 2 x RP SMA (50 Ohm) * DC power supply is also used for them, since the BF-antenna is active |
| Connector for connecting a GPS antenna | 1 x RP SMA (50 Ohm) |
| ePMP 2000 Smart (Beamforming) antenna | The kit is not included. Is optional / optional to the sector, (does not replace it) |
| Supported power modes TD | 56V PoE (included), PoE 802.3at. |
| Number of subscribers per sector | up to 120 (in the Lite version of ePMP 2000 - 10) |
| Channel width | 5 | 10 | 20 | 40 MHz |
| The protocol of the channel layer of the radio module (MAC layer) | Cambium Proprietary, optional 802.11n |
| The standard of the physical layer of the radio module (Physical Layer) | 2x2 MIMO / OFDM |
| Ethernet interface | 100/1000 BaseT, compatible with standard PoE 802.3at |
| Supported Network Protocols | IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping, LLDP, DHCP, RADIUS, NTP |
| Network Management protocols | HTTPs, SNMPv2c, SSH, Cambium Networks cn Maestro |
| VLAN support | 802.1Q and 802.1p priority |
| Adaptive Modulation Levels | From BPSK to 64QAM 5/6 |
| Quality of Service - QoS Support | Three priority levels (Voice, High, Low), classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
| Transmit Power Range | from 0 to +30 dBm (1 dB - interval) |
| Level of protection from the environment | IP55 |
| Temperature range | -30 ° C to + 55 ° C |
| The weight | 0.7 kg (5.1 lb) |
| Resistance to wind loads | 145 km / h |
| Dimensions (L x W x H) | 22.2 cm x 12.4 cm x 4.5 cm |
| Fastened to the rack (mast) | in the set |
| Power Consumption | 20 W - maximum (even when using a beamforming antenna) |
| Range of supply voltages | 44 to 59 V |
| Data Protection (Encryption) | 128-bit AES (CCMP mode) |
