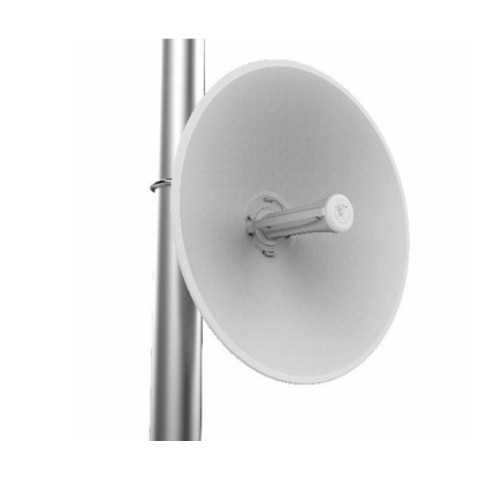

Cambium Networks ePMP 5GHz Force 300-25 High Gain Radio (IC) (Canada/US cord)
- SKU: C050910C104A
$334.54
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ePMP 5 GHz Force 300-25 High Gain Radio (IC) (Canada/US cord)
Specifications
Specifications C050910C104A
| SPECTRUM | |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 5.150 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| Channel Width | 20 | 40 | 80 MHz |
| INTERFACE | |
| MAC (Media Access Control) Layer | Cambium |
| Proprietary Physical Layer | 2x2 MIMO/OFDM |
| Ethernet Interfaced | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv6/IPv4 Management, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPs, SNMPv2c, SSH |
| VLAN 802.1Q with | 802.1p priority |
| PERFORMANCE | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS0 = -87 dBm to MCS8 (256 QAM-3/4) = -63 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS0 = -85 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS0 = -82 dBm to MCS9 (256QAM-5/6) = -56 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS0 (BPSK) to MCS9 (256QAM 5/6) |
| Transmit Power Range | 0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval) |
| PHYSICAL | |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -22°F to +140°F (-30°C to +60°C) |
| Weight | 2.4 kg (5.3 lbs) |
| Wind Survival | 180 km/hour (112 mi/hour) |
| Dimensions (Dia x Depth) | 47 cm x 31 cm (18.5 in x 12.2 in) |
| Pole Diameter Range | 6.4 cm – 7.6 cm (2.5 in – 3 in) |
| Power Consumption | 12 Watts |
| Input Voltage | 30 Volts |
| SECURITY | |
| Encryption | 128-bit AES (CCMP mode) |
| CERTIFICATIONS | |
| FCCID | TBD |
| Industry Canada Cert | TBD |
| CE | TBD |
