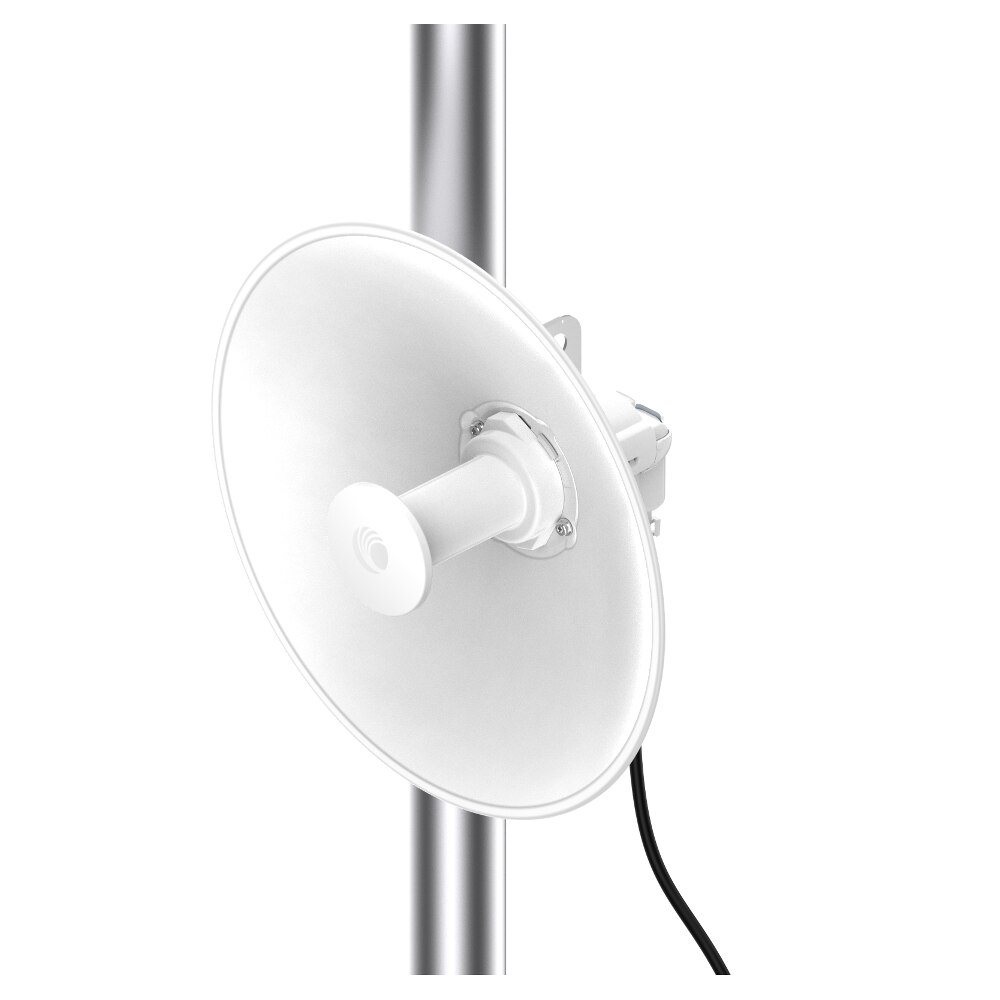

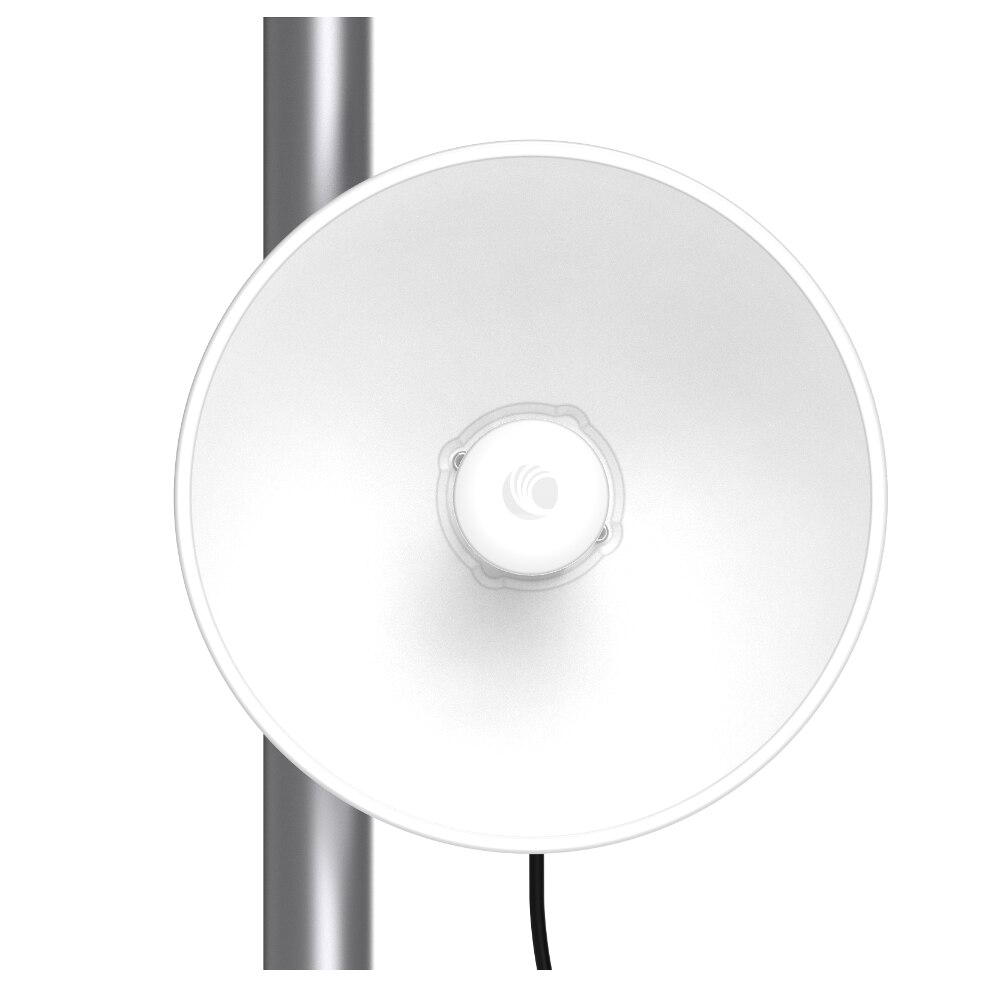

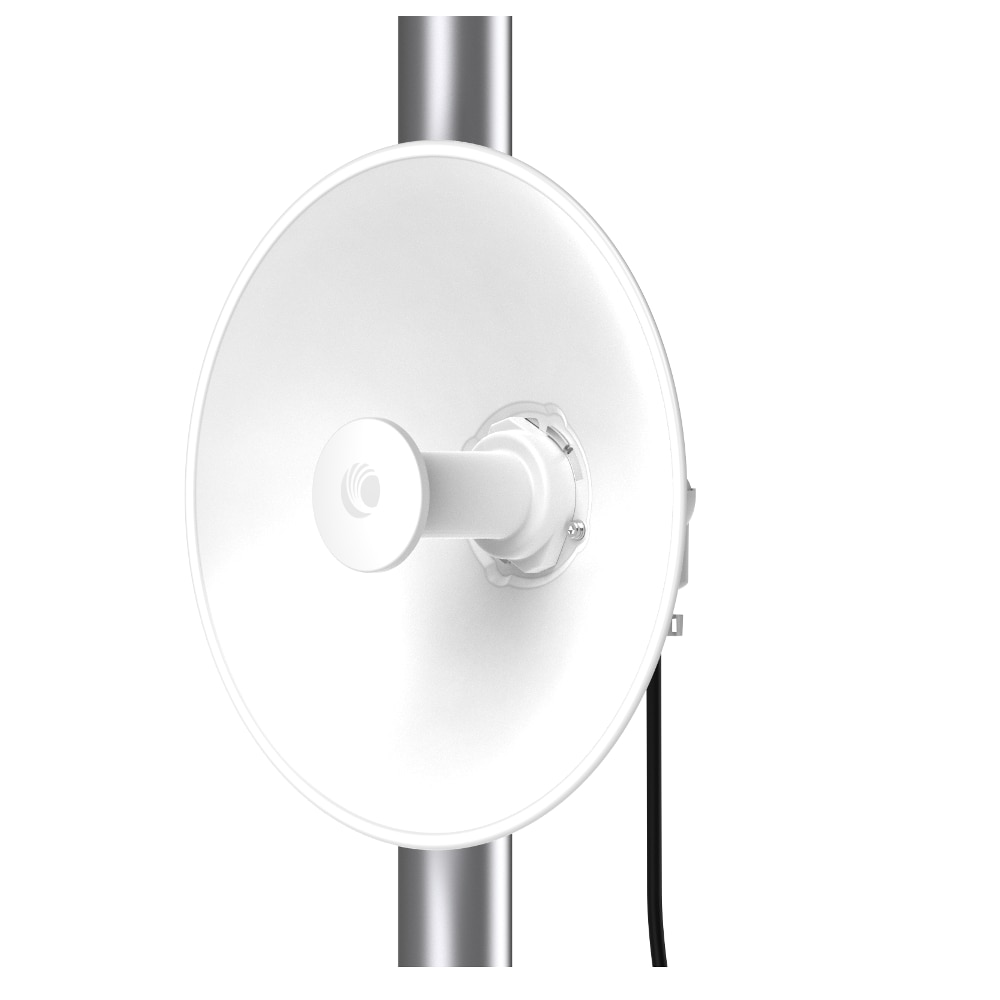

Cambium Networks ePMP 5GHz Force 4525 SM 4-Pack
- SKU: C058940M144A
$375.84
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4500 series of subscriber modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint and point-to-point deployments.
Product Features- High capacity and latencies less than 5 ms when using ePTP technology
- Proven air interface on top of 802.11ax technology
- Interoperability with the ePMP 4500 which uses MU-MIMO to achieve more than 4 Gbps per sector by transmitting to two ePMP 4500 SM’s simultaneously.
- 1024QAM and an integrated 25dBi dish antenna
- Multiple levels of QoS (Quality of Service) for voice, video and data applications supporting a wide variety of service packages for both residential and enterprise users
- Security features meeting the requirements of enterprise, industrial, government and service provider users
- Management by Cambium Networks cnMaestro element management system for easy provisioning, monitoring and upgrades
- Network planning with LINKPlanner and cnHeat
- 3-year hardware warranty and support from Cambium Networks

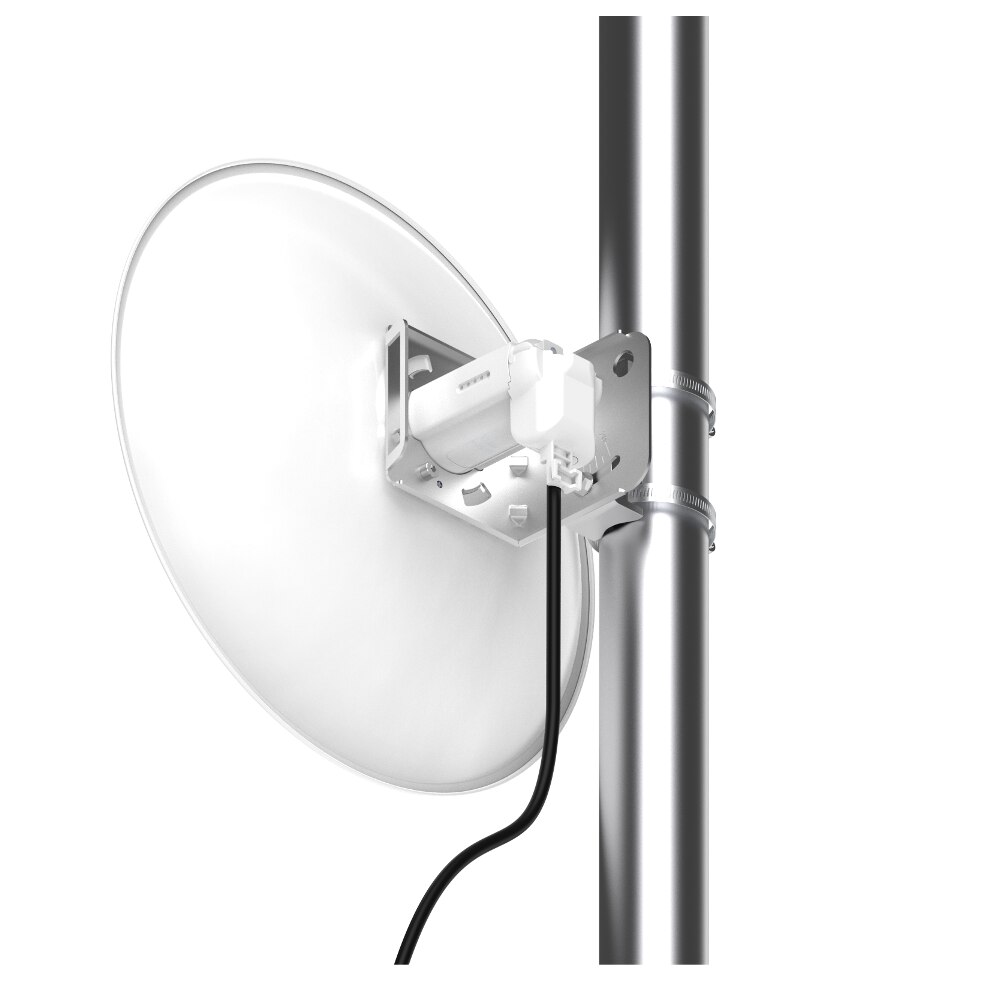

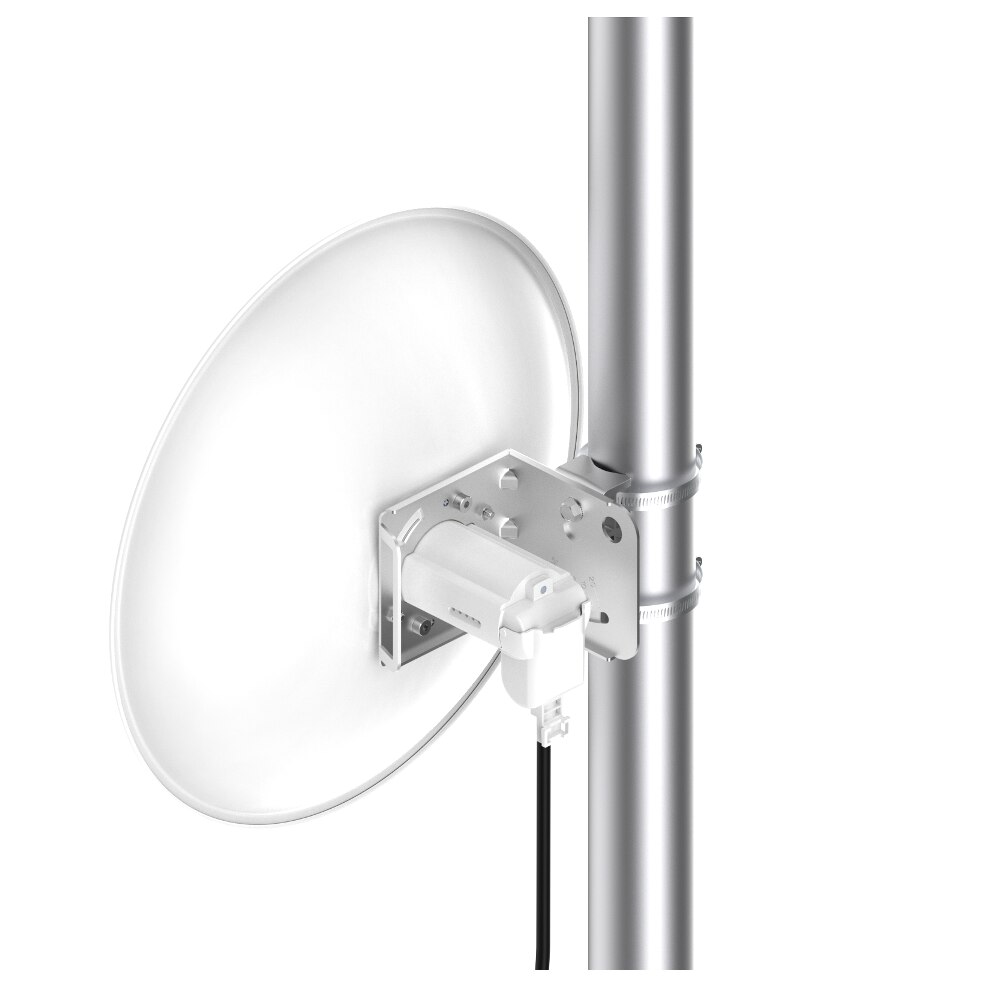

- Each SM comes with a Power over Ethernet injector and pole mount hardware included
Specifications
Specifications C058940M144A Single price sold in 4 packs
| Channel Width MHz | 20 | 40 | 80 MHz |
| Proprietary Physical Layer | Air Interface on top of 802.11ax technology (2x2 MIMO/OFDMA) |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 5150–5920 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) Operation under AFC (Automatic frequency coordination) control in FCC jurisdictions. |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™ |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -91 dBm to MCS 11 (1024 QAM-5/6) = -59 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -88 dBm to MCS 11 (1024 QAM-5/6) = -56 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -85 dBm to MCS 11 (1024 QAM-5/6) = -53 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| QoS (Quality of Service) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* support |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Weight | 2.76 Kg (6.1 lbs) |
| Wind Survival | 200 km/hour (124 mi/hour) |
| Dimensions (Dia x Depth) | 472 x 472 x 296 mm (18.5 x 18.5 x 11.7 in) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 inches) |
| Power Consumption | 13W (Up to 15W in extreme cold temperatures when heater is activated) |
| Input Voltage | Passive PoE 27–59V |
| Security | |
| Encryption | All models: 128-bit AES (CCMP mode), 256-bit AES optional where allowed |
| Certifications | |
| Force 4525 | |
| FCCID | Z8H89FT0074 |
| FCC Regulatory Part # | C058940P142A |
| ETSI Regulatory Part # | C058940P142A |
| Industry Canada Cert | 109W-0074 |
| CE | See Cambium Website for Declaration of Conformity |
