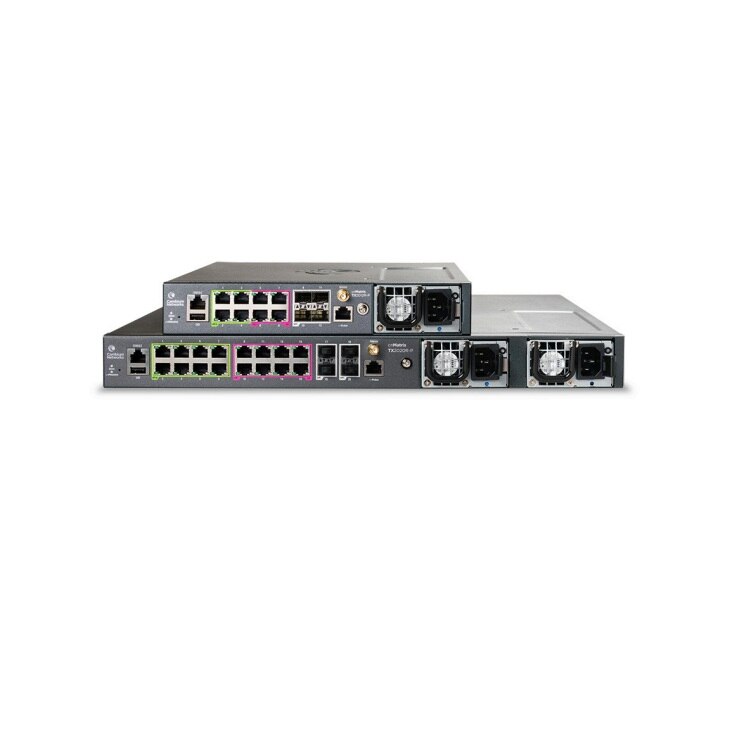

Cambium Networks cnMatrix TX2012R-P Intelligent Ethernet PoE Switch US
- SKU: MXTX2012GxPA11
$2,743.93
+ $98.60 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix platform of switches provides- Full Line Rate, non-blocking architecture
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices • Unified Wired-Wireless access solution
- Cambium Sync
- Comprehensive/Intelligent PoE solution
- Dual redundant removable power supplies AC supplies
- DC supplies
- All interfaces located on front panel
- Power Cord
Specifications
Specifications MXTX2012GxPA11
| Throughput | 104 Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| 10/100/1000 Mbps RJ45 Ports | 8 |
| 10 Gbps Fiber Ports (SFP+) | 4 |
| Serial Console | Yes |
| USB | Yes |
| Internal Fans | 2 |
| Flash Storage | 128 MB |
| DRAM | 512 MB |
| Cambium Sync (via RJ45 ports) | 8 |
| External Antenna Port (GPS) | Yes |
| cnPulse Port | Yes |
| Removable Power Supply Ports (CRPS) | 1 |
| Power Supply | CRPS dependent |
| Max Switch Power Consumption (WITH TRAFFIC) | 38.88W |
| MTBF (hours) | 393648 |
| Unit Weight | 6 lbs |
| Unit Dimensions (H x L x W) | 4.4 x 25 x 26 cm (1.73 x 9.84 x 10.24 in) |
| CPU Speed | 800 MHz |
| LEDs per port | Link/Activity, PoE |
| PoE Power Budget | CRPS dependent (see Datasheet) |
| 802.3af/at/bt PoE (54V) | Ports 1–8 |
| 24V Passive PoE - up to 15W | Ports 5–8 |
| 54V Passive PoE - up to 90W | Ports 1–4 |
| 54V Passive PoE - up to 30W | Ports 5–8 |
| PoE Max Power Per Port | 30W/90W |
| Rack Mount Kit | Not Included (optional accessory) |
| Wall Mountable | Not Included (optional Accessory) |
| Temperature Ranges | -10°C up to 65°C |
| Operating Humidity | 55°C at 95% RH |
| Storage Temperature | -40°C to 70°C |
