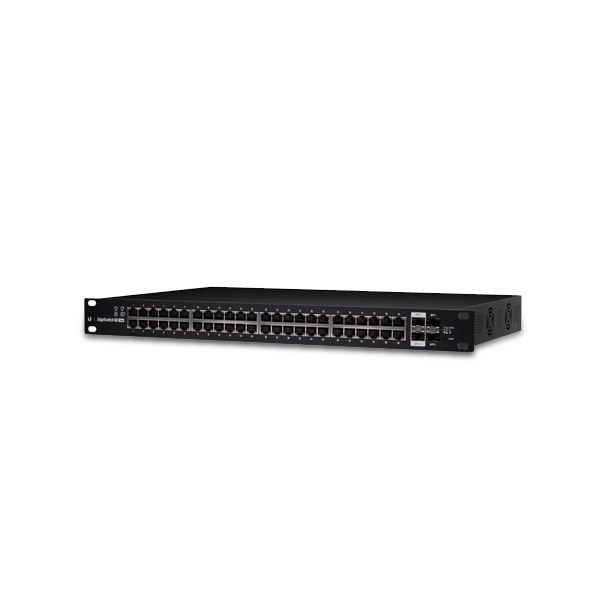

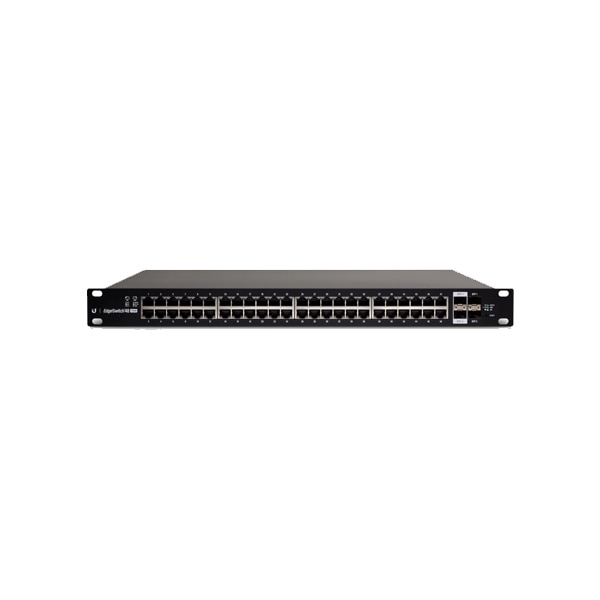

Edgeswitch 48 RJ45 Gigabit Ports, Power of Ethernet Plus Support 750W Maximum Power Consumption, 70gbps Total Non-Blocking Throughput, Rack mountable, 2 SFP Ports
- SKU: ES-48-750W
$1,513.18
Product Information
Ubiquiti Networks Edgeswitch 48 RJ45 Gigabit Ports, Power of Ethernet Plus Support 750W Maximum Power Consumption, 70gbps Total Non-Blocking Throughput, Rack mountable, 2 SFP Ports
Specifications
Specifications ES-48-750W
| Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") |
| Weight | 6.5 kg (14.3 lb) |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Max. Power Consumption | Includes PoE Output 750W, Excludes PoE Output 64W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 750WDC |
| LEDs Per Port | SFP+/SFP Data Ports-Speed/Link/Activity |
| Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
