Infinite Cables BK-C6SL-4DBS
- SKU: BK-C6SL-4DBS
$350.50
- Manufacturer: Infinite Cables
- Spec Sheet: Download
Product Information

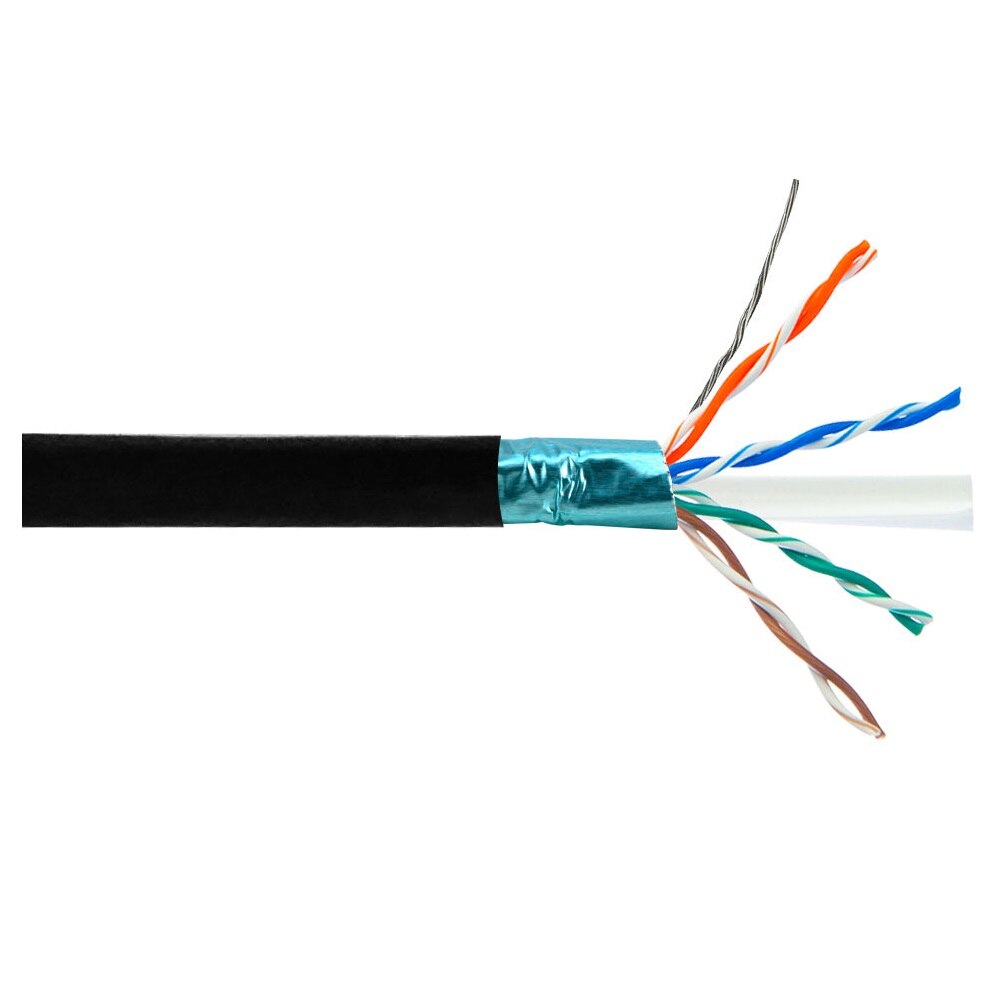

1000ft 4 Pair CAT6 550Mhz FTP Solid UV / Direct Burial Bulk Cable - Black
Specifications
Specifications
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 8.00±0.10mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 23AWG Solid |
| Conductor Material | 100% Bare Copper |
| Jacket Material | LLDPE |
| Jacket Rating | Direct Burial / UV |
| Cable Shielding | 100% Aluminum Foil Shield |
| Temperature Rating | -40°C ~ +75°C |
| Jacket Average Thickness | 0.65mm |
| Jacket Minimum Thickness | 0.58mm |
| Insulation | PE |
| Insulation Average Thickness | 0.218mm |
| Insulation Minimum Thickness | 0.198mm |
| Insulation Diameter | 1.02±0.01mm |
| Assembly Diameter | 6.60±0.20mm |
| Twisted Pair Diameter | 2.04±0.02mm |
| Rip Cord | Yes - Nylon |
| Separator | Polyolefin |
| Drain Wire (mm) | 2.04±0.02 |
| Electrical | |
| Before Aging | Tensile Strength (Mpa): >=10.6 Elongation (%): >=300 |
| Aging Condition(ºC x hrs) | 100x168 |
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
| Environmental | |
| RoHS | Yes |
| Package Quantity | 1 |
| Product Weight | 43.02 lbs [19.5kg] |
