Product Information

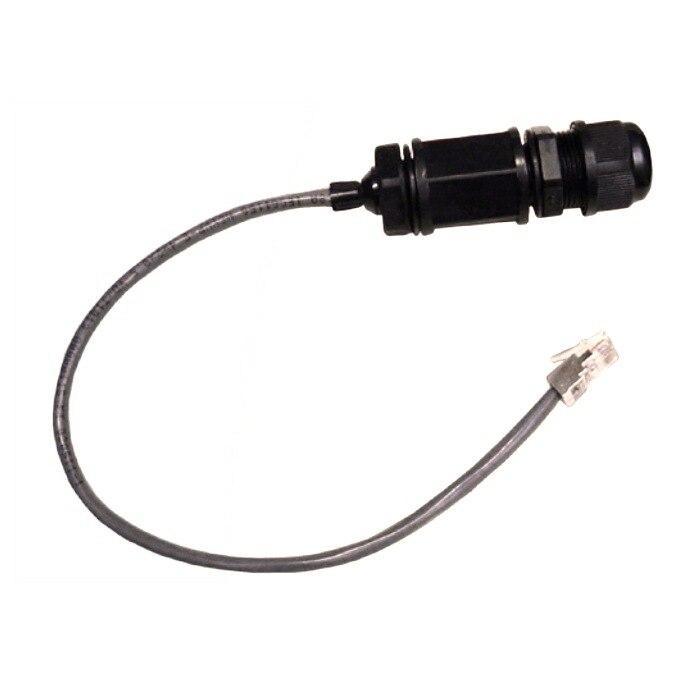

Laird RJ45,ECS,6in,
Specifications
Specifications RJ45-ECS-6-NR
| Data | 10BaseT, 100BaseT and 1000BaseT Networks CAT5e per TIA/EIA 568B ClassD per ISO/IEC 11801 |
| Mechanical | Mating Cycles >500 Positive RJ45 bayonet coupling Cat5 Cable Strain Relief |
| Material | UV Resistant Nylon 66 |
| Sealing | IP67 |
| Salt Spray | >1000h |
| Flammability | UL94VO |
| Thermal Shock | 10 cycles -40 to +100°C |
| Temperature Range | -40°C to +85°C |
| Installation Hole Dia | 0.787 in (20 mm) |
| Overall Size (L x Dia) | 3.75 in x 1.18 in (95 x 30 mm) |
| Weight | 2 oz (57 gm) |
