LightSaber Optics OLF-2214030
- SKU: OLF-2214030
$3.11
- Manufacturer: ISP Supplies
- Data Sheet: Download
Product Information

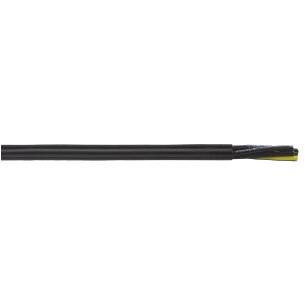

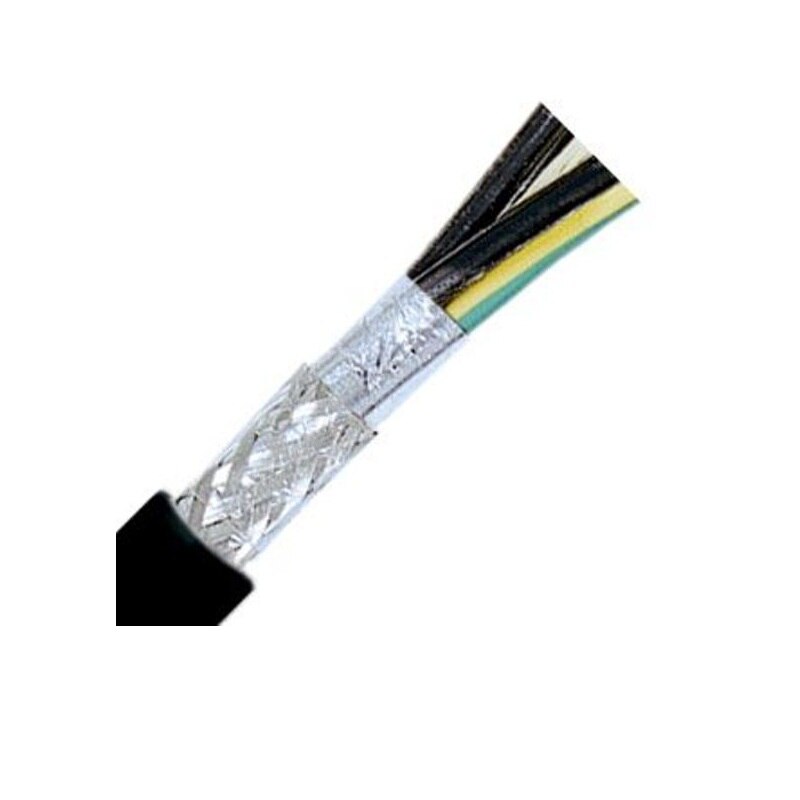

Extremely Oil-Resistant & Flexible Tray Cable
Specifications
Specifications OLF-2214030
| SERIES | ÖLFLEX® TRAY II CY |
| CONDUCTOR MATERIAL | Bare copper |
| SHIELDING | Braid |
| NOMINAL OD (IN) | 0.387 |
| VOLTAGE | 600V |
| STATIC TEMPERATURE RATING | -40°F to +221°F -40°C to +105°C |
| MANUFACTURER PART NUMBER | 2214030 |
| UL STYLE / STANDARD | UL 13 UL 1063 UL 1277 UL 1690 UL 2250 |
| AWG/GAUGE | 14 |
| CONDUCTOR COLOR | Black with white printing plus green/yellow ground |
| JACKET COLOR | Black |
| NOMINAL OD (MM) | 9.8 |
| TEMPERATURE RANGE | -13°F to +194°F -25°C to +90°C |
| APPLICATION | Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used |
| WEIGHT | 121 lbs/Mft |
| ATTRIBUTES | UL Oil Res I/II Sunlight resistant Direct burial NFPA 79 |
| NUMBER OF CONDUCTORS | 3 |
| CONDUCTOR STRANDING | Stranded |
| JACKET MATERIAL | Thermoplastic Polymer |
| INSULATION | PVC/Nylon |
| DYNAMIC TEMPERATURE RATING | -13°F to +221°F -25°C to +105°C |
| STANDARDS/APPROVALS | UL Approved CSA Approved CE Approved |
| MANUFACTURER | LAPP |
