Product Information

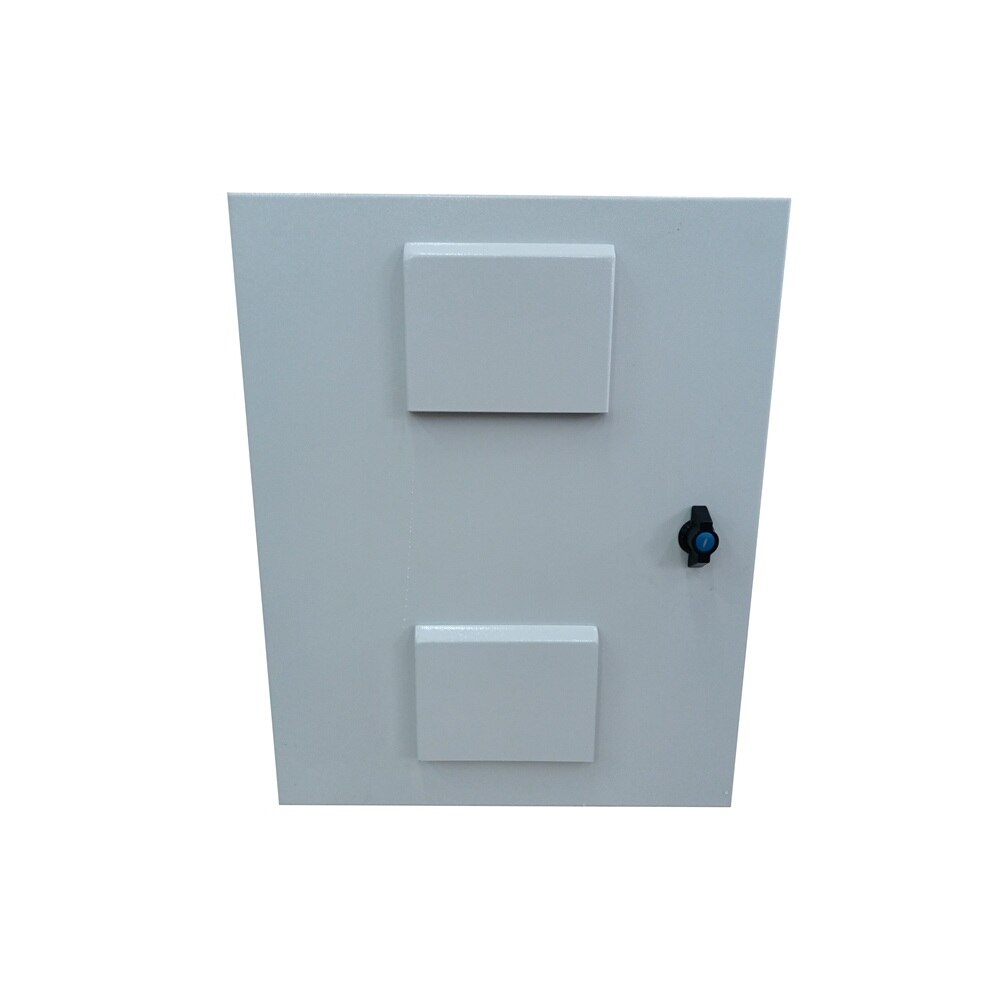

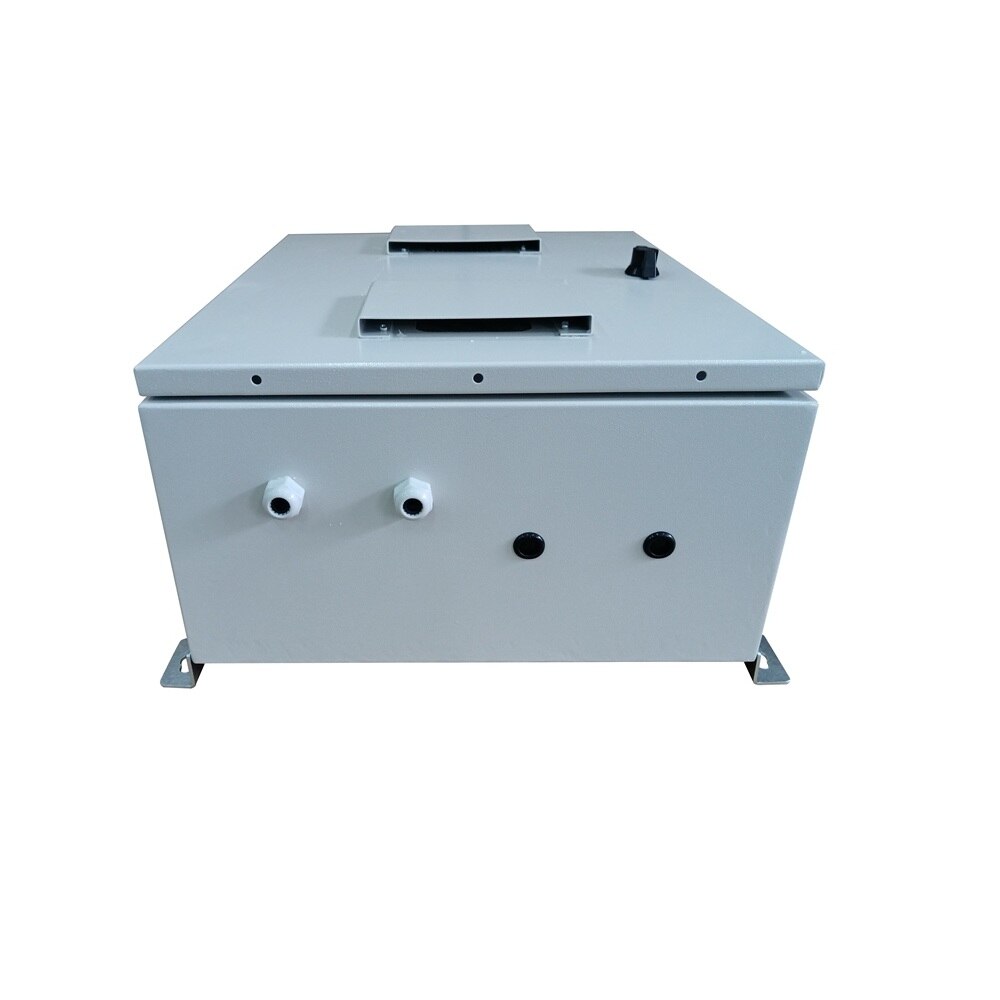

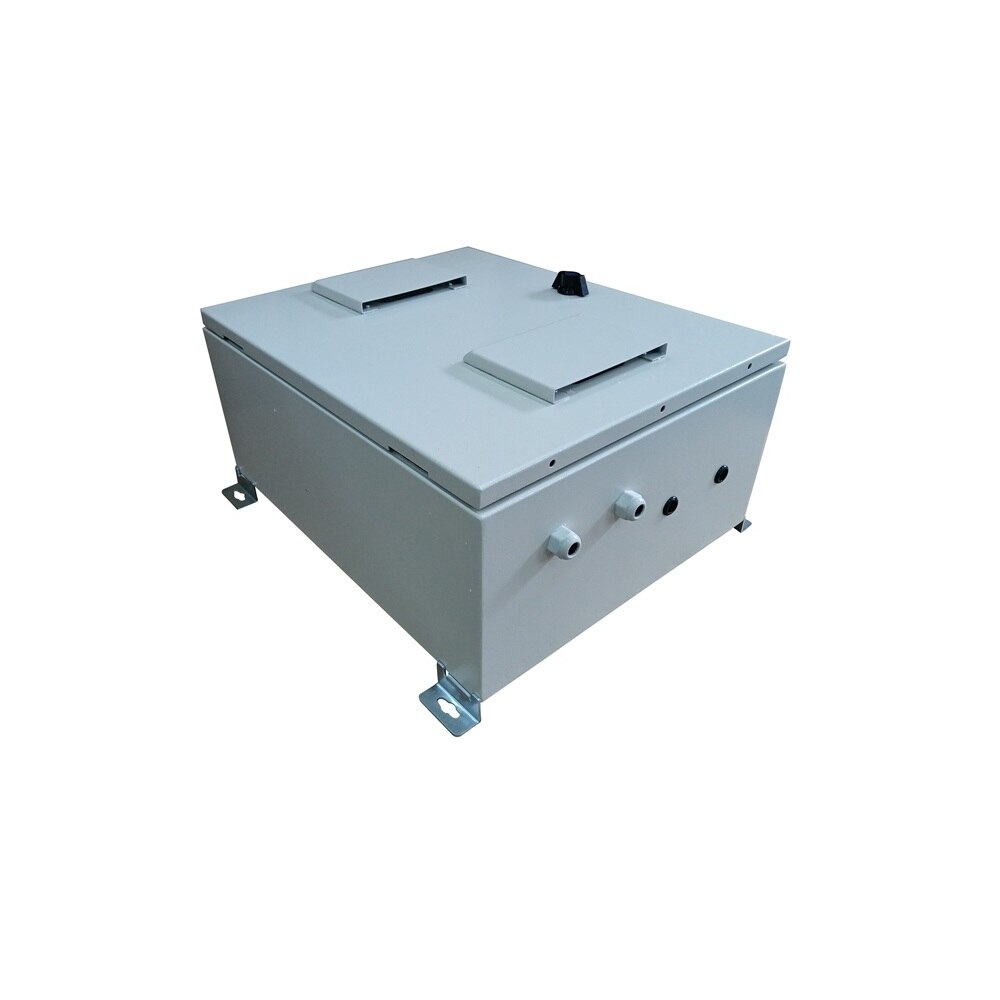

Light Saber 20“x16"x8" industrial NEMA enclosure with cooling fans, IP55Rated|Grey
Specifications
Specifications LSO-OD-201608
| Physical | |
| Model name | LSO-OD-201608 |
| Protection Class | IP55 |

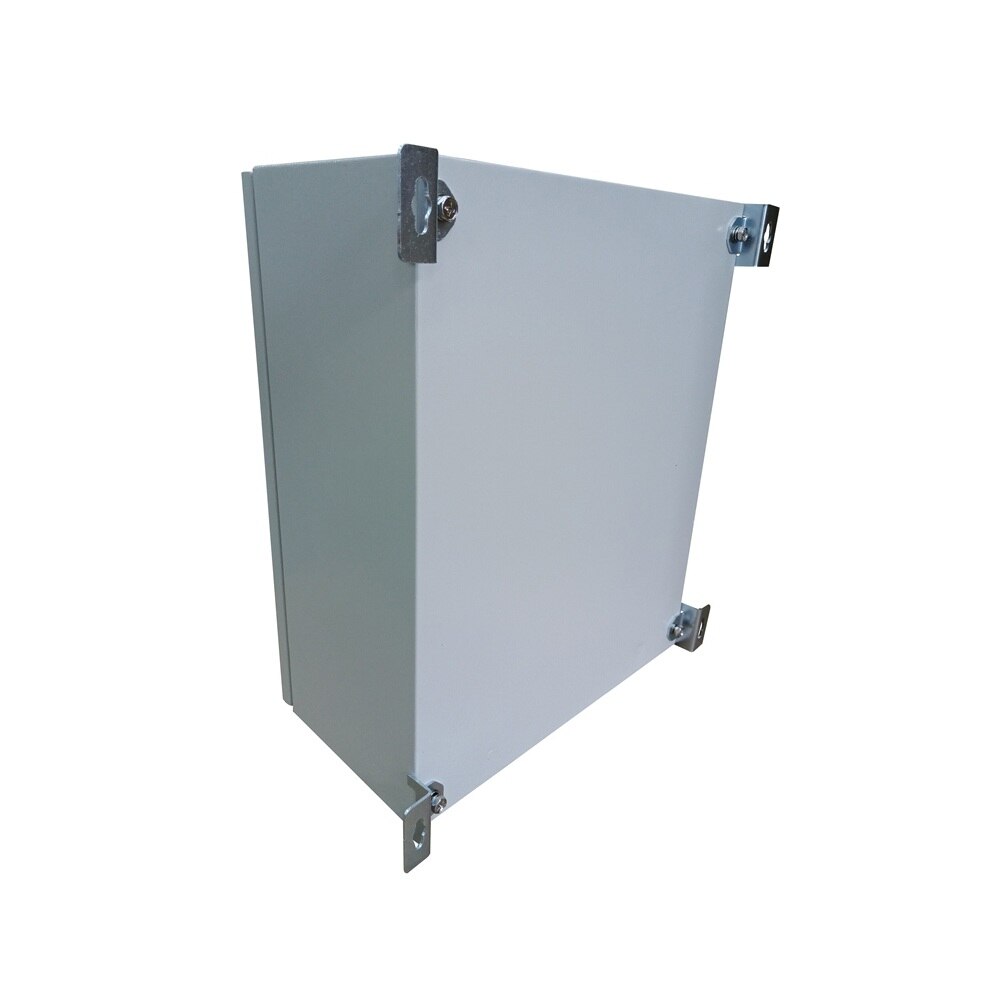

| Cabinet Type | Pole-Mount with U Bolt (or hose clamps) or Wall-Mount |
| Color | Grey RAL7035 |
| Material | Cold-rolled Steel |
| Unit Dimension(WxDxH) | 15.94 x 8.66 x 19.68 inches (without lock and mounting bracket) |
| Unit Weight(lbs.) | 29.75 |
| Internal Depth (Front door to Back Mounting Plate | 7 inches |
| Rail to Rail Depth | N/A |
| Shipping Dimension(WxDxH) | 17.72 x 11.02 x 222.05 inches |
| Shipping Weight(lbs.) | 31.96 |
| Electrical | |

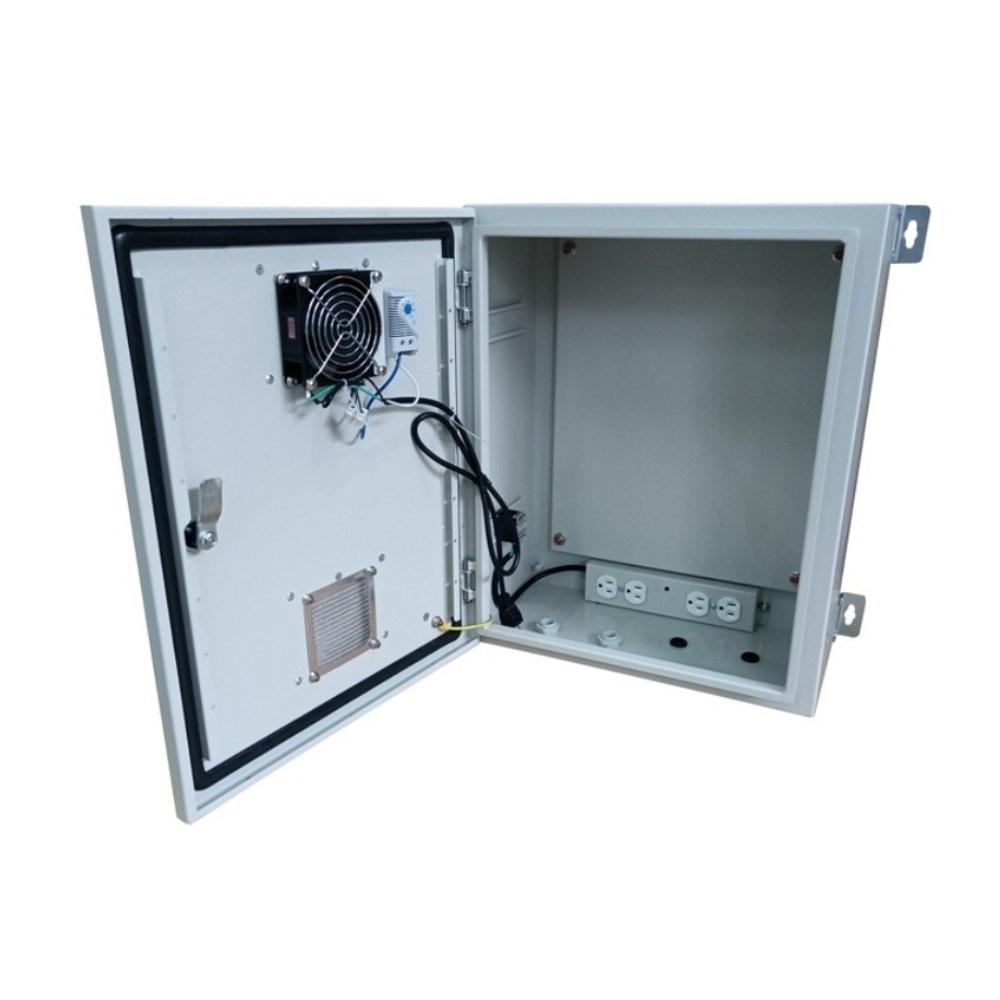

| Cooling | AC110V Cooling Fan x 1 (with tem. Controller) |
| Grounding | Grounding Wire |

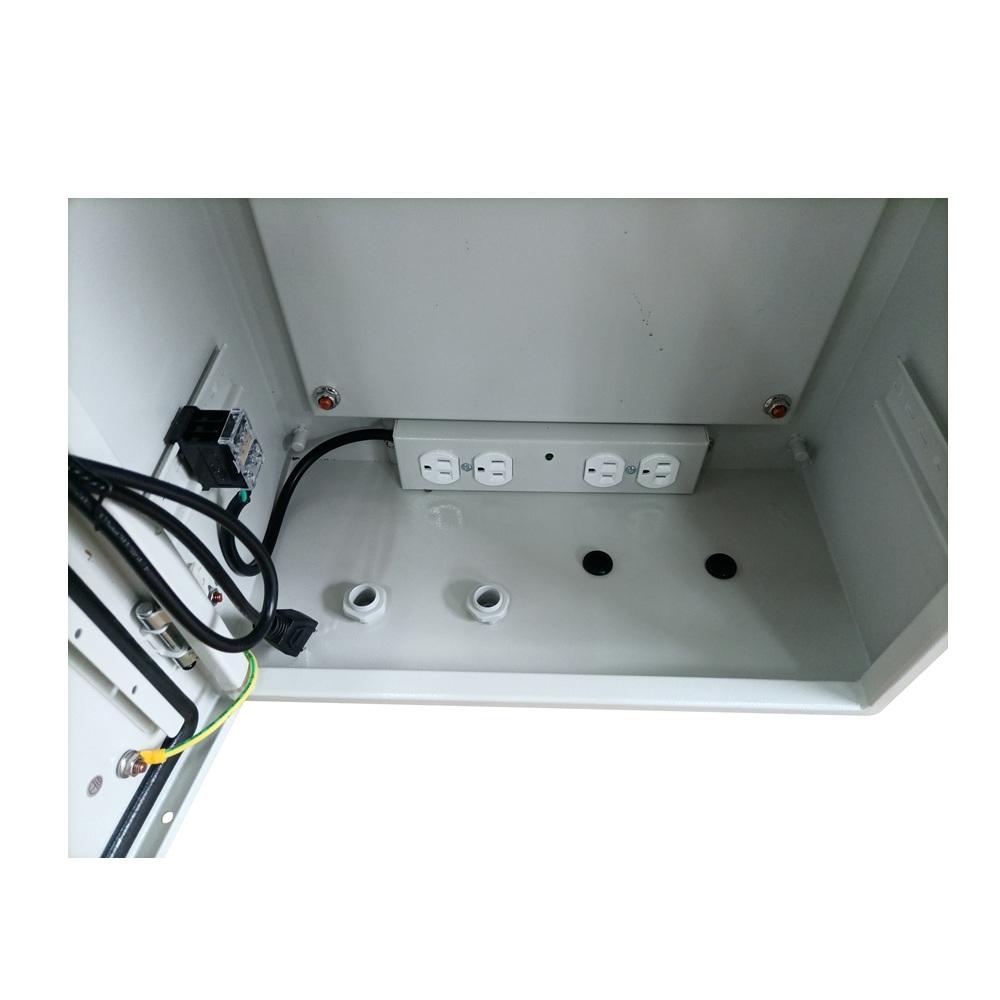

| Power sockets | 4 x 120VAC 15A outlets(surge protected,with cable terminals,0.5 meter) |
| Other | N/A |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
