Product Information

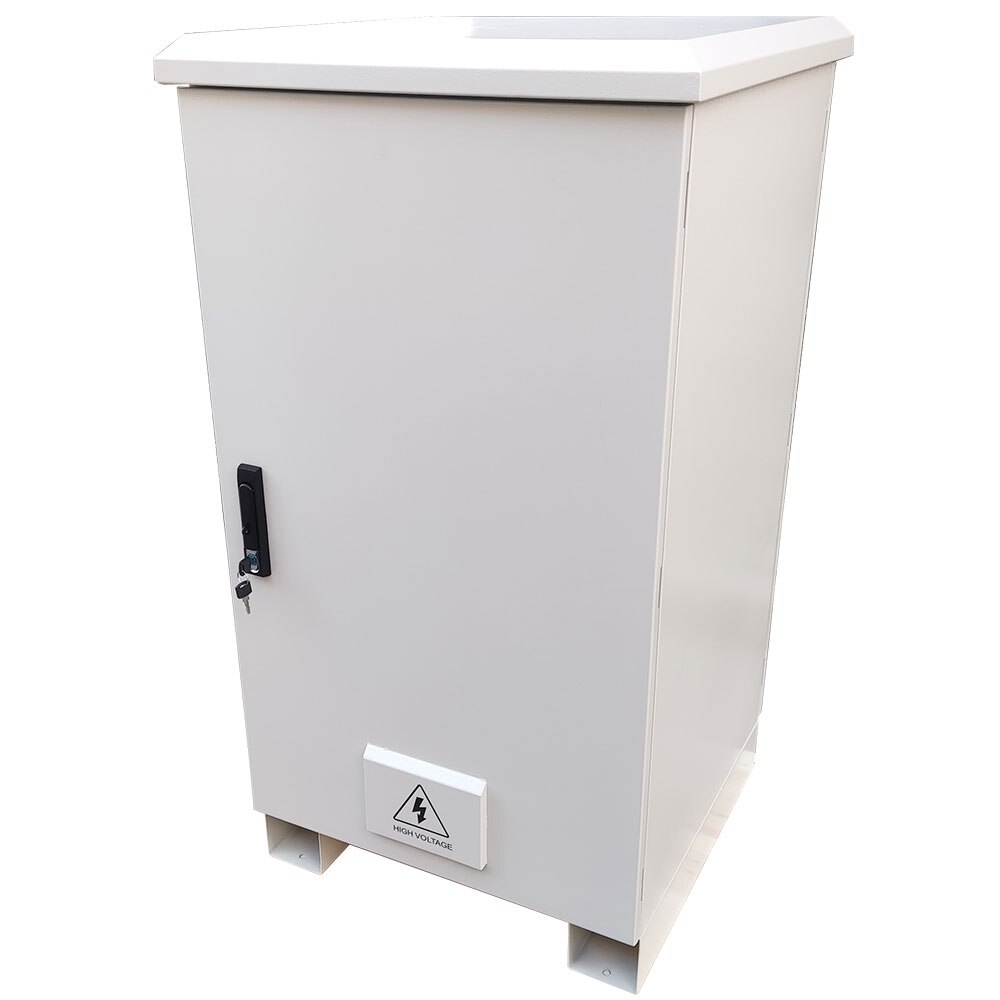

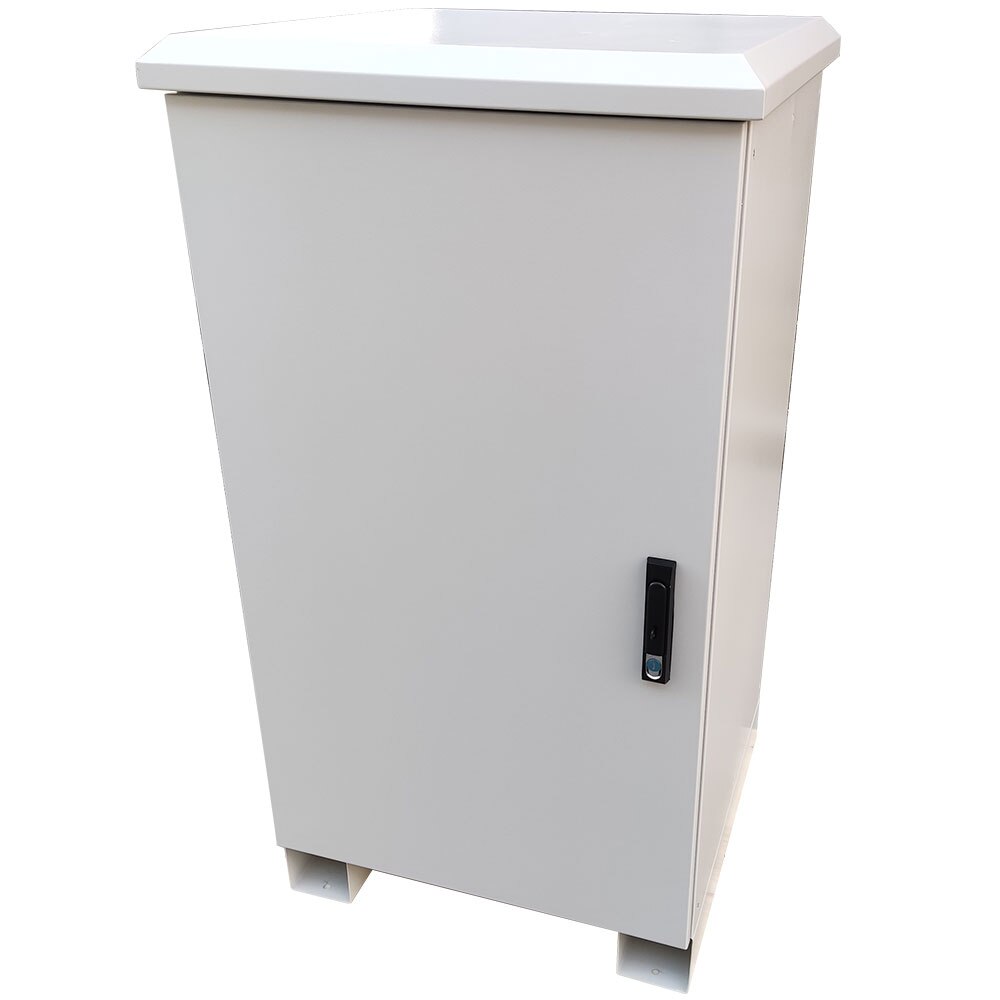

12RU 600mm Wide x600mm Deep OUTDOOR Floor MountCabinet(with 15.6" battery space), NEMA 4X Rated|Grey
Specifications
Specifications LSO-12UOD-600600BAT15
| Physical | |
| Protection Class | NEMA 4X |
| Rack Unit Size | 12U |

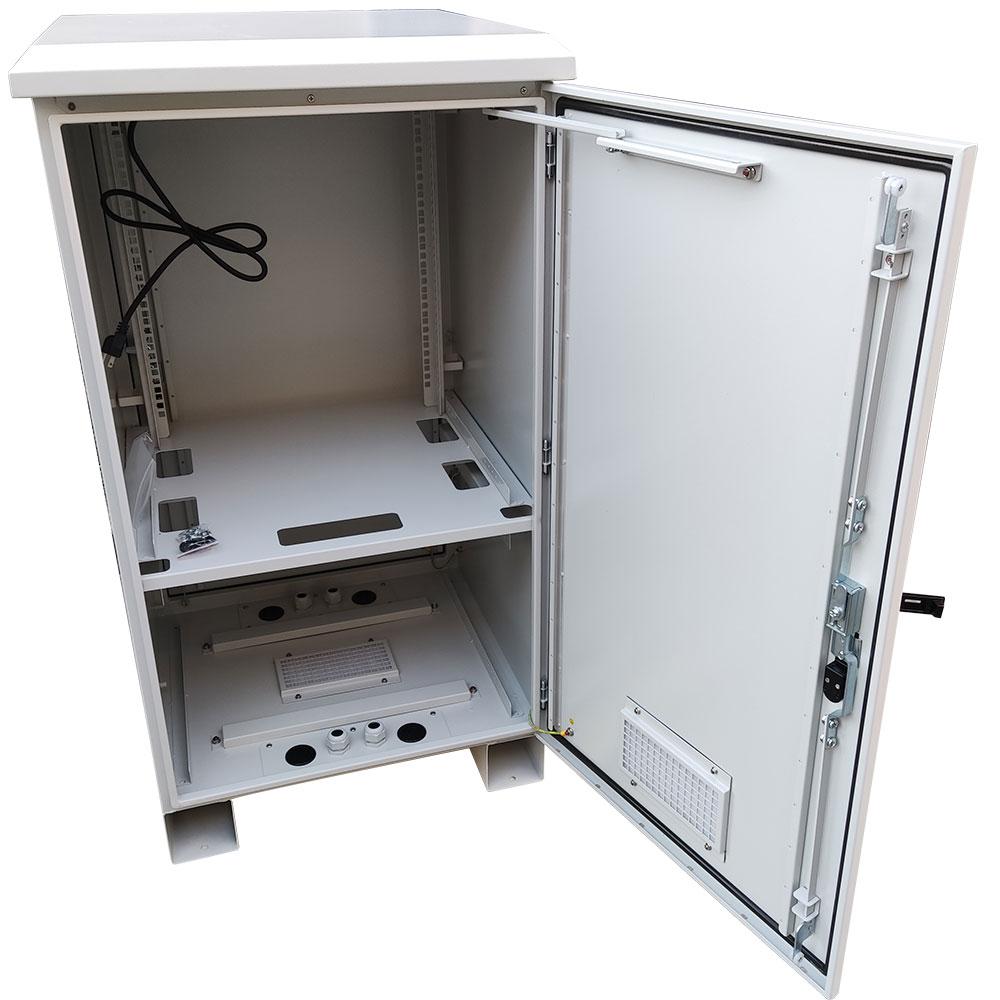

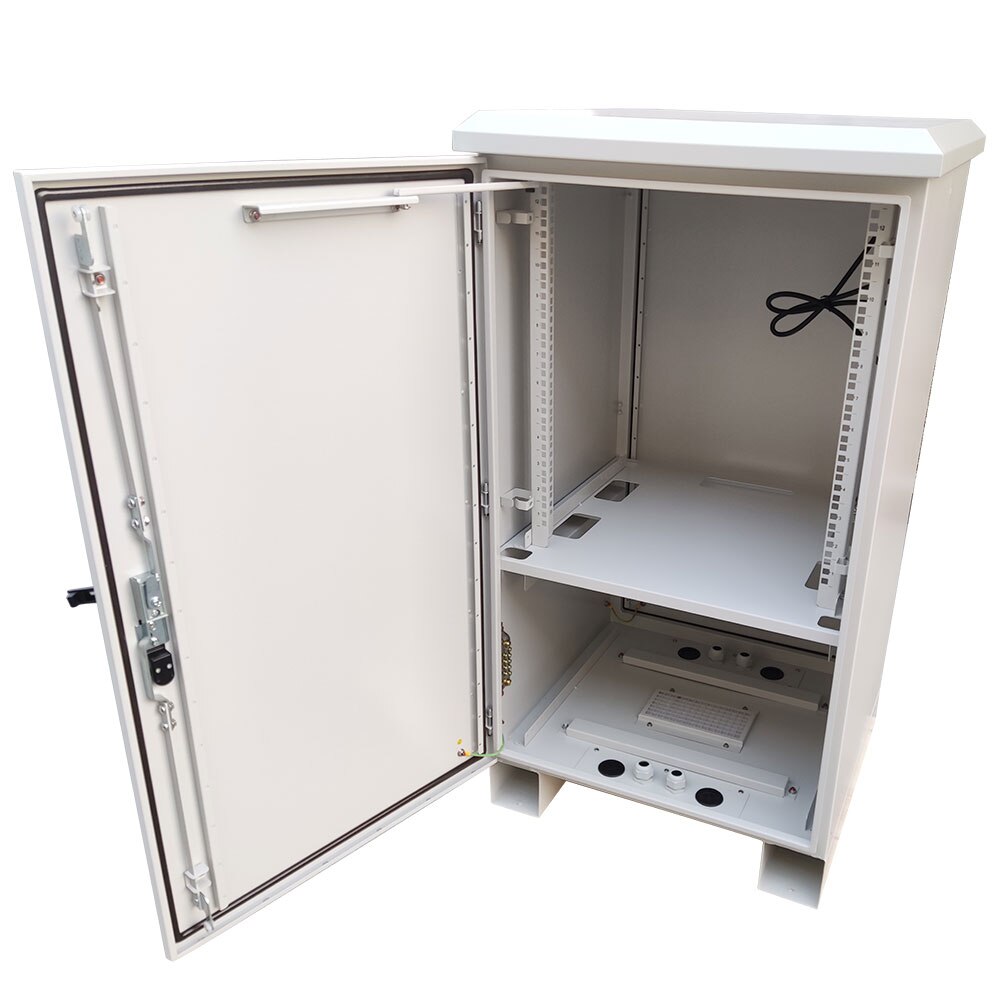

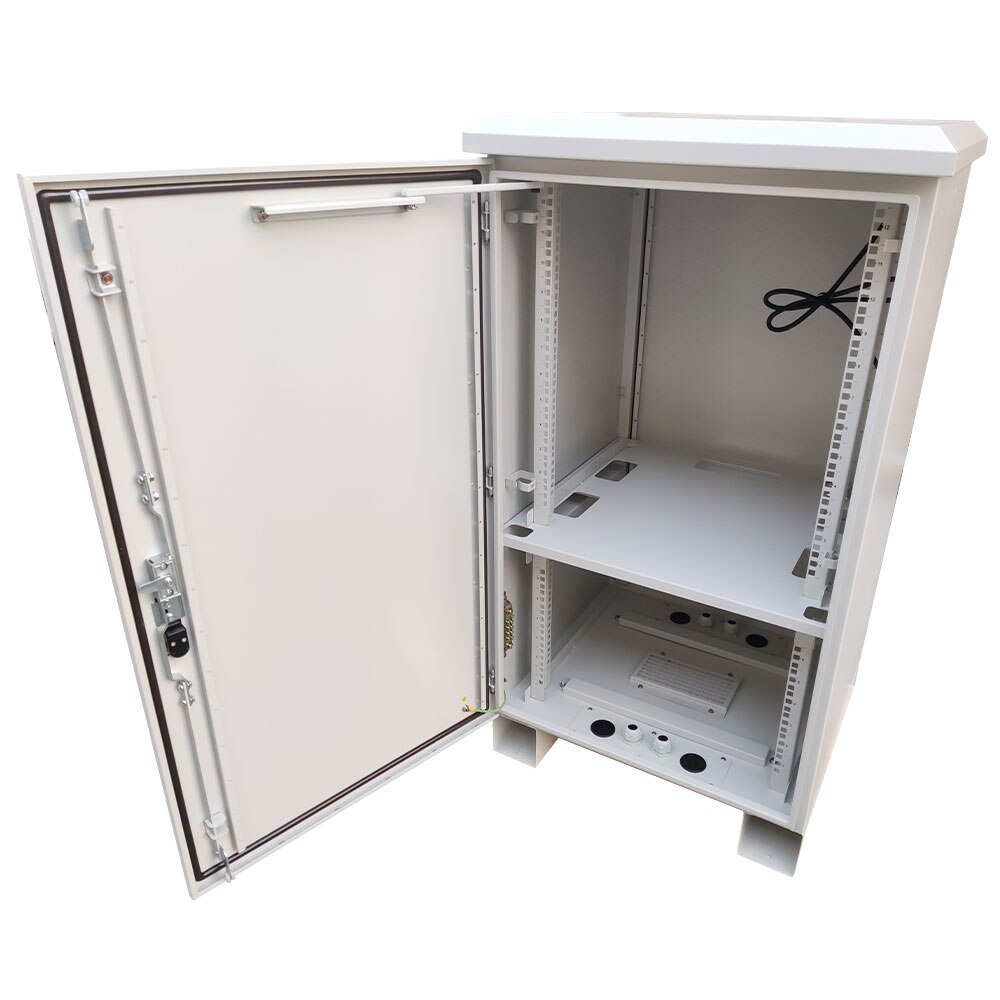

| Battery Space Size | 6U (15.6inch) |
| Cabinet Type | Floor Mount |
| Color | Grey RAL7035 |
| Material | Cold-rolled Steel |
| Unit Dimension(WxDxH) | 23.62 x 23.62 x 45.82 inches (with 4inch height floor mount feet) |
| Unit Weight(lbs.) | 149.87 |
| Internal Depth (Front Rail to Back Door) | 19.97 inches |
| Rail to Rail Depth | 17.86 inches |
| Shipping Dimension(WxDxH) | 26.77 x 26.77 x 51.18 inches |
| Shipping Weight(lbs.) | 169.71 |
| Electrical | |

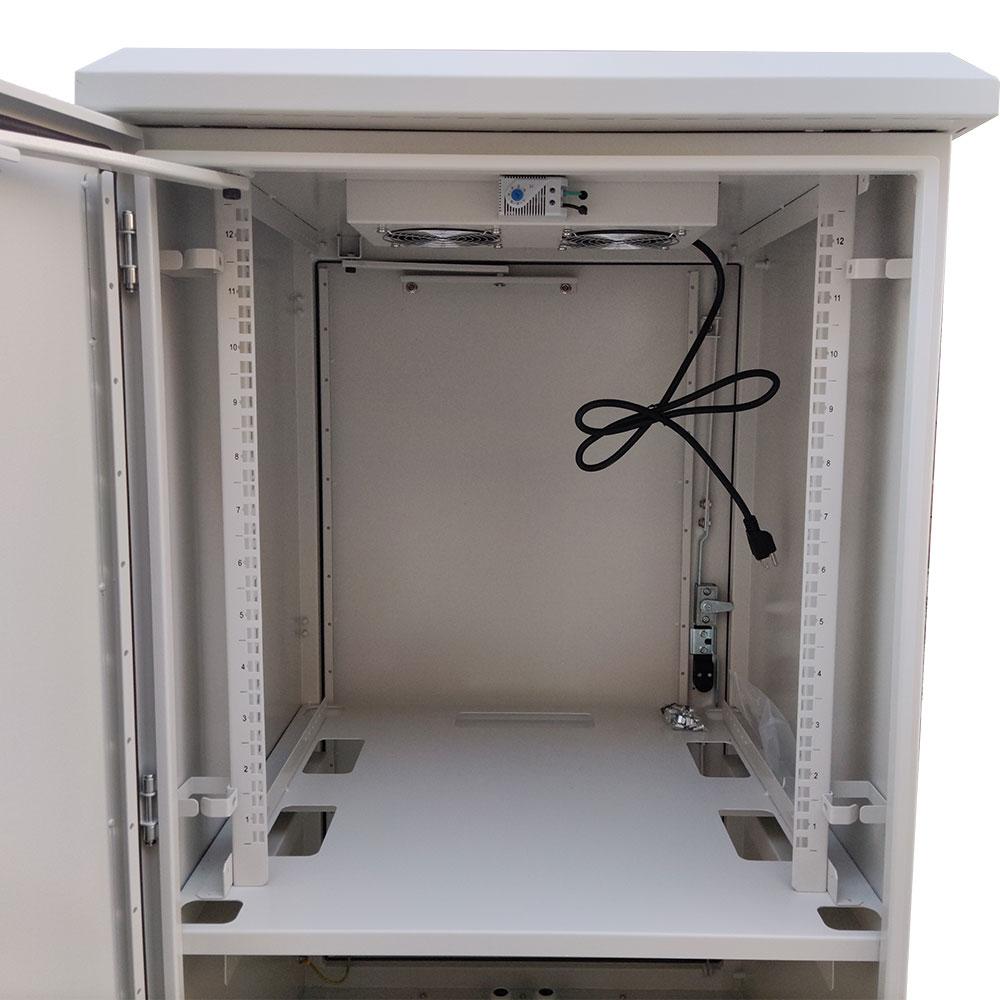

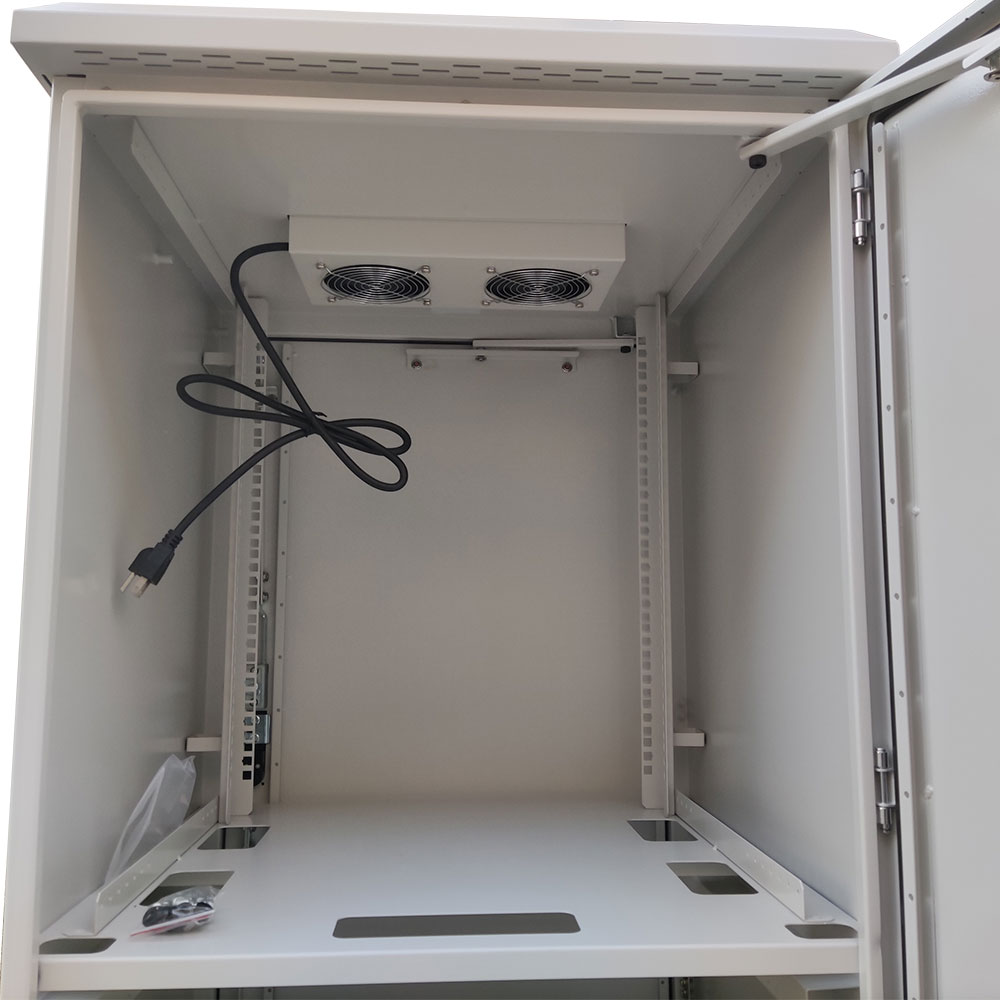

| Cooling | AC110V Cooling Fan x 2 (with tem. Controller) |

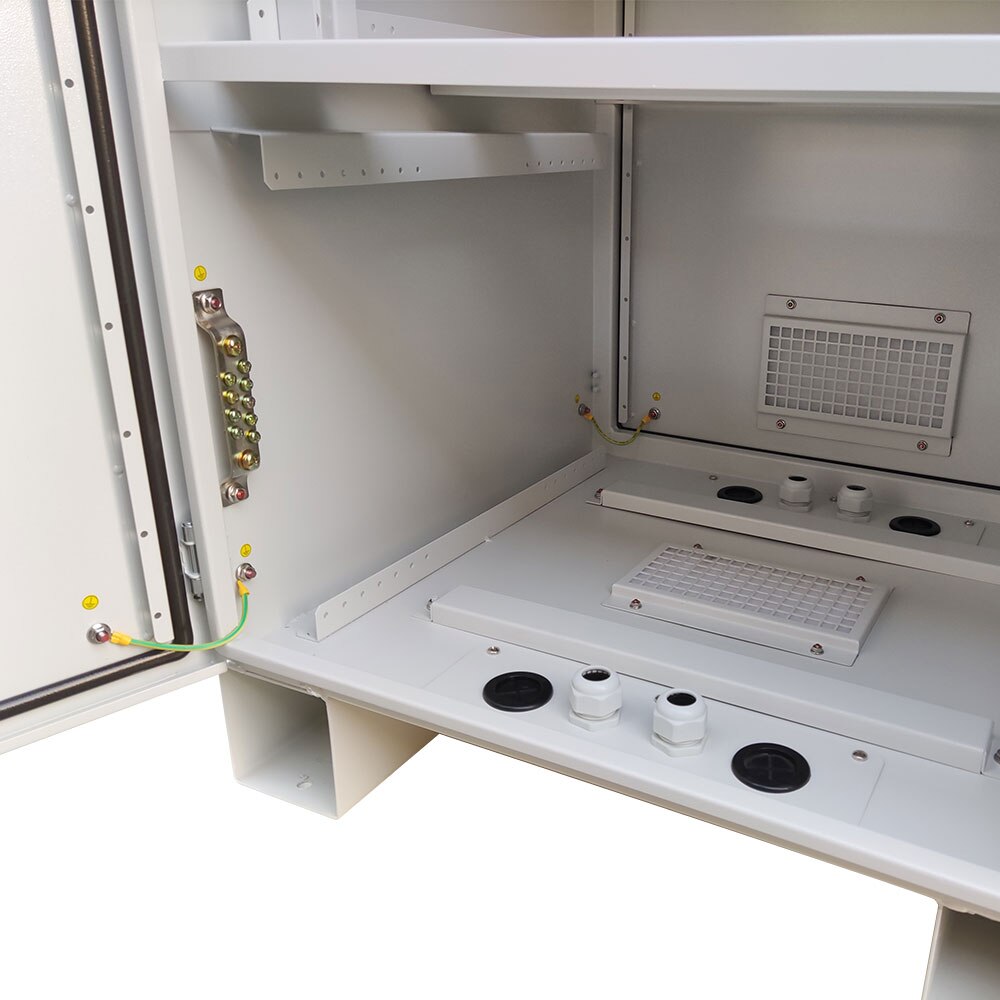

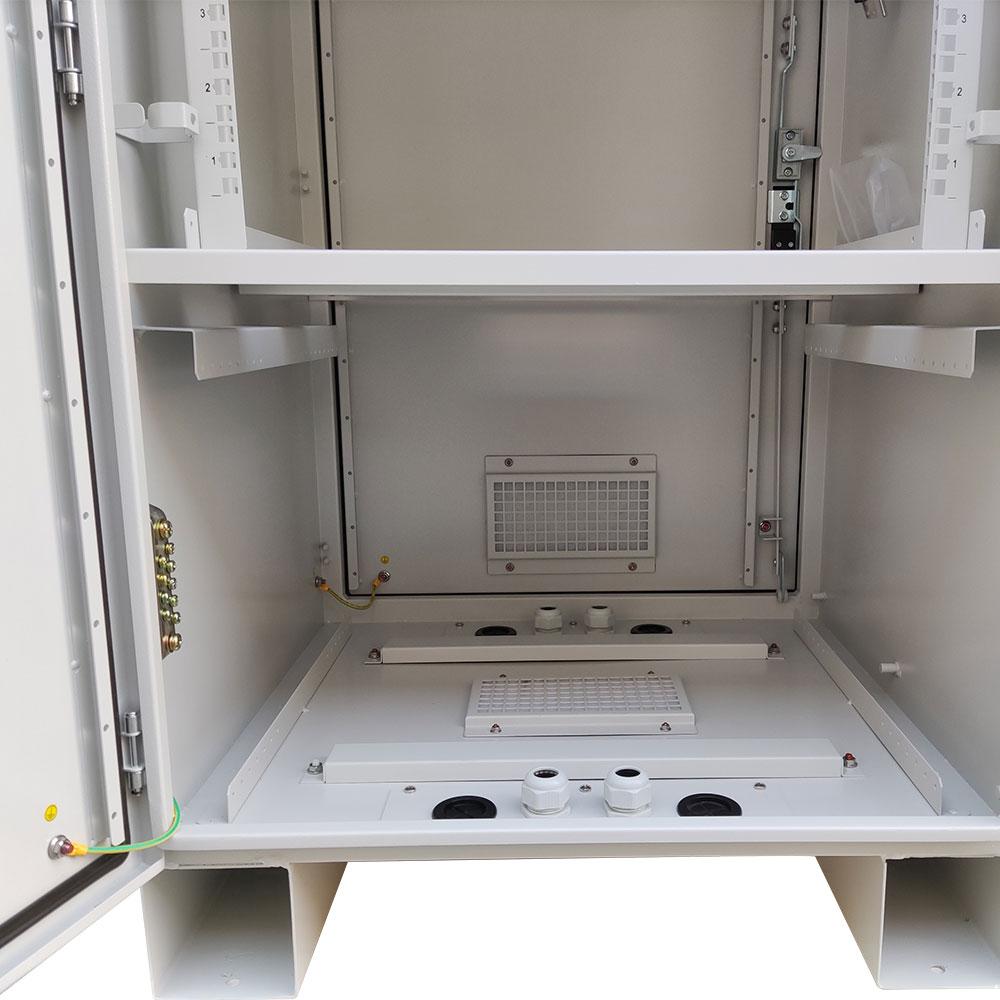

| Grounding | Earthing Copper Bar,Grounding Wire |
| Other | N/A |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
