Product Information

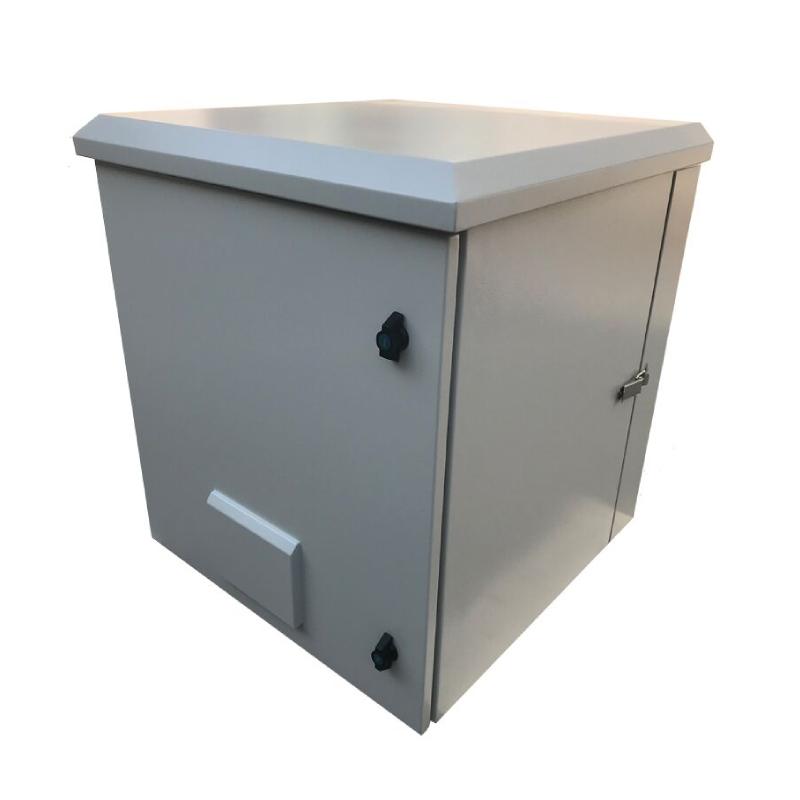

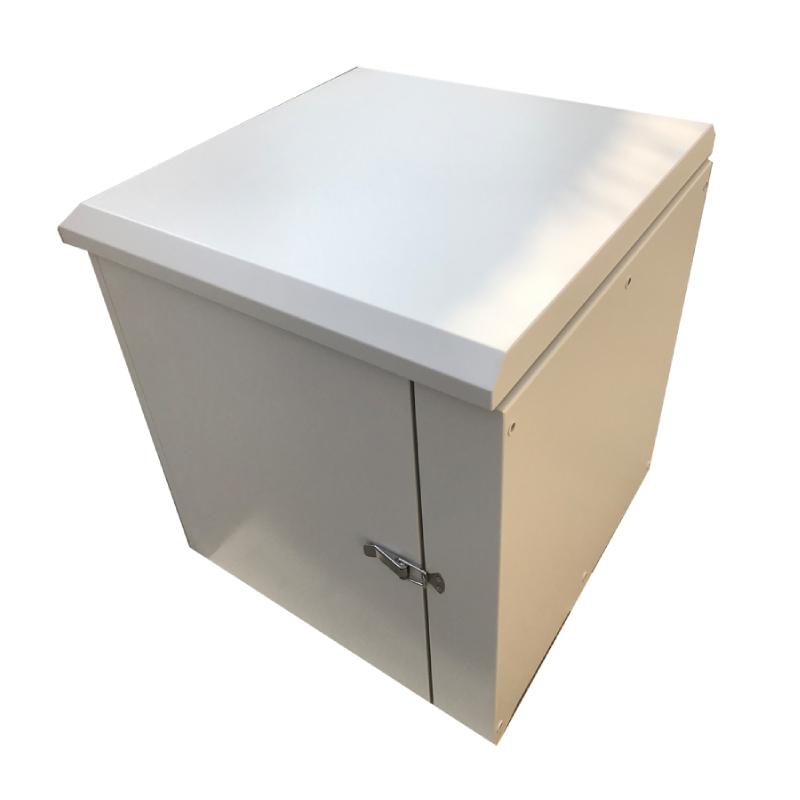

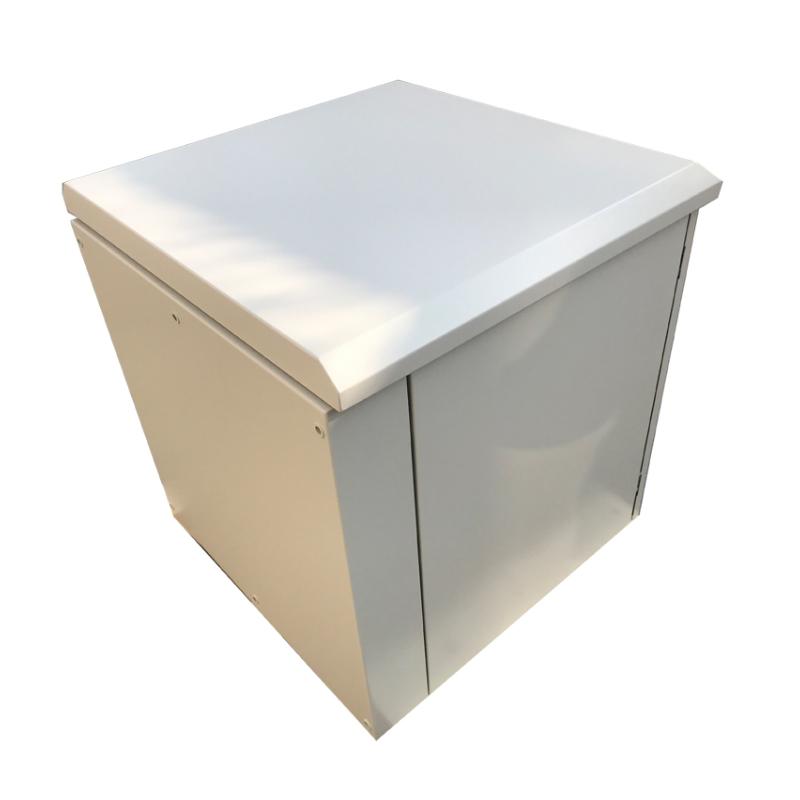

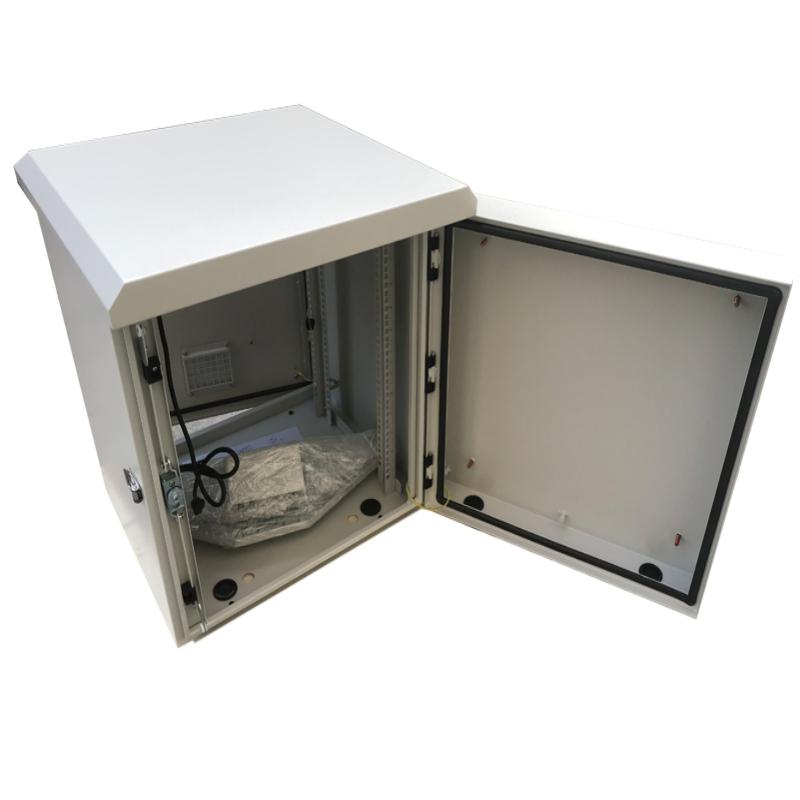

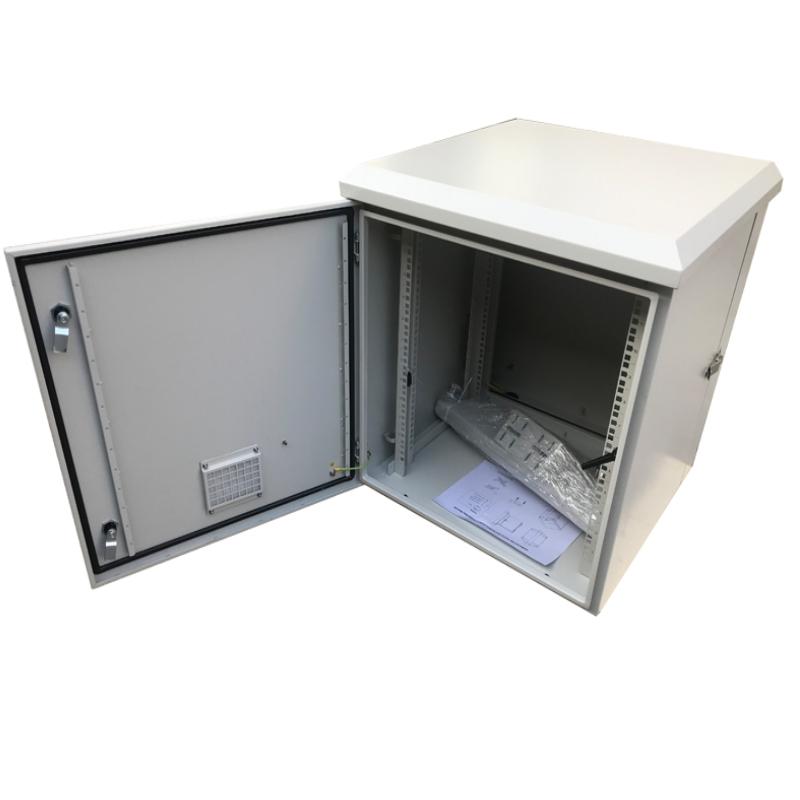

12RU 24" Wide x 25" Deep Double Hinged Outdoor Pole Mount Enclosure, NEMA 4X Rated|Grey
Specifications
Specifications LSO-12UOD-600600-DHPM
| Physical | ||
| Protection Class | NEMA 4X | |
| Rack Unit Size | 12U | |
| Cabinet Type | Wall Mount or Pole Mount Outdoor Enclosure | |
| Color | Grey RAL7035 | |
| Material | Cold-rolled Steel | |
| Unit Dimension(WxDxH) | 23.62 x 25.00 x 26.10 inches (without extrude rain roof dim.) | |
| Unit Weight(lbs.) | 123.42 | |
| Internal Depth (Front Rail to Back Door) | 22.24 inches | |
| Rail to Rail Depth | 14.96 inches | |
| Shipping Dimension(WxDxH) | 27.56 x 27.95 x 28.35 inches | |
| Shipping Weight(lbs.) | 128.93 | |
| Electrical | ||

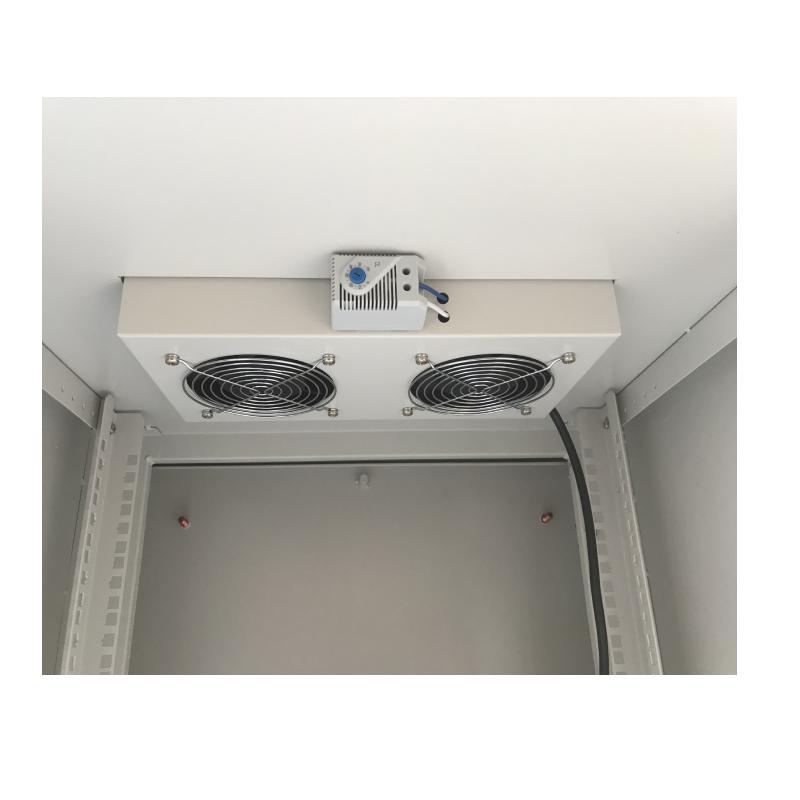

| Cooling | AC110V Cooling Fans x 2 (with tem. controller) | |
| Certifications | ||
| Safety | CE | |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS | |
| Warranty | ||
| Product Warranty | 1 Year |
