Product Information

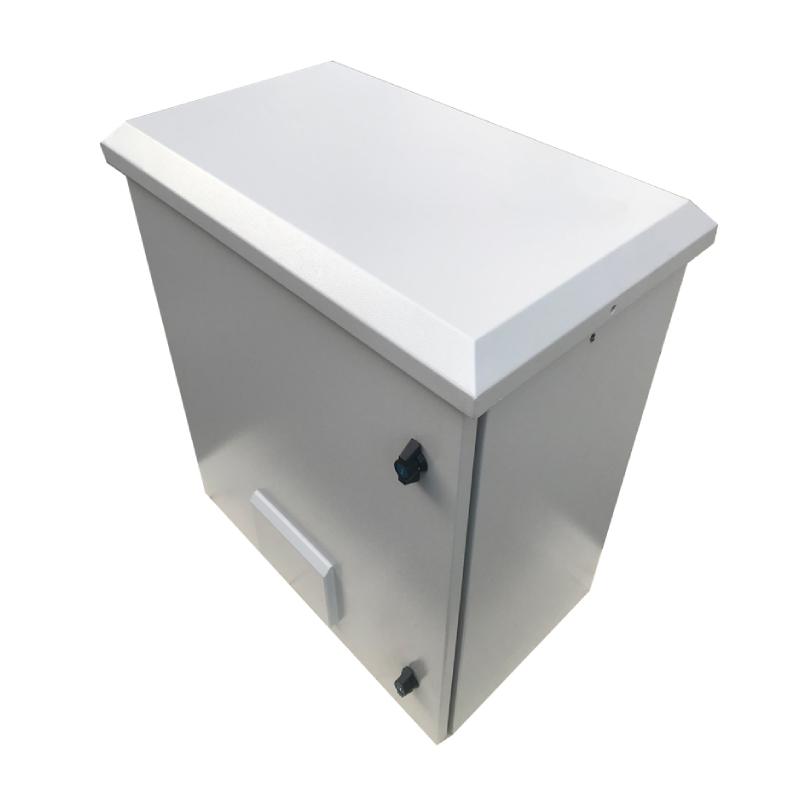

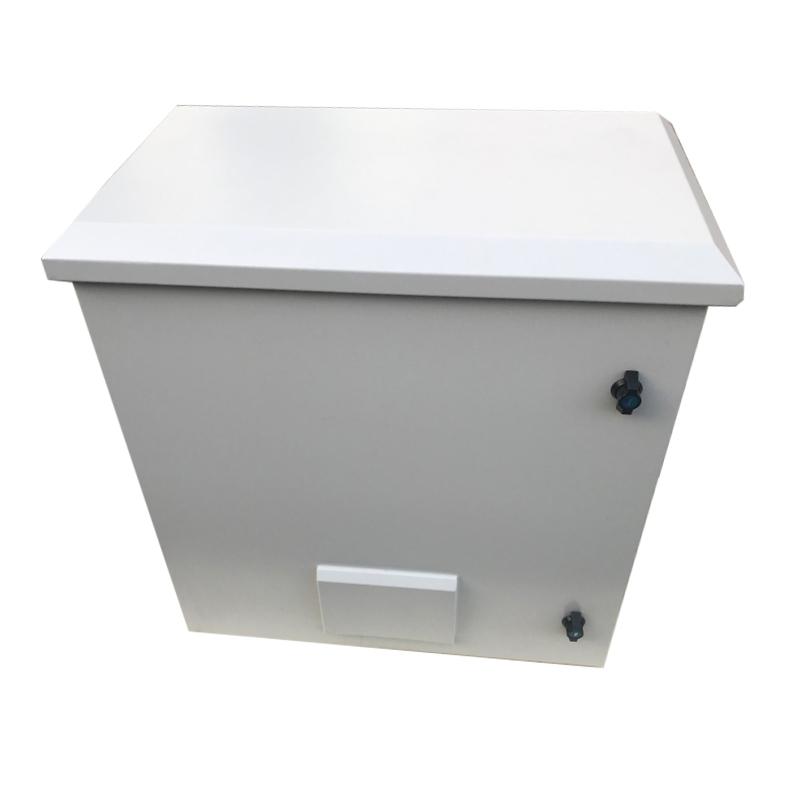

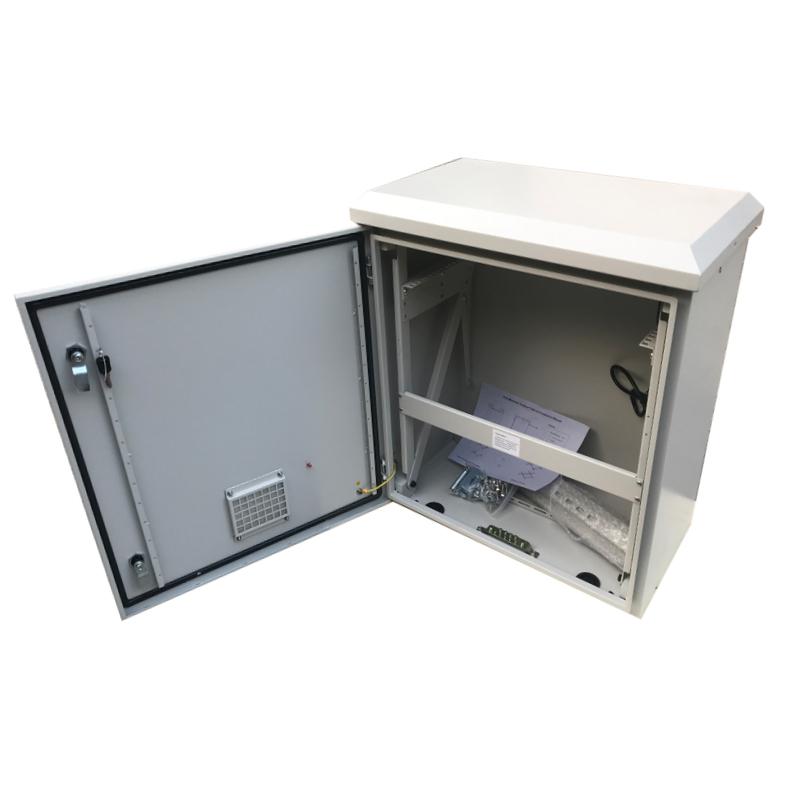

6RU 24" Wide x 26" Deep Vertical Outdoor Pole Mount Enclosure, NEMA 4X Rated|Grey
Specifications
Specifications LSO-6UOD-650300VRT-PM
| Physical | |
| Model name | LSO-6UOD-650300VRT-PM |
| Protection Class | NEMA 4X |
| Rack Unit Size | 6U |
| Cabinet Type | Wall Mount or Pole Mount Outdoor Enclosure |
| Color | Grey RAL7035 |
| Material | Cold-rolled Steel |
| Unit Dimension(WxDxH) | 23.62 x 13.78 x 26.10 inches (without extrude rain roof dim.) |
| Unit Weight(lbs.) | 66.12 |
| Internal Depth (Rail to bottom) | 19.45 inches |
| Rail to Rail Depth | N/A |
| Shipping Dimension(WxDxH) | 27.56 x 27.95 x 28.35 inches |
| Shipping Weight(lbs.) | 83.75 |
| Electrical | |

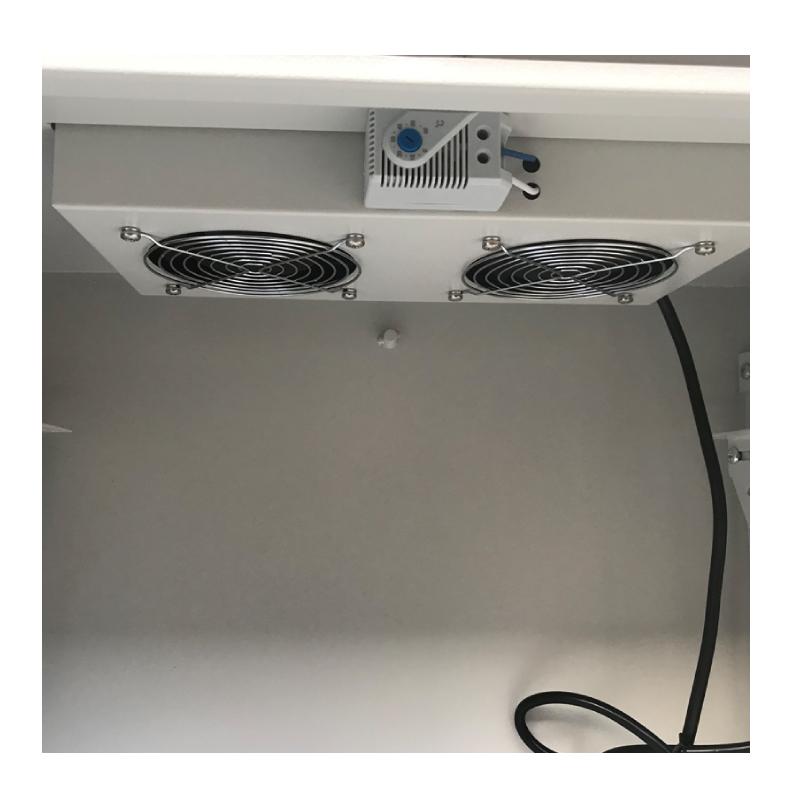

| Cooling | AC110V Cooling Fans x 2 (with tem. controller) |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
