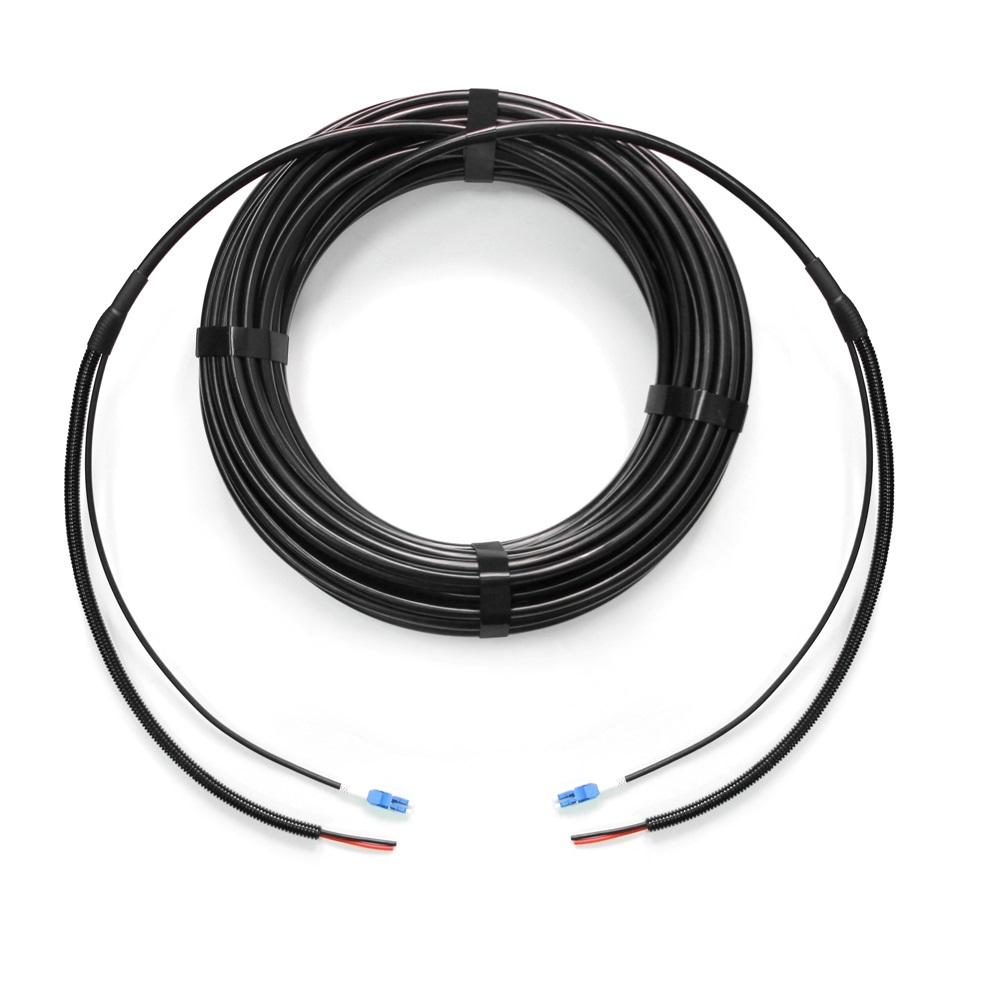

Fiber/Power Hybrid Cable, 2F SM Armored Fiber w/LCU Uniboot Connector + 2 x 12 AWG DC Power Cable
- SKU: LSO-FPHC-2F/SM/LCU/A-2/12AWG/DC
$47.85 to $868.13Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
Fiber/Power Hybrid Cable, 2F SM Armored Fiber w/LCU Uniboot Connector + 2 x 12 AWG DC Power Cable
Specifications
Specifications
| Fiber Cable Parameters | |
| Fiber Count: | Duplex |
| Fiber Mode: | Single Mode: OS2 9/125µm |
| Fiber Grade: | G.657.A1 |
| Connector: | LC UPC Unibooot |
| Cable Jacket: | Low Smoke Zero Halogen (LSZH) |
| Power Cable Parameters | |
| Conductor | 12AWG x 2 |
| Rated Voltage | 300V |
| Insulation Material | PVC |
| Optical Characteristics | |
| Insertion Loss (dB): | ≤0.3 |
| Return Loss (dB): | ≥50 |
| Wavelength (nm): | 1310/1550 |
| Attenuation (dB/km): | ≤0.36 at 1310nm, ≤0.22 at 1550nm |
| Physical Characteristics | |
| Cable Diameter (mm) | 11 |
| Min. Bend Radius (D) | 20/10 (Dynamic/Static) |
| Tensile Strength (N) | 200/400 (Long Term/Short Term) |
| Crush Resistance (N) | 1100/2200 (Long Term/Short Term) |
| Operating Temperature | -20 to +70°C |
| Storage Temperature | -40 to +80°C |

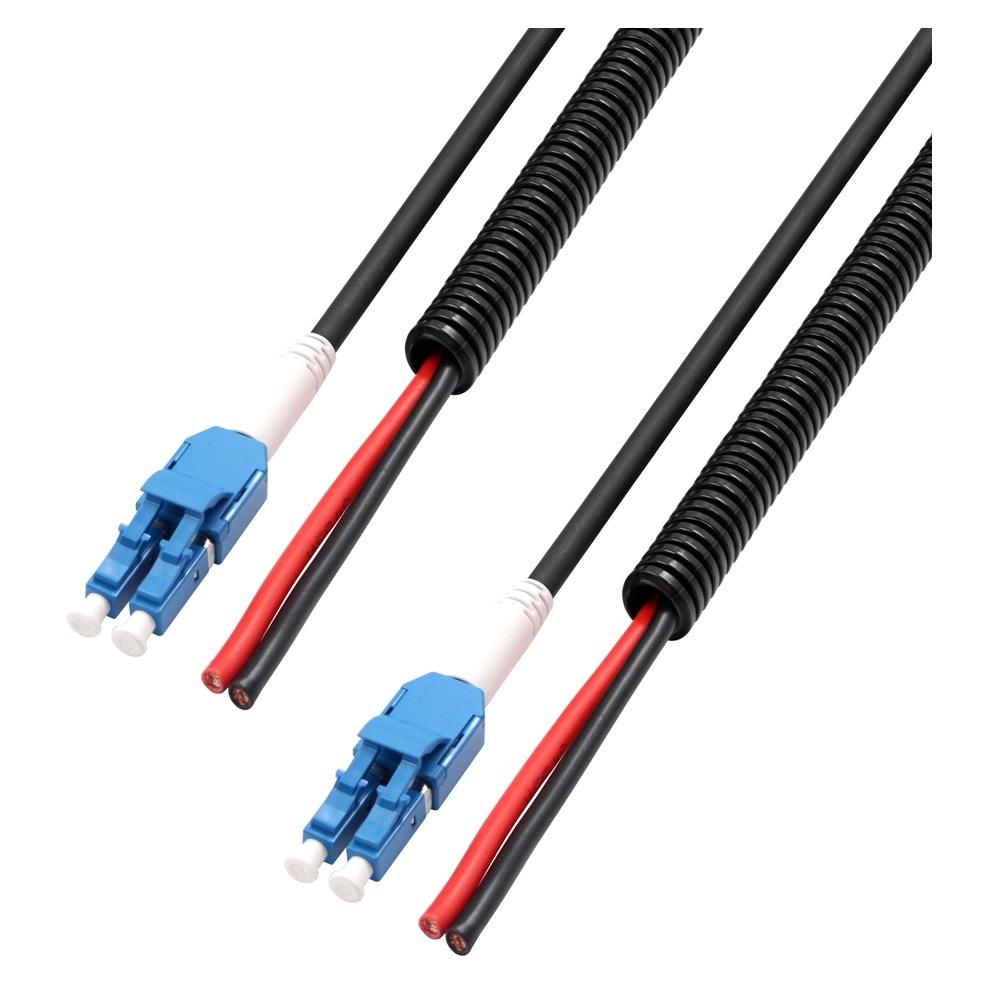

| Side A: | UNIBOOT LC/UPC SM (BLUE HOUSING, WHITE BOOT)+2X12AWG RED/BLACK |
| Side B: | UNIBOOT LC/UPC SM (BLUE HOUSING, WHITE BOOT)+2X12AWG RED/BLACK |
| Fiber cable type: | G657A1 OS2 9/125um, OD: 5.0mm, DUPLEX, LSZH, ARMORED, BLACK |
| Insertion loss: | ≤0.3dB |
| Return loss: | UPC ≥ 50dB |
| Min bending radius: | 10D (Static); 20D (Dynamic) |
| Operating temperature: | -20 to +70°C |
| Storage temperature: | -40 to +70°C |
| Standards: | ANSI/TIA/EIA 568-C.3 |
