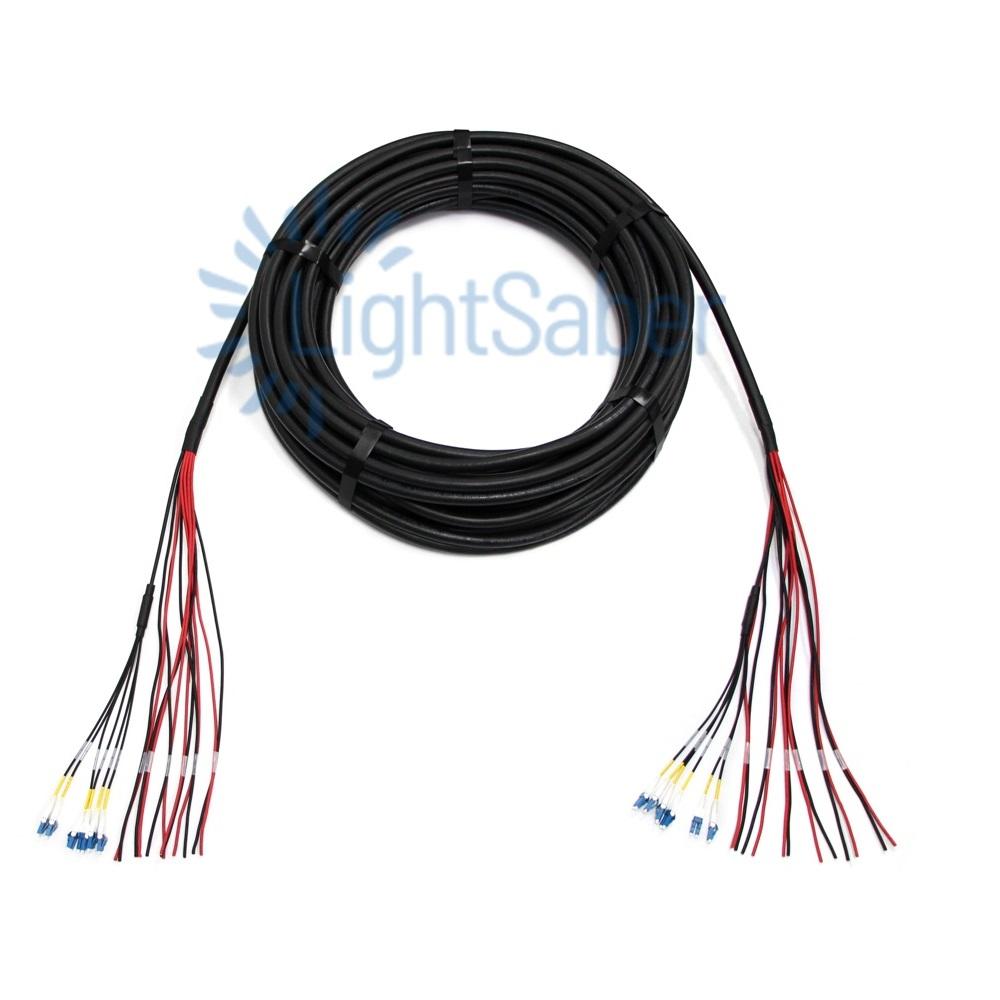

12F Singlemode LC-LC + 12x12AWG fiber/power hybrid cable
- SKU: LSO-HybridTrunk-12FSMLCLC+12x12AWG
$2,608.68 to $5,199.04Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information
12F Singlemode LC-LC + 12x12AWG fiber/power hybrid cable
Specifications
Specifications LSO-HybridTrunk-12FSMLCLC+12x12AWG
| Fiber Cable | |
| Connector | LC Duplex Uniboot |
| Cable | Armored SM 3.0mm, 2F, Black |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Min Bending Radius | 10D(Static); 20D(Dynamic) |
| Operating Temperature | -40 TO +70°C |
| Standard | ANSI/TIA/EIA 568-C.3 |
| Power Cable | |
| Core | # 12C |
| Wire Gauge | 12AWG |
| Cable Color | Red/Black |
| Diameter | 3.7mm |
| Conductor Material | Bare Copper |
| Jacket Material | XLPE |
| Rated Voltage | 400V/600V |
