Product Information

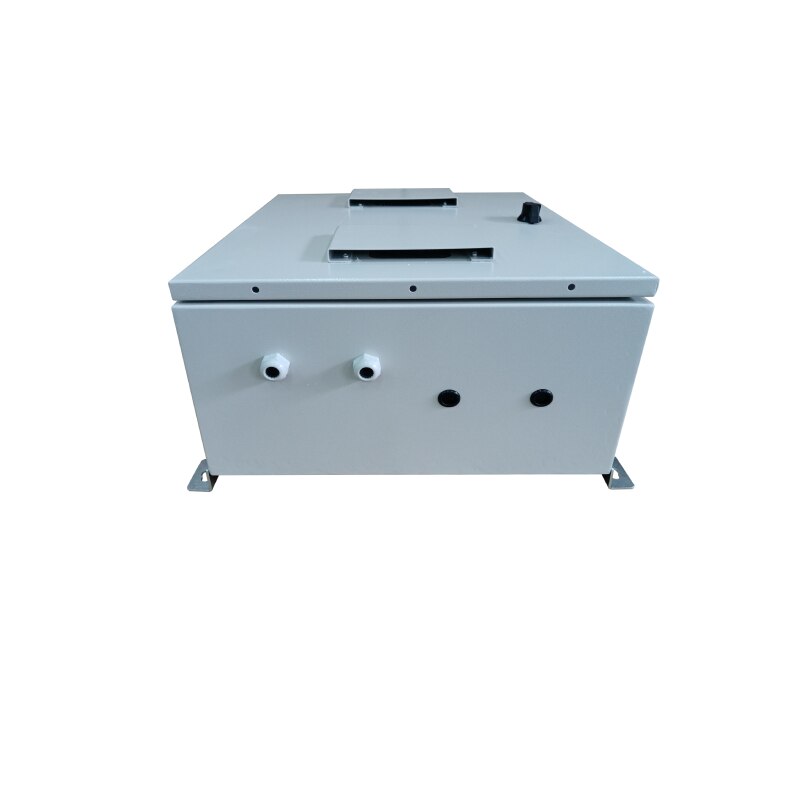

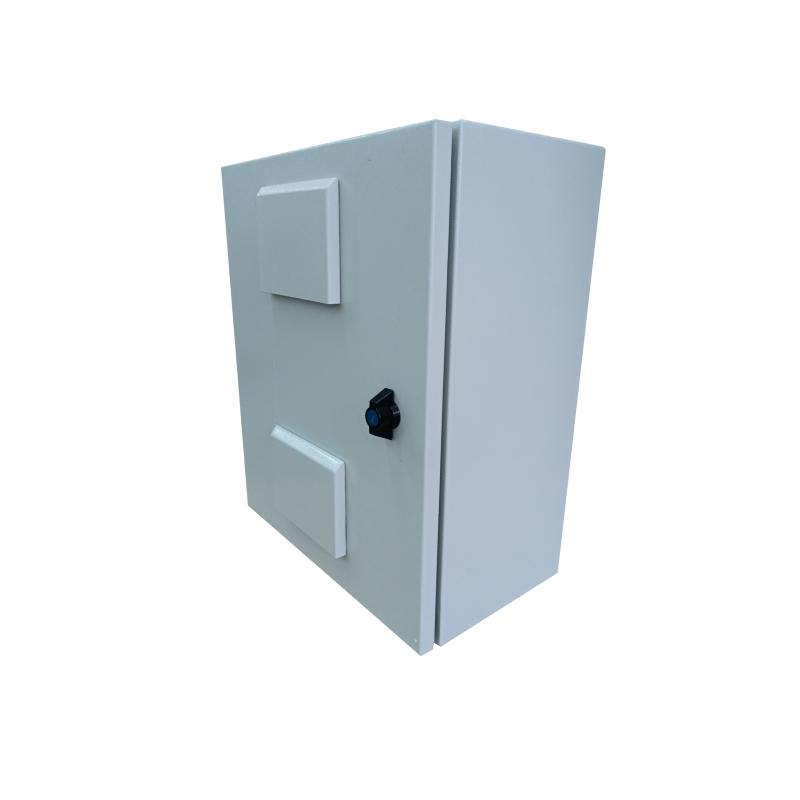

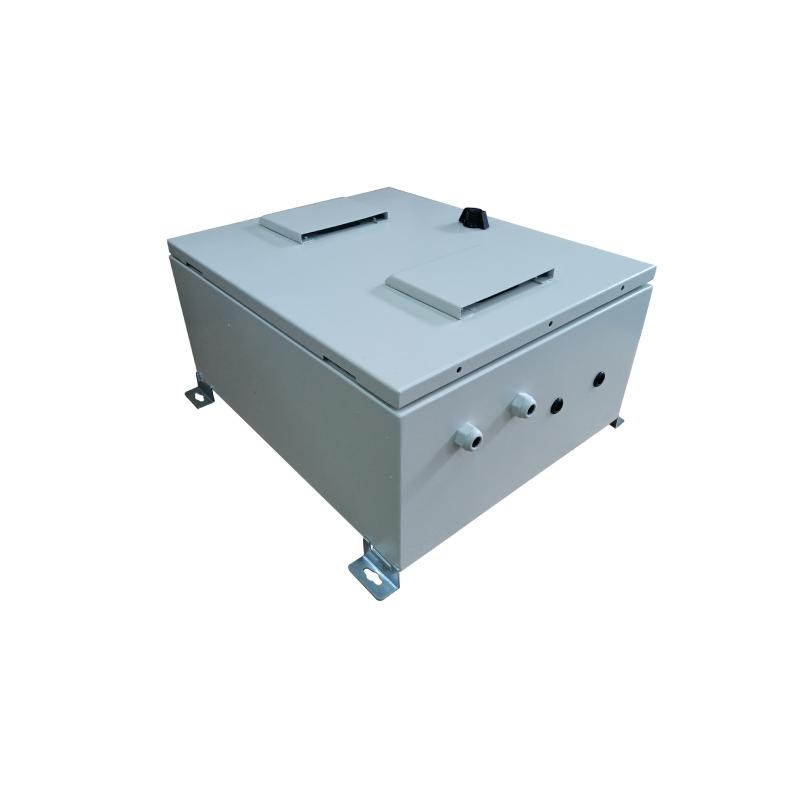

LightSaber 16“x12"x 6" Industrial NEMA Weatherproof enclosure with 120VAC Cooling fans, Grey
Specifications
Specifications LSO-OD-161206
| Physical | |
| Model name | LSO-OD-161206 |
| Protection Class | NEMA 4X |

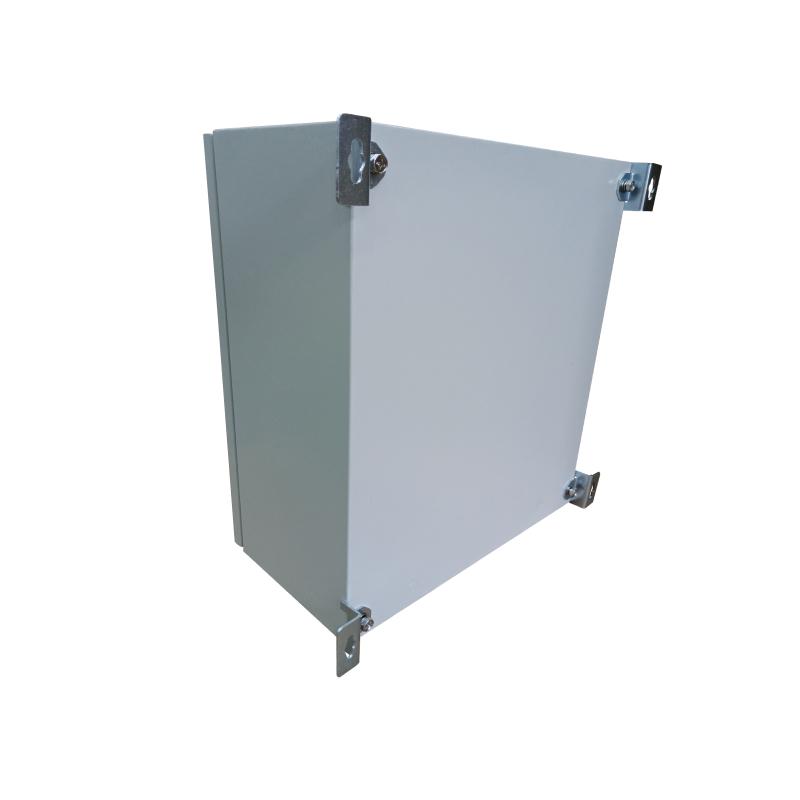

| Cabinet Type | Pole-Mount with U Bolt (or hose clamps) or Wall-Mount |
| Color | Grey RAL7035 |
| Material | Cold-rolled Steel |
| Unit Dimension(WxDxH) | 12.00 x 6.69 x 15.75 inches (without lock and mounting bracket) |
| Unit Weight(lbs.) | 22.04 |
| Internal Depth (Front door to Back Mounting Plate) | 6.89 inches |
| Rail to Rail Depth | N/A |
| Shipping Dimension(WxDxH) | 14.17 x 8.86 x 17.72 inches |
| Shipping Weight(lbs.) | 23.36 |
| Electrical | |

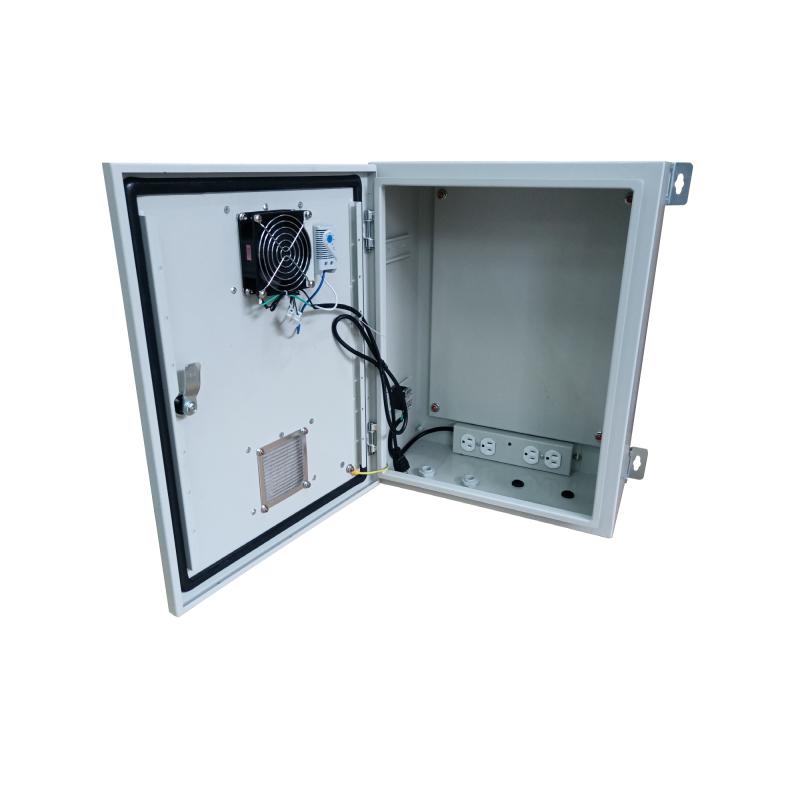

| Cooling | AC110V Cooling Fan x 1 (with tem. Controller) |
| Grounding | Grounding Wire |

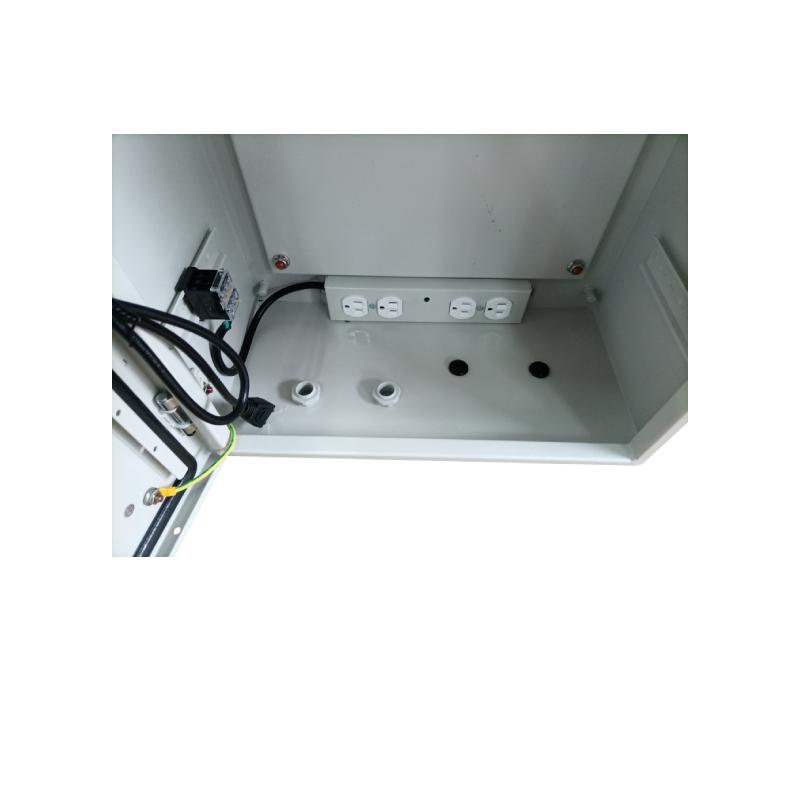

| Power sockets | 4 x 120VAC 15A outlets(surge protected,with cable terminals,0.5 meter) |
| Other | N/A |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
