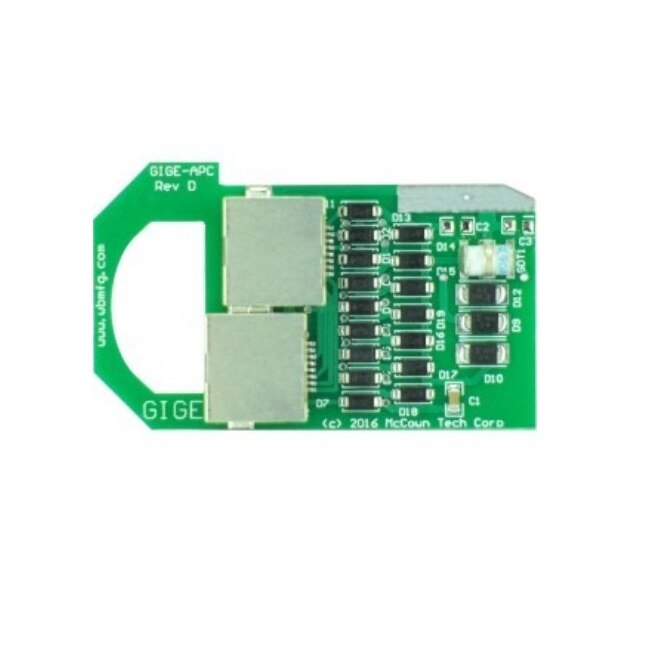

High Voltage Gigabit Surge Suppressor for APC Chassis
- SKU: 800-GIGE-APC-HV
$34.02
- Manufacturer: Mccown
- Data Sheet: Download
Product Information
High Voltage Gigabit Surge Suppressor for APC Chassis
Specifications
Specifications 800-GIGE-APC-HV
| Connector Style | RJ-45, Shielded, CAT5/6 |
| Data Rate | 10, 100, 1000 Mbps |
| Protected Pins | (1,2), (3,5), (4,5), (7,8) |
| Unprotected Pins | None |
| Peak Current per Telcordia | GR-1089 0.50 kAmps |
| Attenuation | 2dB @ 1000Mhz |
| NEXT Increase | 0.3dB |
| Return Loss Decrease | 0.5dB |
| Clamping Voltage | Data Circuits – 68 volts |
| Height | 1.76 inches |
| Width | 3.2 inches |
| Environmental | |
| Operating/Storage Temperature | -40C to +65C |
| Relative Humidity | 99% (non condensing) |
