MikroTik 868 LoRa Omni Antenna Kit 6.5 dBi 824-960 MHz
- SKU: 868_Omni_antenna
$65.40 $67.42
+ $2.63 Tariff
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

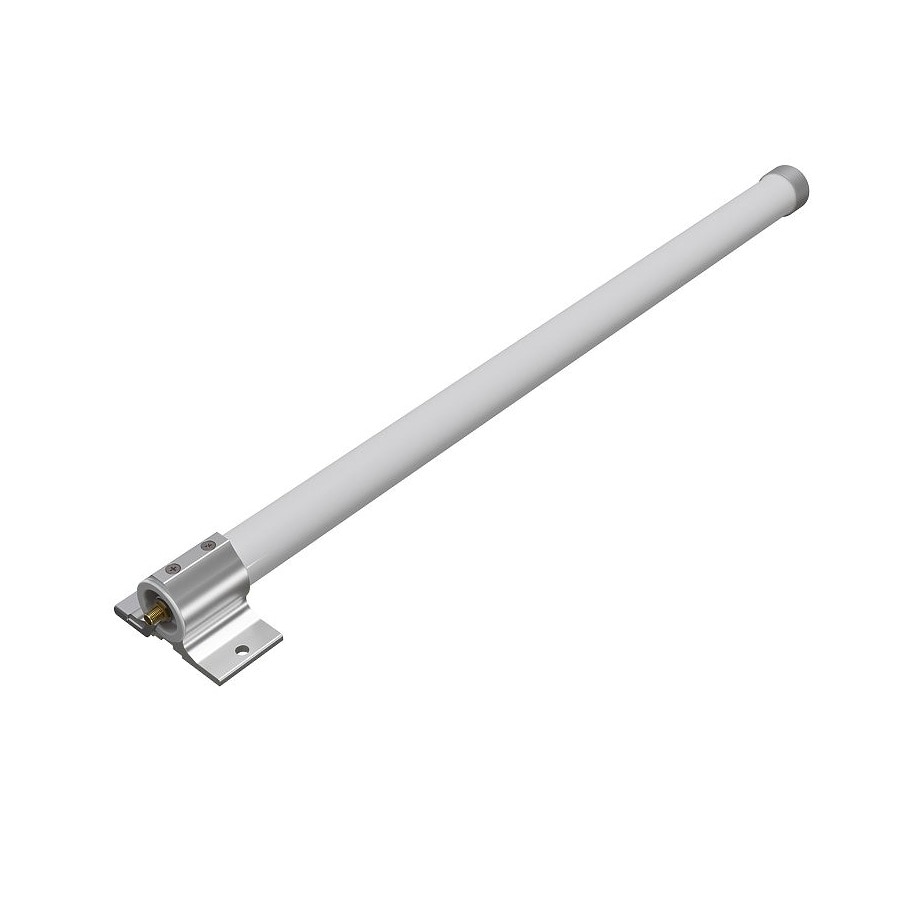

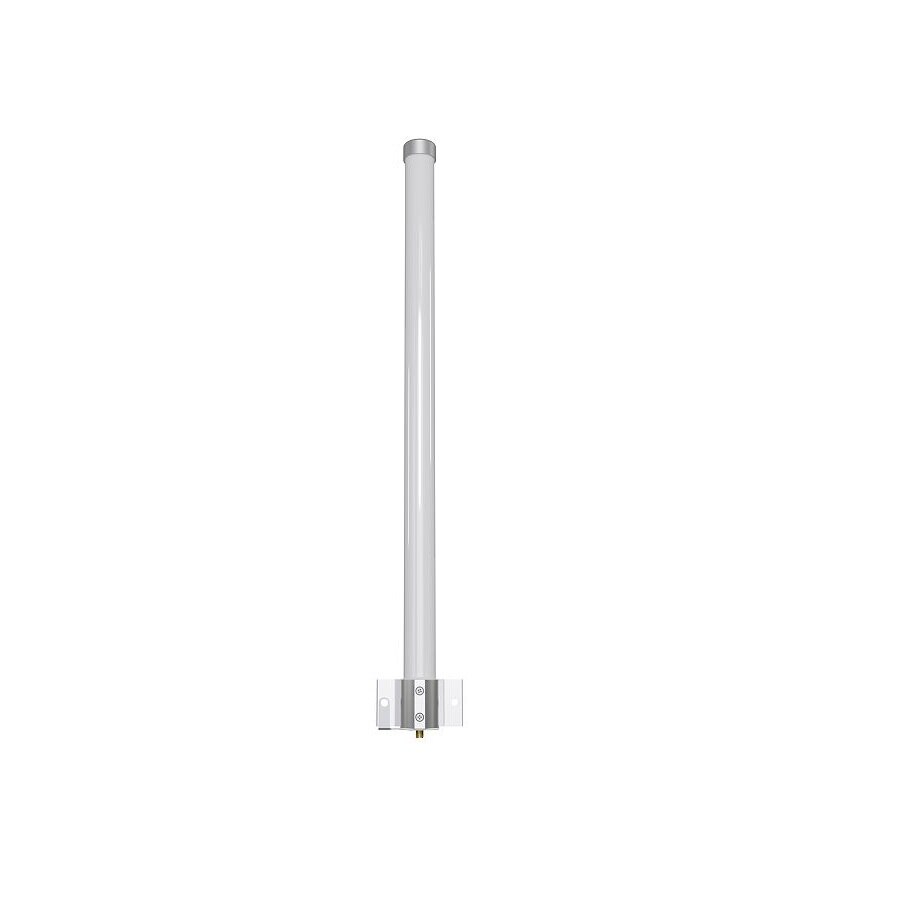

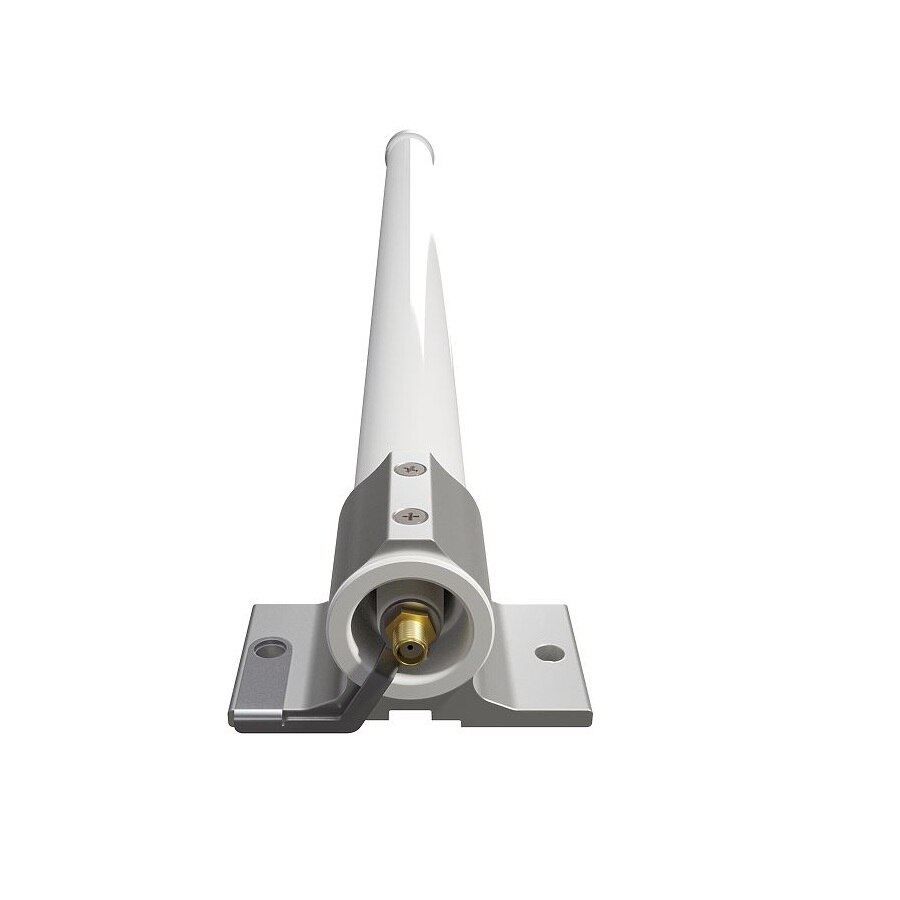

ISP Supplies supplies the MikroTik 868 antenna kit for LoRa® with a 6.5 dBi Omni antenna for 824-960 MHz, 1 m long SMA cable, and mechanical holder for quick and easy mast attachment. This new kit offers significantly higher durability in a smaller package – without sacrificing performance. The improved cable durability and the added IP66 water resistance with protection against powerful jets make this kit an excellent choice for all kinds of marine and coastal projects. Mount this antenna on a 25-50 mm mast or on the wall and enjoy the superb coverage!
Specifications
Specifications
Certification & Approvals | IP 66 |
Frequency | 824 - 960 MHz |
Gain | 6.5 dBi |
Horizontal beamwidth | 360° |
Vertical beamwidth | 30° |
Nominal impedance | 50 Ω |
Lightning protection | DC ground |
Connector | SMA female |
Weight | 0.6 kg |
Dimensions | 42 x 68 x 495 mm |
