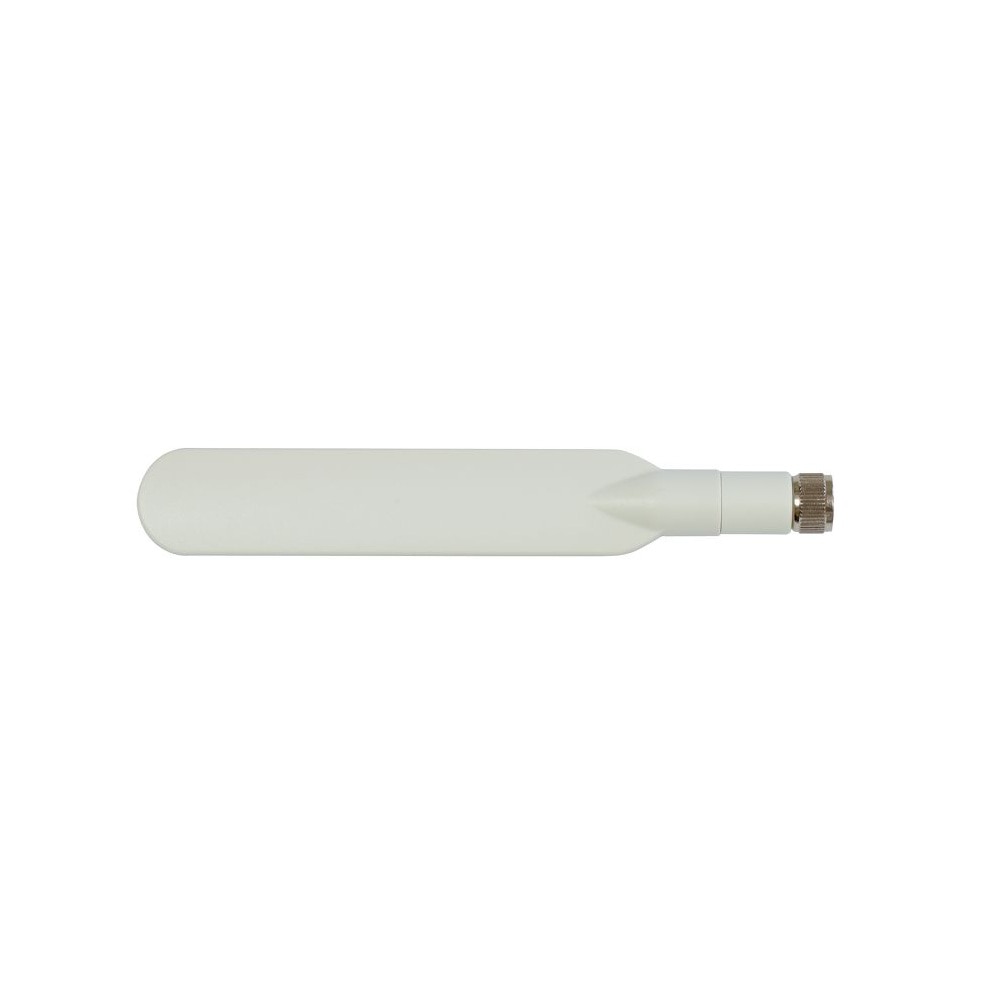

MikroTik Dipole Antenna with RPSMA Connector
- SKU: ACOMNIRPSMA
$6.98 $11.19
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
ISP Supplies supplies the MikroTik 2.4GHz 5dBi dipole antenna with RPSMA connector. Take BaseBox2 and simply attach two of these antennas on connectors of BaseBox2 to have a 2x2 MIMO 2.4GHz access point. With this you can have a “2.4GHz OmniTik”, ideal for outdoor campus areas, for example, campings or trailer parks. The antennas are waterproof, so you can use BaseBox without a top cover if both antennas are properly attached.
Features:
•2.4GHz-2.5GHz ISM Band
•IEEE 802.11b/g/n Wireless
•Directional and multipoint application
•Weatherproof and corrosion resistant
•Ideal for use with Basebox product series
Specifications
Specifications ACOMNIRPSMA
Electrical Specifications
| Frequency Range | 2400~2500 MHz |
| V.S.W.R | ≤ 2.0:1 |
| Antenna Type | PCB |
| Gain | 5.0 ± 0.3dBi |
| Polarization | Linear |
| Horizontal Beam-with | 360° |
| Impedance | 50Ω |
| Connector | > RP SMA MALE |
Mechanical Specifications
| Dimension | 147mm |
| Weight | 30g |
| Housing | ABS |
| Hinge | ABS |
| Color | White |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -30°C to +85°C |
