MikroTik CRS109-8G-1S-2HnD-IN Cloud Router 8 Gigabit Port L3 Switch
- SKU: CRS109-8G-1S-2HnD-IN
$199.33 $205.49
+ $7.88 Tariff
Product Information

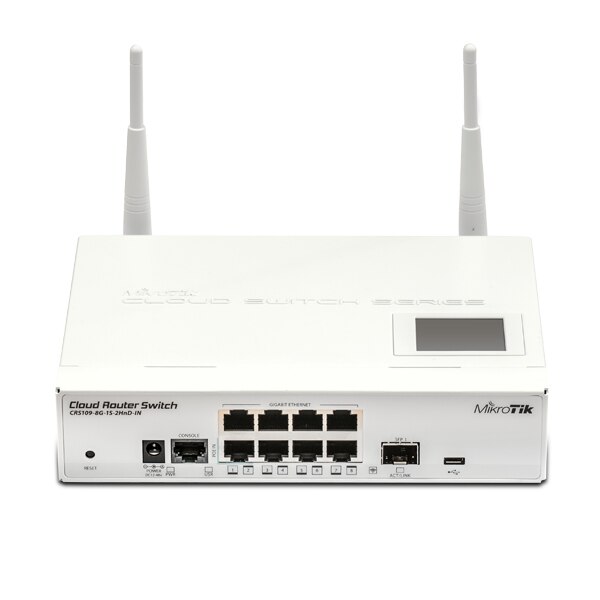

ISP Supplies supplies the MikroTik CRS109-8G-1S-2HnD-IN, the new "small size low cost" member of the CRS series. It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. The product supports 10-57V.
The CRS series combines the best features of a fully functional router and a Layer 3 switch, it is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Features:
• Full wire speed switching
• Configure ports as switch, or for routing
• If required, full RouterOS routing power right there
• Desktop case
• Color touchscreen
Specifications
Specifications CRS109-8G-1S-2HnD-IN
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 200x145x45mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -35C to +65C tested |
| Max Power consumption | 13W |
| PoE in Passive | PoE |
| 802.3af support | yes |
| PoE in input Voltage | 10-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
| 10/100/1000 Ethernet ports | 8 |
| SFP DDMI | yes |
| SFP ports | 1 |
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1.5 |
