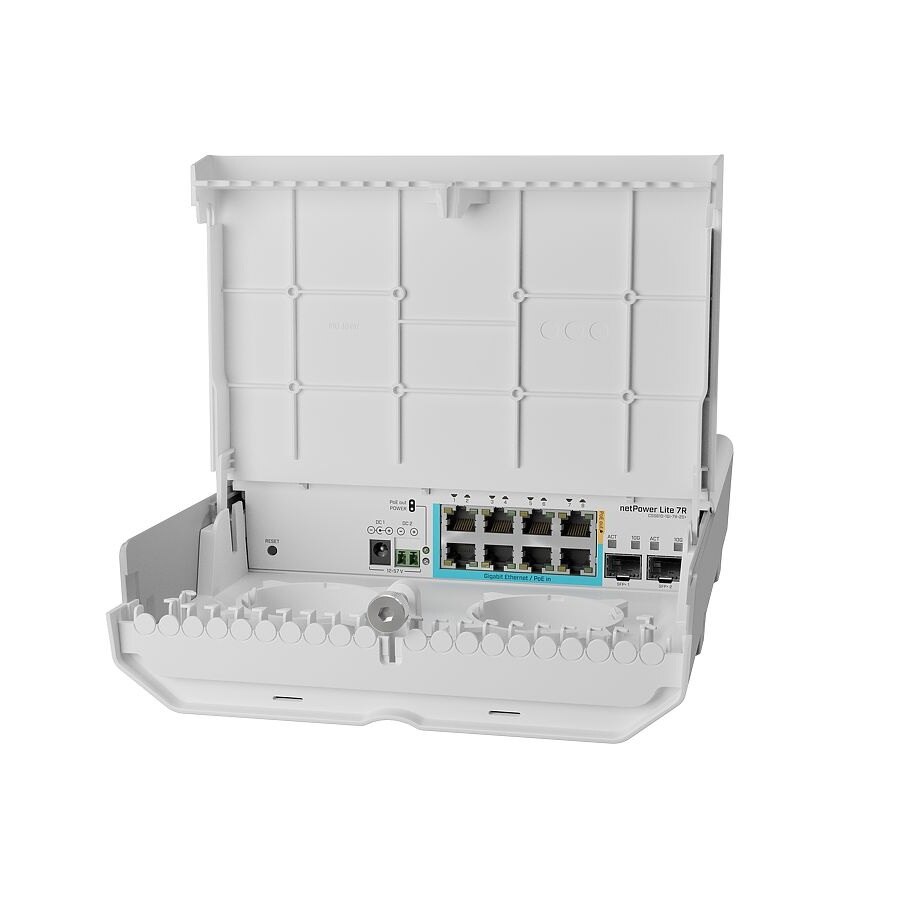

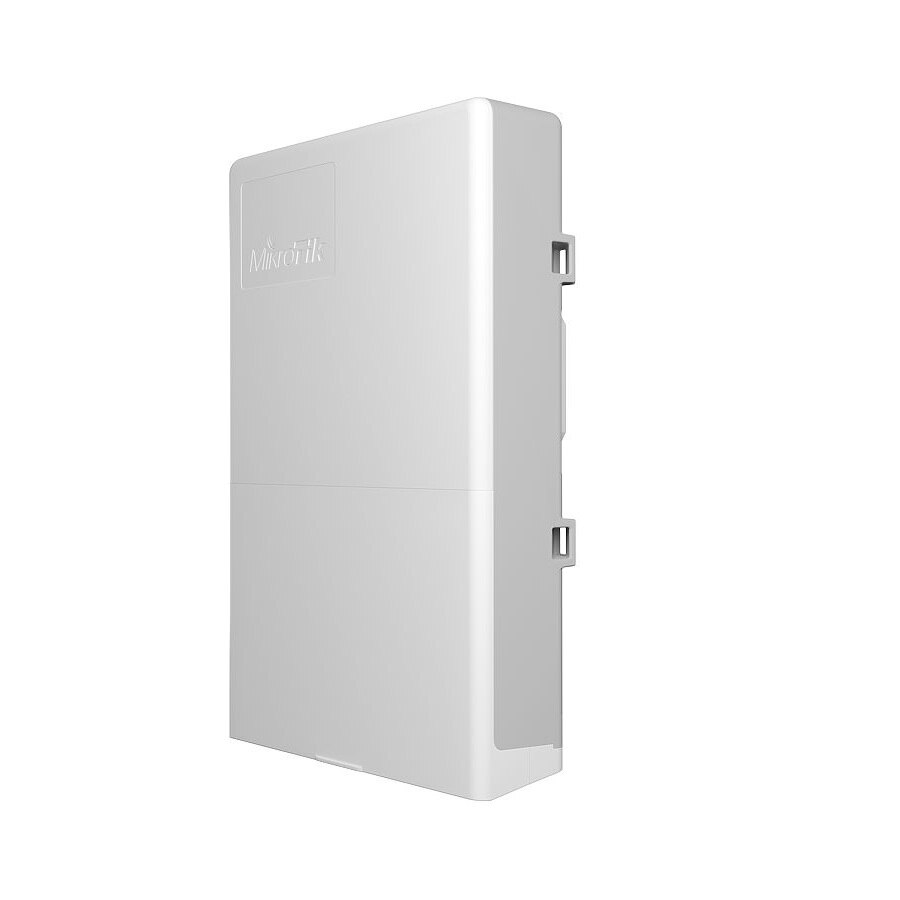

MikroTik CSS610 netPower Lite 7R Outdoor Reverse PoE Switch
- SKU: CSS610-1Gi-7R-2S+OUT
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
The Mikrotik CSS610 netPower Lite 7R Outdoor Switch is a cost-effective solution for ISPs seeking to deliver high-speed Internet to individual apartments without the need for expensive GPON base stations and optical splitters. Part of the GPEN concept, this switch combines the advantages of fiber networking with the versatility of Ethernet, making it easy to deploy and efficient.
With 7 reverse PoE ports, the netPower Lite 7R ensures reliable power delivery to connected devices, and Ethernet port 8 can also power other PoE-capable devices using the same voltage as the unit. Additionally, alternative powering options are available through the DC jack and 2-pin terminal. Its rugged outdoor enclosure allows installation in various environments, offering flexibility and durability.
Product Applications- Ideal for Internet Service Providers (ISPs) seeking to deliver high-speed Internet to individual apartments
- Suitable for outdoor installations in various environments, from damp attics to elevator shafts and poles
- Can be powered by a battery for increased flexibility in power supply
- 7 Gigabit Ethernet ports with reverse PoE capability
- Non-blocking throughput of 28 Gbps
- Switching capacity of 56 Gbps
- Forwarding rate of 41.7 Mpps
- Ethernet port 8 can power other PoE-capable devices with the same voltage as the unit
- Equipped with a DC jack and 2-pin terminal for alternative power options
- Seven 1G Ethernet ports with Reverse PoE (PoE-in)
- One 1G Ethernet ports with PoE-out
- Two 10G SFP+ Ports
- 3 DC Inputs (DC jack, PoE-IN, 2-pin terminal)
- -40°C to 70°C Operating Temperature
- 304 x 212 x 71 mm
- Mikrotik CSS610 netPower Lite 7R Outdoor Reverse PoE Switch
- K-66 Fastening Set
- 2 Hose Clamps
Power Supply is NOT included.
Specifications
Specifications CSS610-1Gi-7R-2S+OUT
| Dimensions | 304 x 212 x 71 mm |
| Operating System | SwitchOS |
| Storage size | 64 KB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 12-57 V |
| 2-pin terminal input Voltage | 12-57 V |
| Max power consumption | 29 W |
| Max power consumption without attachments | 7 W |
| FAN count | Passive |
| PoE-out | |
| PoE-out ports | Ether8 |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 600 mA |
| Max out per port output (input > 30 V) | 450 mA |
| Ethernet | |
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 7 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Fiber | |
| SFP+ ports | 2 |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
