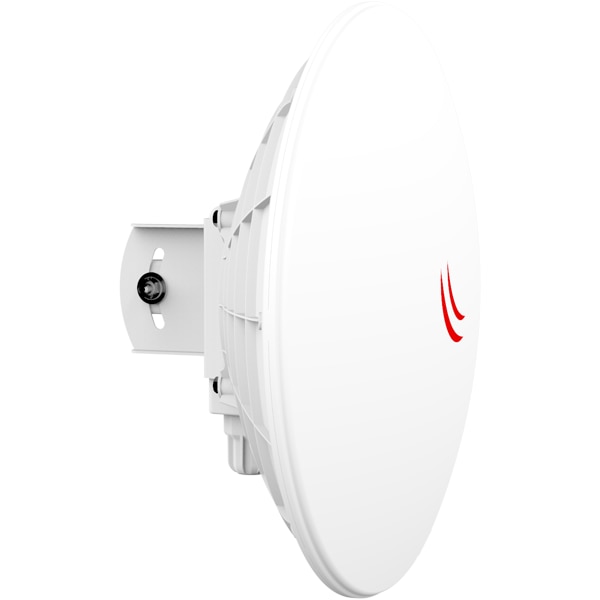

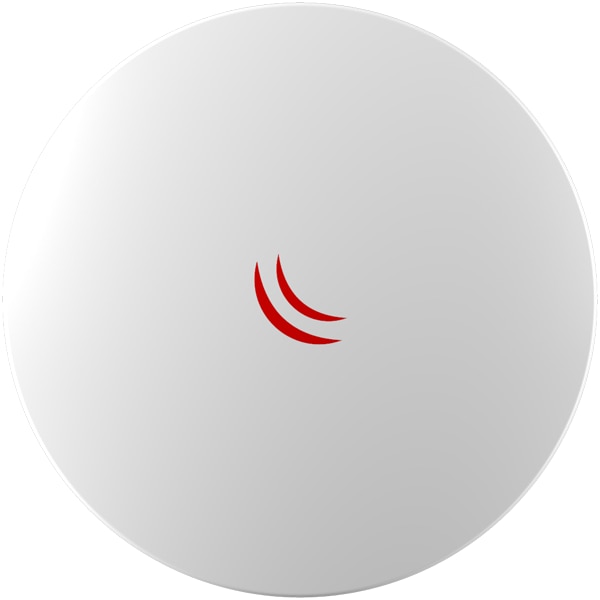

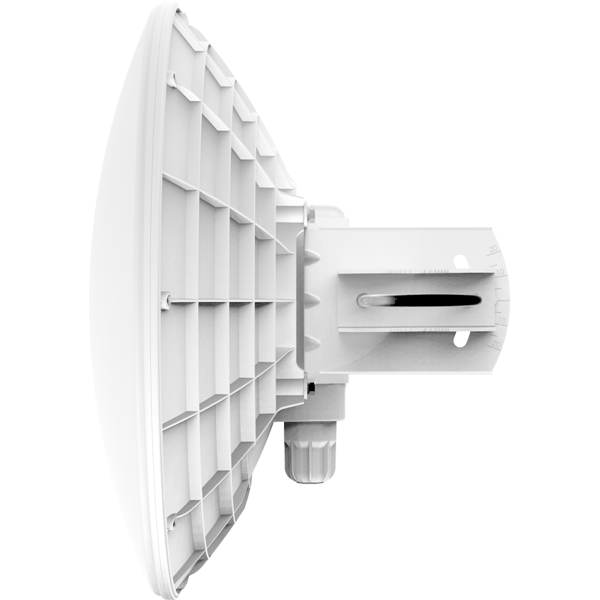

DynaDish 5 with 25dBi 5GHz 8 degree antenna with Dual Chain 802.11ac wireless, 720MHz CPU, 128MB RAM, Gigabit Ethernet, POE, PSU, pole mount, RouterOS L3
- SKU: RBDynaDishG-5HacD
$266.03 $274.26
Product Information
DynaDish 5 with 25dBi 5GHz 8 degree antenna with Dual Chain 802.11ac wireless, 720MHz CPU, 128MB RAM, Gigabit Ethernet, POE, PSU, pole mount, RouterOS L3
Specifications
Specifications RBDynaDishG-5HacD
| Product code | RBDynaDishG-5HacD |
| CPU Nominal Frequency | 720 MHz |
| CPU Core Count | 1 |
| Size of Ram | 128 MB |
| 10/100/1000 Ethernet Ports | 1 |
| Wireless | Built-in 5GHz 802.11ac, dual-chain |
| Antenna Gain | 25dBi |
| Antenna Beam Width | 8° |
| Wireless Chip Model | QCA9882-BR4A-R |
| PoE In | Yes |
| Supported Input Voltage | 11V - 60V passive PoE or 802.3af/at with unshielded cable |
| Voltage Monitor | Yes |
| PCB Temperature Monitor | Yes |
| CPU Temperature Monitor | No |
| Dimensions | Ø 404mm, height 175mm (without mount) |
| License Level | 3 |
| Operating System | RouterOS |
| CPU | QCA9557-AT4A-R |
| Max Power Consumption | 9W |
| Supported input voltage | 11 V - 60 V |
Wireless Specifications
| RATE | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 28 | -96 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
