MikroTik NetBox 5 ax Wi-Fi 6 PTP Radio AP CPE (US)
- SKU: L11UG-5HaxD-NB-US
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

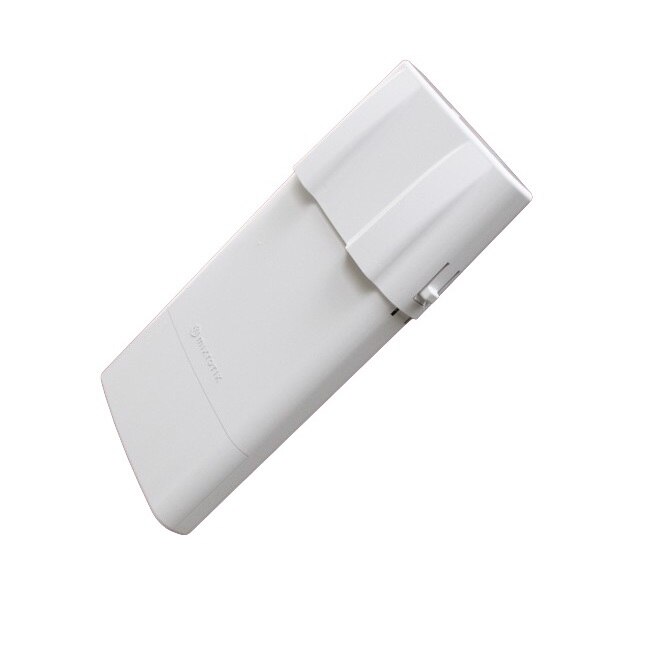

The MikroTik NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: Access Point, CPE, and Point-to-Point. The strong 5GHz Wi-Fi 6 radio comes with handy RP-SMA connectors to add an HGO-antenna-OUT for an excellent omnidirectional AP. Even try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers (18 miles).

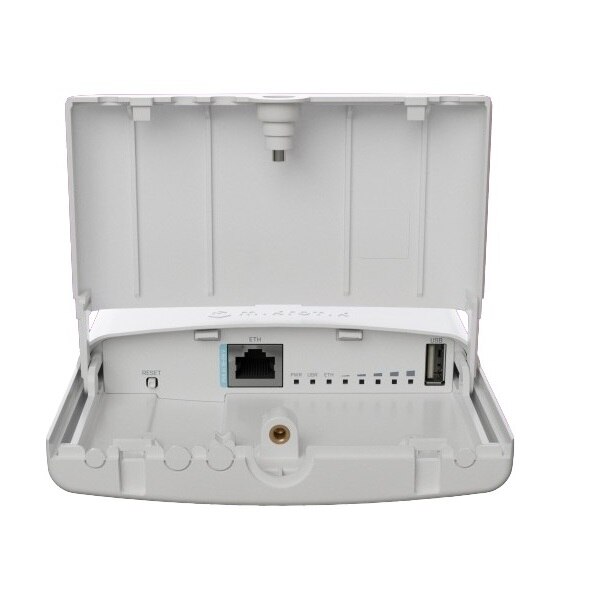

This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in. The case is designed to open effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
Product Features
- Modern Dual-Core ARM CPU
- Durable Outdoor Enclosure
- 5GHz Wireless
- Gigabit Ethernet Port
- PoE-in
- USB Type A Port
- 2x External SMA Antenna Connectors
- 5GHz Integrated Wireless Module
Product Includes
- 1x MikroTik L11UG-5HaxD-NB NetBox 5 ax
- 1x 24V 1.2A power adapter
- 1x Gigabit PoE injector
- 1x Hose clamp
- 1x DIN mount (K-27)
*It's important to note that their reliability may vary while longer links are feasible. Additionally, the distance achievable greatly depends on the antenna selected for use.
Specifications
Specifications
| CPU | Dual-Core IPQ-5010 800 MHz |
| CPU architecture | ARM |
| Size of RAM | 256 MB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| USB port | 1 USB 2.0 port typeA |
| Wireless band | 5 GHz |
| Wireless interface model | QCN-6102 |
| Wireless | 802.11a/n/ac/ax dual chain |

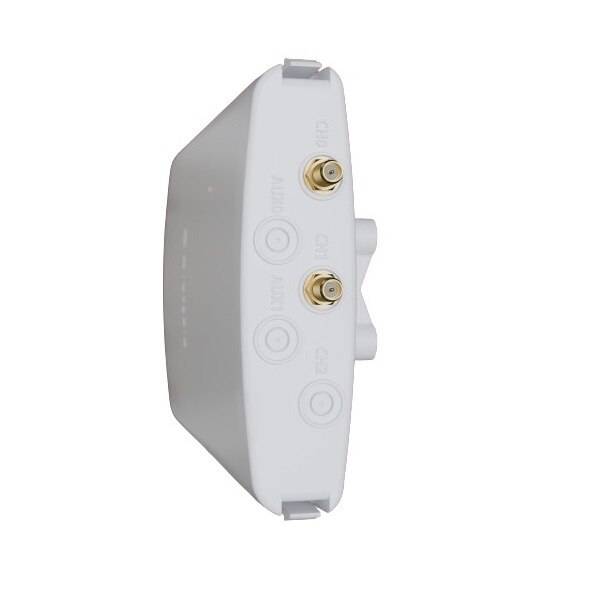

| Connector type | RP-SMA female (outside thread) |
| Extras | Beeper, signal and status LEDs, voltage and temperature sensors |
| Dimensions | 245 x 121 x 50 mm 9.64 x 4.76 x 1.96 inch |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| PoE-In Passive | PoE |
| PoE-in input Voltage | 18-28 V |
| Max USB current | 1.5 A |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max power consumption (without attachments) | 6 W |
| Max power consumption | 15 W |
