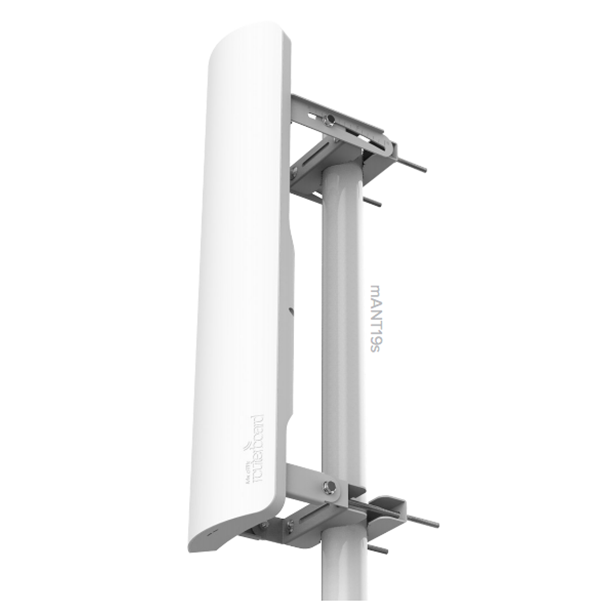

MikroTik mANT 19S Dual Polarized Antenna
- SKU: MTAS-5G-19D120
$134.81 $138.98
- Manufacturer: MikroTik
- Data Sheet / Spec Sheet: Download
Product Information

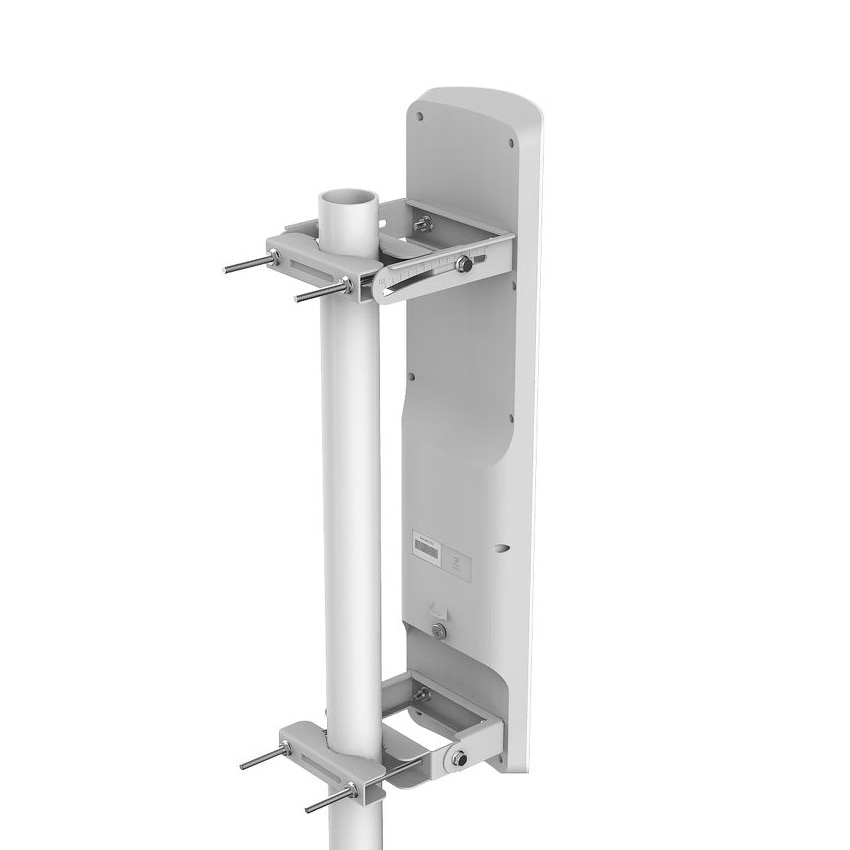

ISP Supplies supplies the MikroTik mANT 19S dual polarized 5GHz 19dBi 120 degree beamwidth antenna with (2) RP-SMA conntectors. It comes with metallic U bolt type mounts. The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.
Specifications
Specifications MTAS-5G-19D120
| Antenna gain | 19dBi |

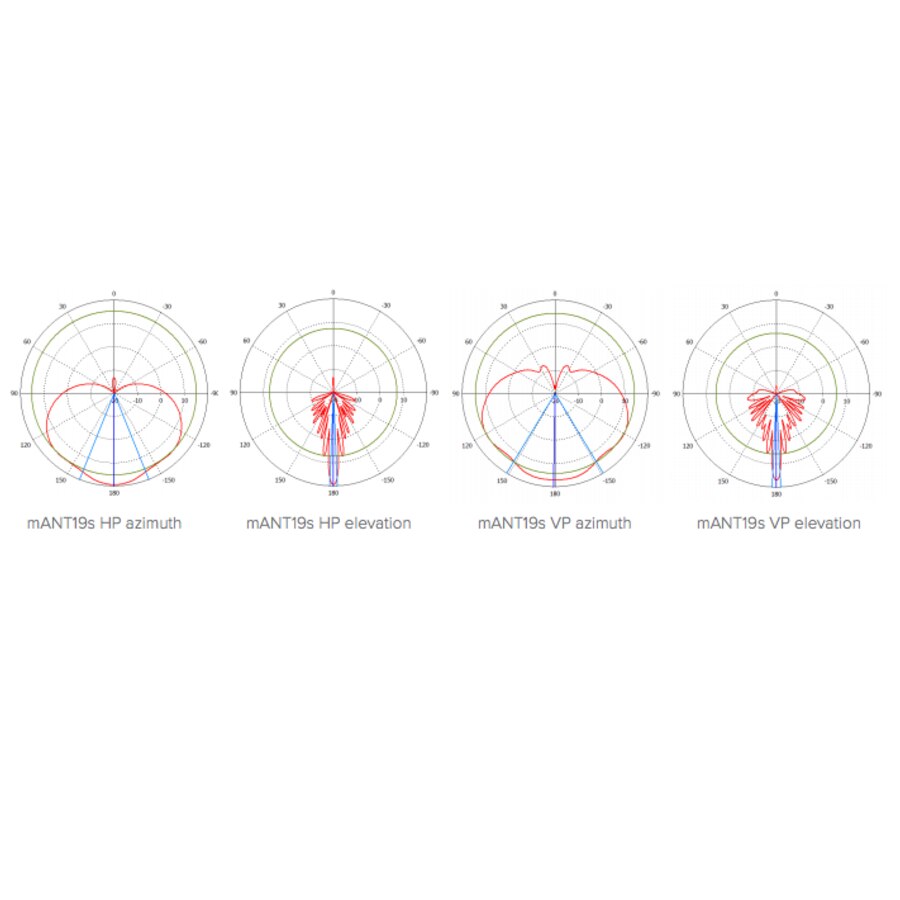

| Beamwidth | 120 deg (azimuth) 5 deg (elevation) |

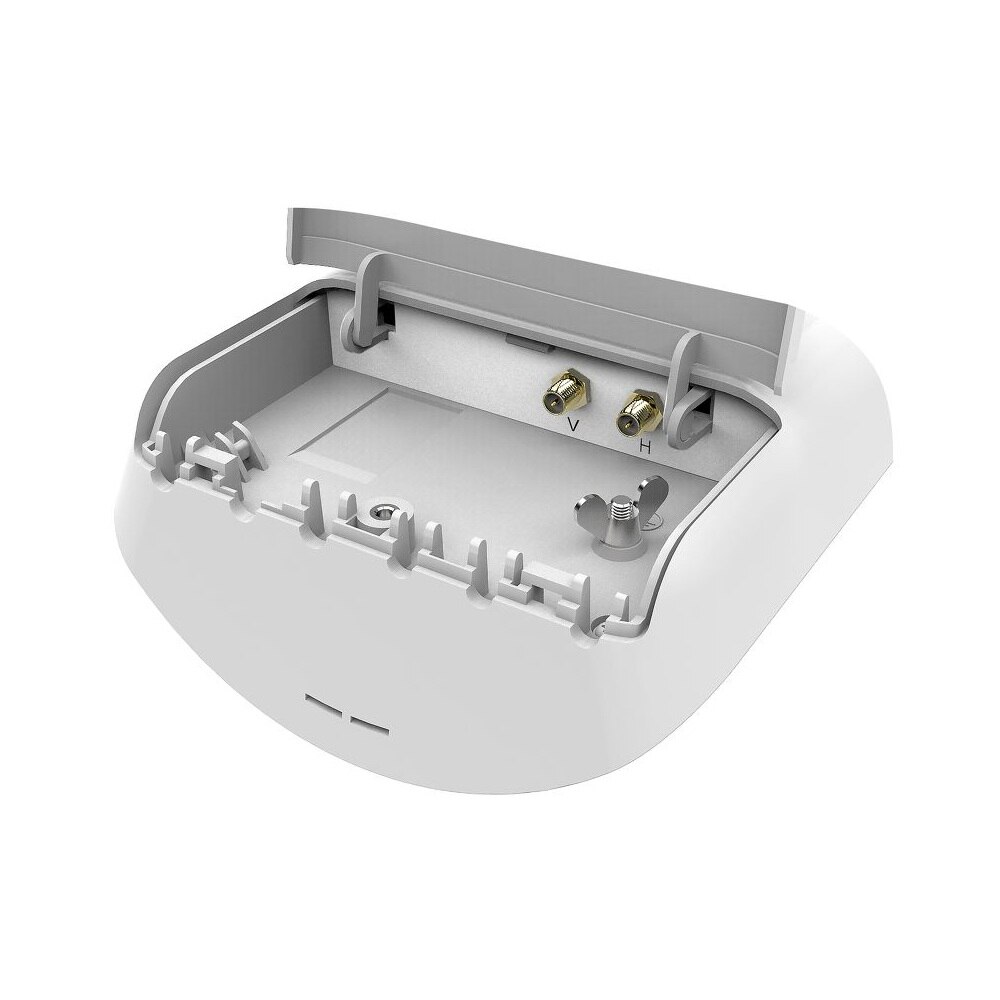

| Connector | two RP-SMA |
| Cross Polarization | >30 dB |
| Diameter x Depth | 152 x 598 x 78 mm |
| Frequency Range | 5.17 - 5.825 GHz |
| Front-to-Back Ratio | >30 dB |
| Polarization | Vertical and horizontal |
| Port to Port Isolation | >40 dB min |
| VSWR | 1.43 typ, 1.8 max |
| Weight | 1270 g |
