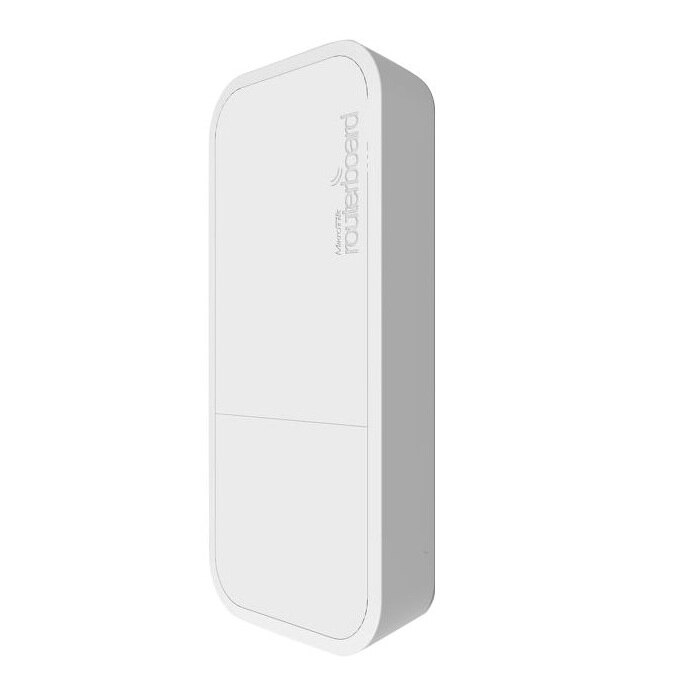

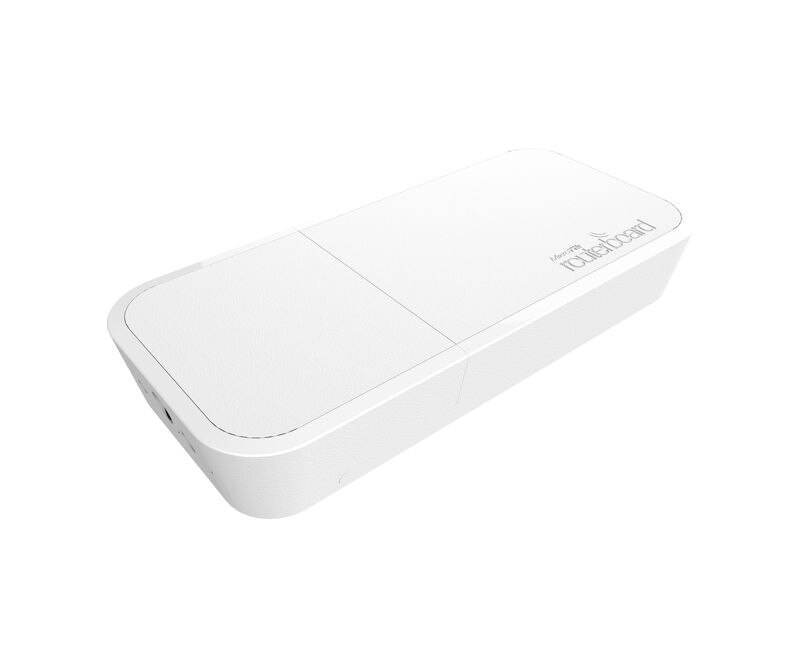

MikroTik wAP ac
- SKU: RBwAPG-5HacD2HnD
$121.01 $124.75
Product Information
wAP ac with 4 cores x 710MHz CPU, 128MB RAM, 2x Gbit LAN, built-in 2.4Ghz 802.11b/g/n Dual Chain wireless, built-in 5GHz 802.11an/ac Dual Chain wireless, RouterOS L4, white outdoor enclosure, PSU, PoE injector
Specifications
Specifications RBwAPG-5HacD2HnD
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | 185 x 85 x 30 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Wireless capabilities | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| AC speed | AC1200 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 2 |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| Max power consumption | 10 W |
| Max power consumption without attachments | 9 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Wireless specifications | ||
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 25 | -96 |
| 54MBit/s | 19 | -78 |
| MCS0 | 25 | -96 |
| MCS7 | 18 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 24 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 19 | -75 |
| MCS9 | 17 | -70 |
