Mimosa N5-X12, 4.9-6.4 GHz Modular Twist-On Antenna
- SKU: N5-X12 100-00086
$22.26 $25.04
- Manufacturer: Mimosa
- Data Sheet: Download
Product Information

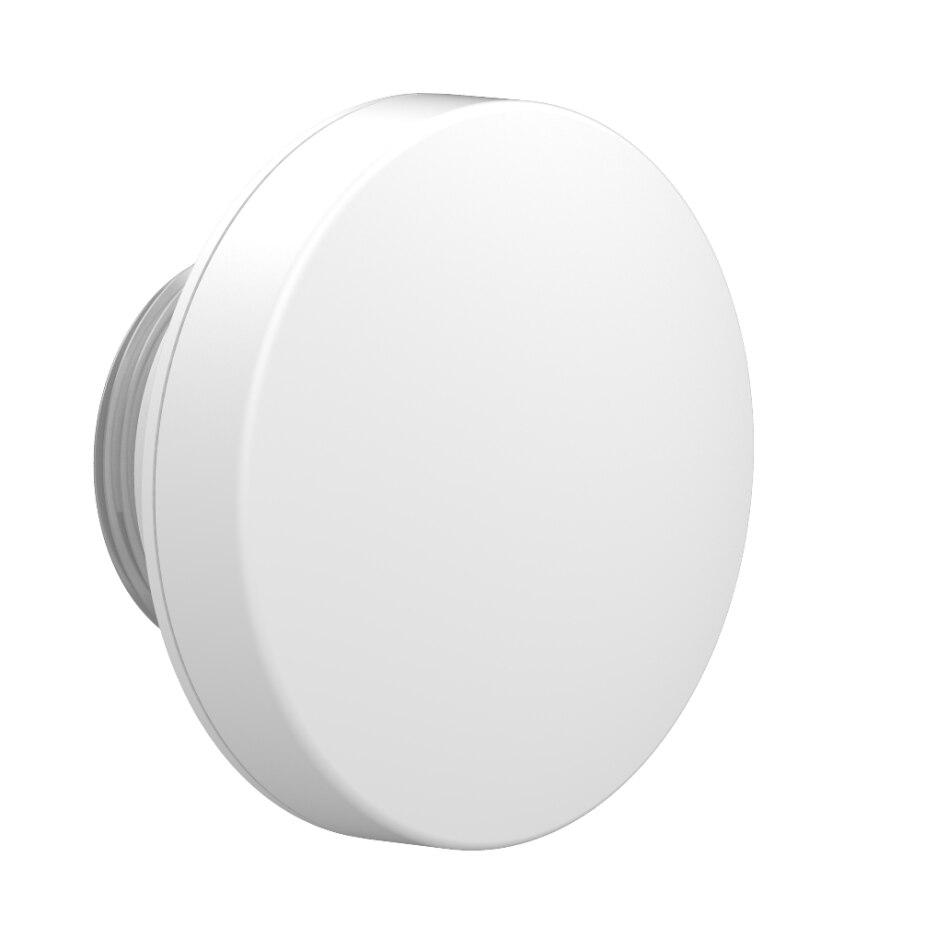

Mimosa N5-X12 Antenna. N5-X antennas provide the ultimate flexibility for point-to-point (PTP) and point-to-multipoint (PTMP) deployments. The ultra-rugged equipment provides extended frequency operation from 4.9 – 6.4 GHz, with best-in-class noise immunity. With four gain options (12, 16, 20, and 25 dBi), the Mimosa N5-X antennas make the Mimosa C5x the industry’s most flexible radio solution. Delivering the ultimate in flexibility and value, the C5x with the N5-X antennas is the go-to solution for 5 GHz PTP and PTMP deployments.
Specifications
Specifications Mimosa N5-X12
| Product | N5-X12 (horn) |
| Gain | 12 dBi |
| Polarization | Dual-slant 45º |
| Beamwidth, Symmetric (3 dB) | 38 dB |
| Front-to-Back Ratio (min) | 29 dB |
| Front-to-Side Ratio (min) | 27 dB |
| Weight of C5x + Antenna | TBD |
| Dimensions | Diameter: 76 mm (2.99”) Depth: 67 mm (2.63”) |
| Mount | Mimosa N5-X twist-on |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | TBD |
| Max Throughput | PTP: 700 Mbps IP (866 PHY) (requires PTP feature key) PTMP: 500 Mbps IP (866 PHY) (requires PTMP speed feature key to go faster than 100BASE-T) |
| Wireless Protocols | Mimosa SRS; WiFi Interop |
| Modes | PTP Backhaul (requires feature key); PTMP Client |
| Radio | |
| MIMO and Modulation | 2x2:2 MIMO OFDM, up to 256 QAM |
| Bandwidth | 20/40/80 MHz channels, tunable to 5 MHz increments for Mimosa SRS and WiFi Interop mode |
| Frequency Range | PTP/PTMP: 4900–6400 MHz (restricted by country of operation) |
| Max Output Power | 27 dBm |
| Sensitivity (MCS0) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 9.2 W average; 12.9 W max |
| System Power Method | Passive POE (24-56 VDC |
| PoE Power Supply | Passive POE compliant, 24-56 V Power over Ethernet supply (not included) |
| Physical | |
| Dimensions | Height: 175 mm (6.89”) Width: 70 mm (2.75”) Depth: 61 mm (2.40”) |
| Weight | 0.4 kg (0.89 lbs) |
| RF Connector Type | Mimosa N5-X twist-on |
| Enclosure Characteristics | Outdoor, die-cast aluminum, UV stabilized paint |
| Mounting | Dual attached pole mount straps |
| Grounding | Ground lug |
| Wind Survivability | 200 km/h (125 mph) |
| Environmental | |
| Outdoor Ingress Protection Rating | IP55 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4,420 m (14,500’) max |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Regulatory and Compliance | |
| Approvals | FCC Part 15.405 and Part 90Y CE/ETSI |
| EMI/Safety | FCC Part 15 Class B EN 55022 Class B IEC61000 UL/IEC 60950-2 IEC/EN 60905-1 |
| WEEE/ROHS Compliance | Yes |
