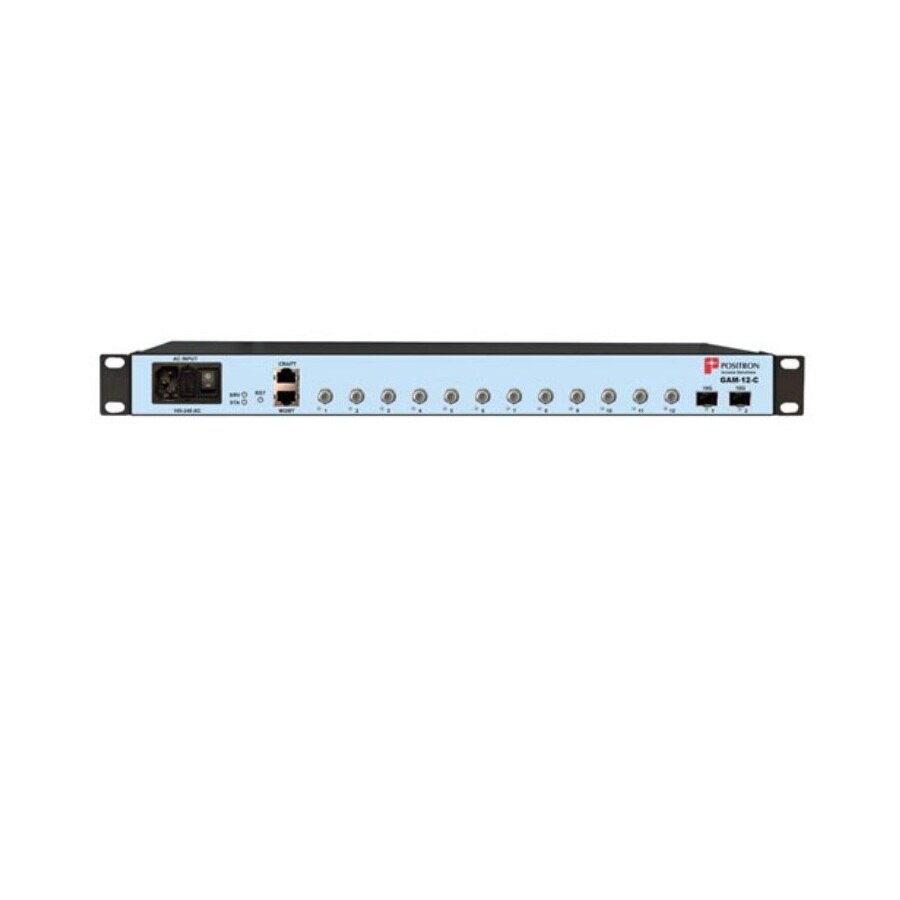

Positron Access G.hn Access Multiplexer GAM
- SKU: GAM-12-C
- Manufacturer: Positron Access
- Data Sheet: Download
Product Information
The G.hn Aggregation Multiplexer (GAM) by Positron Access offers a cost-effective and efficient alternative to traditional fiber technology for providing Gigabit Internet access to subscribers in Multi-Dwelling Units (MDUs) and Single Family Unit (SFU) homes. Rather than costly and complex retrofitting with fiber, the GAM leverages existing telephone or coaxial infrastructure to deliver near symmetrical Gigabit services.
This is made possible through the use of the ITU-T G.9960 G.hn Wave-2 standard, which enables the delivery of advanced services such as Gigabit High Speed Residential Internet and 4K IPTV without the high capital and operational expenses associated with fiber retrofitting. The solution is highly scalable and MEF CE 2.0 compliant, making it an ideal choice for Business Ethernet services in an MDU and/or MTU deployment.
Product Applications- Telecommunication Companies
- Municipalities and Co-ops
- Internet Service Providers and Wireless ISPs
- Property Managers
- Cable Operators and MSOs
- SFP+ offer versatile support for Active Ethernet and for GEPON, 10GEPON, NG-PON2 and XGS-PON via external ONU/ONT devices
- Also compatible with 3rd party PON SFP ONT modules>
- 10 GigE SFP+: 2
- G.hn Ports / Type: 12 COAX
- Out-of-band Management Ports: 1 x 10/100/1000BaseT, 1 x serial
- Positron GAM-24-C Multiplexer
Specifications
Specifications GAM-12-C
| 10 GigE SFP+ | 2 |
| G.hn Ports / Type | 12 Coax (F-type) |
| Out-of-band Management Ports | 1 x 10/100/1000BaseT, 1 x serial |
| Dimensions | 17.4” Width x 1.73” Height x 10.0” Depth / 442 mm W x 44 mm H x 254 mm D |
| Power Source | 100-240 Vac / 50~60 Hz |
| Certification | CE Mark, FCC Part 15 Class A |
| perating Temperature | 0ºC to 45ºC |
| Storage Temperature | 0ºC to 45ºC |
| Operating Humidity | 10% to 90% relative, non-condensing |
