Positron Access MRX Outdoor 4-Port Twisted Pair MIMO G.hn Access Multiplexer
- SKU: GAM-4-MRX
$2,641.06
- Manufacturer: Positron Access
- Data Sheet: Download
Product Information
The Positron G.hn Access Multiplexer (GAM) family now includes rugged versions for deployment in harsh environments (outdoor) where there is no local power source. These GAM devices obtain their power from the G1001-MR over the copper wiring or G1001-CR over the COAX cabling. The outdoor GAM devices offer the same feature and management capabilities as their indoor counterpart. They optimize coverage of Gigabit Internet services in an MDU and operate over twisted-pair cabling in Point-to-Point mode while operation over a coax infrastructure is in Point-toMultipoint mode where each COAX port can serve up to sixteen (16) G1001-CR devices.
Product Applications- MDUs
- Telcos
- Cable Operators
- Internet Service Providers
- Municipalities
- Reverse Power Feed: Complies with ETSI TS 101 548 v.2.2.1 in SR3 mode
- Power Source: Reverse Power Fed from G1001-MR or G1001-CR
- Alternate Power Source: power connector inside the GAM-4-CRX to temporarily power the GAM device in the absence of subscribers to facilitate the initial provisioning of the GAM and to validate the uplink connection.
- Layer 3 Support:
- Secure Shell (SSH) Protocol: SSH secures Telnet traffic in and out of the switch, SSH v1, v2 are supported
- Secure Sockets Layer (SSL): SSL encrypts the HTTP traffic, allowing advanced secure access to the browser-based management GUI in the switch

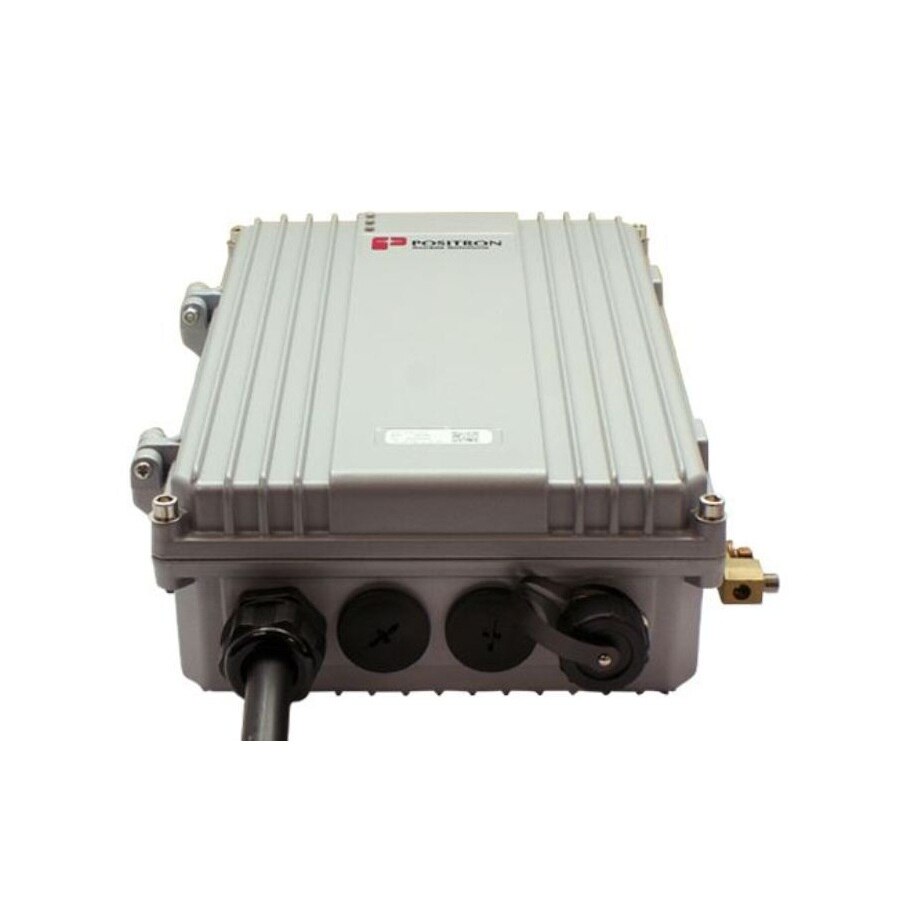

- Positron GAM-4-MRX Multiplexer
Specifications
Specifications GAM-4-MRX
| Dimensions | 8” W x 12” H x 3” D / 200 mm W x 300 mm H x 75 mm D |
| Weight | 6.4 lbs / 2.9 kg |
| Environmental | IP-67 rated |
| Operating Temperature | -40°C to +65°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | Up to 95% relative, non-condensing |
| Certifications | CE Mark, FCC Part 15 Class A |
| Ports | • (4) MIMO (MIMO-Copper) • (1) SFP+: offers versatile support for Active Ethernet and for GPON, EPON, 10GEPON, NGPON2 and XGS-PON via external ONU/ONT devices |
| G.hn Standards | • G.hn Wave-2 Domain Master on all GAM ports • Based on GigaWire Alliance specification and fully compliant with the following ITU-T standards: • G.9960 Amendment 2 - System Architecture and PHY Layer • G.9961 Data Link Layer • G.9962 Management • G.9964 PSD |
| Layer 3 Support | • Static routing of IPv4 unicast traffic • Static routing of IPv6 unicast traffic |
| Secure Shell (SSH) Protocol | SSH secures Telnet traffic in and out of the switch, SSH v1, v2 are supported |
| Secure Sockets Layer (SSL) | SSL encrypts the HTTP traffic, allowing advanced secure access to the browser-based management GUI in the switch |
| IEEE 802.1X | • IEEE 802.1X: RADIUS authentication, authorization and accounting, MD5 hash, single / multiple host mode and single / multiple sessions • Supports IGMP-RADIUS based 802.1X Dynamic VLAN assignment |
| RADIUS/ TACACS+ | • Supports RADIUS and TACACS+ authentication • G.hn Aggregation Multiplexer acting as a RADIUS client |
| Layer 2 Isolation Private VLAN Edge (PVE) | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN, supports multiple uplinks |
| IP Source Guard | Prevents datagram with spoofed addresses from being in the network |
| Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast stormon a port |
| ACLs | • Supports up to 256 entries • Drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP) / IP precedence, TCP / UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message • Protocol (ICMP) packets, IGMP packets, TCP flag |
| Hardware Priority Queue | Support 8 hardware queues per port |
| Scheduling | • Strict priority and Weighted Round-Robin (WRR) • Queue assignment based on DSCP and class of service (802.1p/ CoS) |
| Classification | Port based; 802.1p VLAN priority based; IPv4/IPv6 precedence/ type of service (ToS) / DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS |
| Rate Limiting | Ingress policer; egress shaping and rate control; per VLAN, per port and flow based |
| IPv6 Support | Web/ SSL, Telnet/ SSH, ping, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, Syslog, DNS Client, protocol based VLANs |
| Management | |
| Web GUI Interface | • Built-in configuration utility for browser-based device configuration (HTTP/ HTTPs). • Supports configuration, system dashboard, maintenance and monitoring |
| Firmware Upgrade | • Web browser upgrade (HTTP/ HTTPs) and FTP • Secure upgrade through console port |
| Dual Firmware Image | Dual image and firmware partition provides independent primary and secondary OS files for backup while upgrading. Each firmware image has its corresponding firmware partition |
| SNMP | SNMP version1, 2c and 3 with support for traps and SNMP version 3 user-based security model (USM) |
| Remote Monitoring (RMON) | Embedded RMON software agent supports RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis |
| IPv4 and IPv6 Dual Stack | Coexistence of both protocol stacks to support a seamless migration |
| Port Mirroring | Traffic on a port can be mirrored to another port for Legal Interception (CALEA) or analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported |
| Network Time Protocol | Network Time Protocol (NTP) for clock synchronization over packet switched networks |
| Discovery | Link Layer Discovery Protocol (LLDP) (IEEE 802.1ab) with LLDP-MED extensions |
