ZoneDirector 1200, licensed for up to 5 Ruckus Access Points. ZD1200 can be upgraded to support up to 75 APs with AP license upgrades if using software release pre ZD10.0 . If using software ZD10.0 and above, ZD1200 can be upgraded to support up to 150 APs with license upgrades.
- SKU: CC-3031BK-6D
$171.94
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
Ruckus Wireless Inc. ZoneDirector 1200, licensed for up to 5 Ruckus Access Points. ZD1200 can be upgraded to support up to 75 APs with AP license upgrades if using software release pre ZD10.0 . If using software ZD10.0 and above, ZD1200 can be upgraded to support up to 150 APs with license upgrades.
Specifications

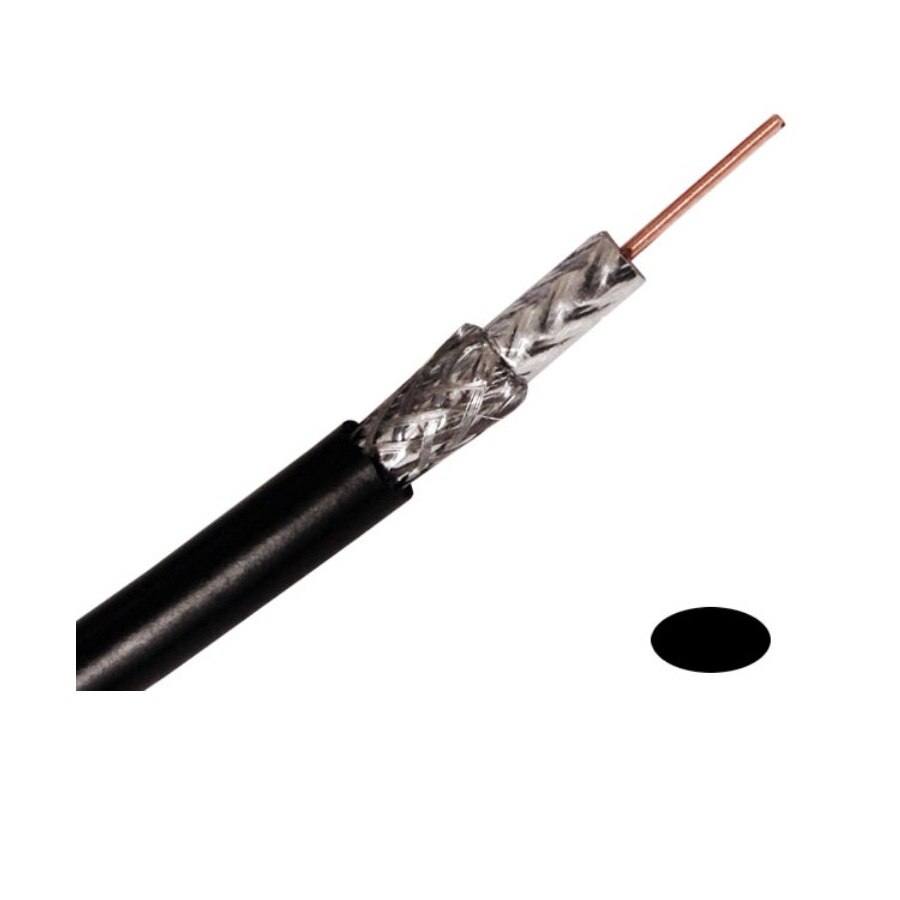

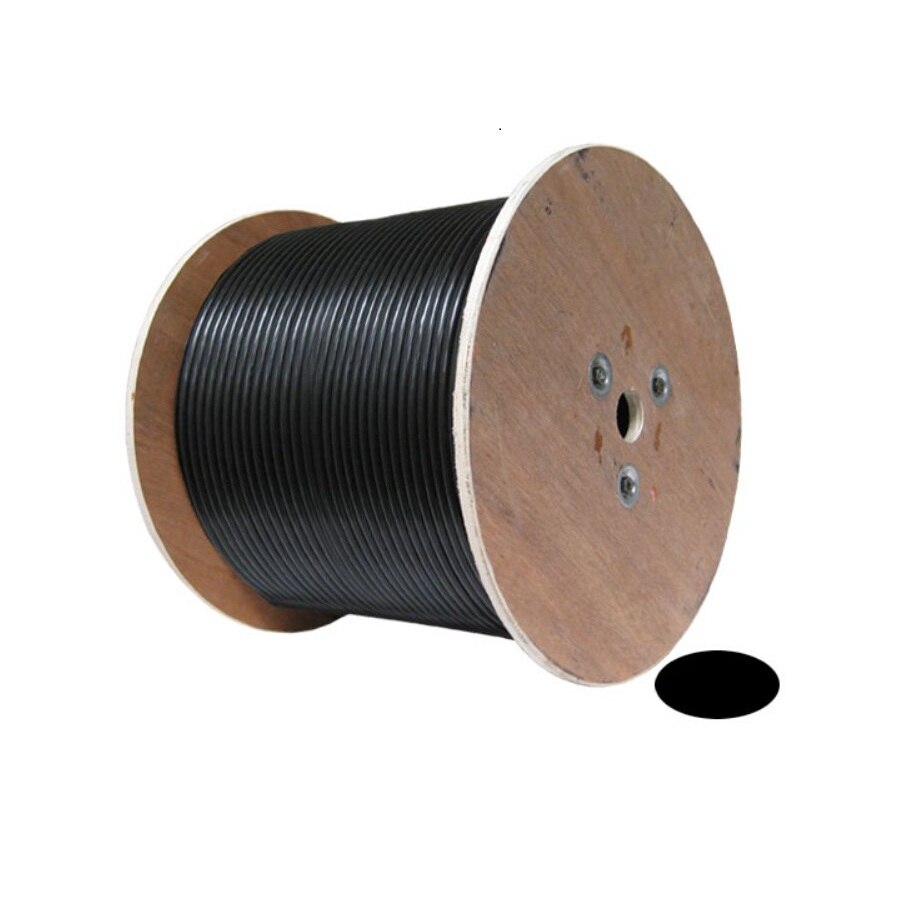

Specifications CC-3031BK-6D
| Physical | |
| Conductor Size | 18 AWG |
| Conductor Material | Solid Copper Clad Steel (CCS) |
| Dielectric Material | Foam |
| Shielding | 100% AL Foil + 60% AL Wire Braid |
| Outer Jacket Material | PE |
| Electrical | |
| Nominal Impedance | 75 Ohm |
| Nominal Velocity of Propagation | 83% |
| Nominal Capacitance | 16.2 Pf/ft |
| Nominal Conductor DC Resistance DCR @ 20°C | 102 Ohm/km |
| Maximum Operating Voltage-UL | 350 VRMS |
| Mechanical | |
| Storage Temperature Range | N/A |
| Installation Temperature Range | N/A |
| Operating Temperature Range | -30°C to +60°C |
| Maximum Recommended Pulling Tension | 110 lbs |
