Product Information

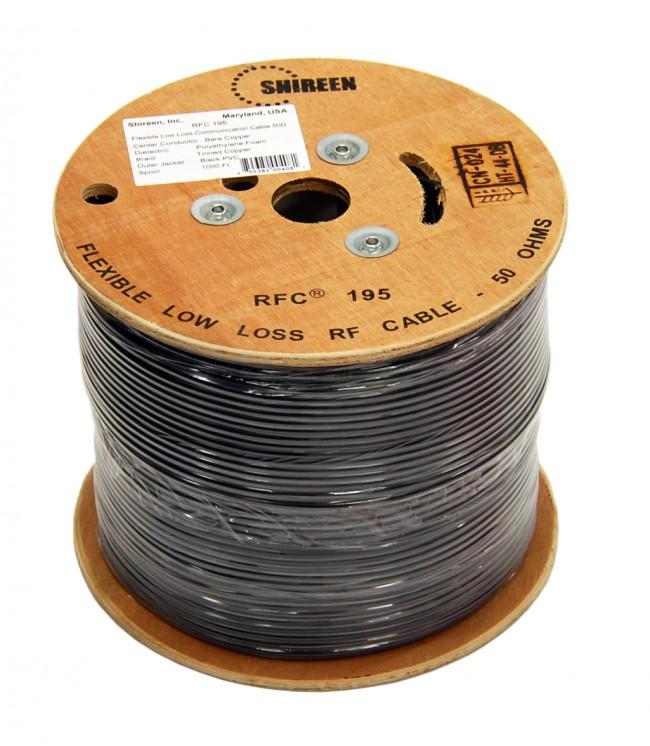

Shireen RFC195-1000 LMR195 eq cables, 1000ft spool
Shireen’s latest RFC® series of low loss cables offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden.
RFC®, Registered trademark of Shireen Inc
LMR®, Registered trademark of Times Microwave Systems
- Generic Name: RFC195
- Cable Type: LMR®
- Flex Type: Flexible
- Impedance: 50 Ohm
- Outer Jacket: PVC
- Dimensions (WxLxH): 11 x 11 x 9
- Weight: 26 Lb
Specifications
Specifications RFC195-1000
Center Conductor
| Min. Break Strength (N) | 293 |
| Conductor Dia.(+/-0.01mm) | 0.94 |
Insulation
| Insulation Dia.(+/-0.10mm) | 2.80 |
| Color | Neutra |
| Centricity (%) | ≥ 90 |
| Adhesion | 10 to 100N @ 25mm |
1st Outer Conductor
| Overlapping | ≥ 115% |
| Dia.(+/-0.10mm) | 2.95 |
2nd Outer Conductor
| Conductor Dia.(+/-0.01mm) | 0.11 |
| No. of Wires | 112 |
| Coverage (+/-3%) | 90 |
Outer Jacket
| Outer Dia (+/-0.10mm) | 4.95 |
| Tensile strength | ≥ 13.5 N/mm2 |
| Elongation at break | ≥ 300 % |
| Adhesion | 20 to 80N @ 50mm |
