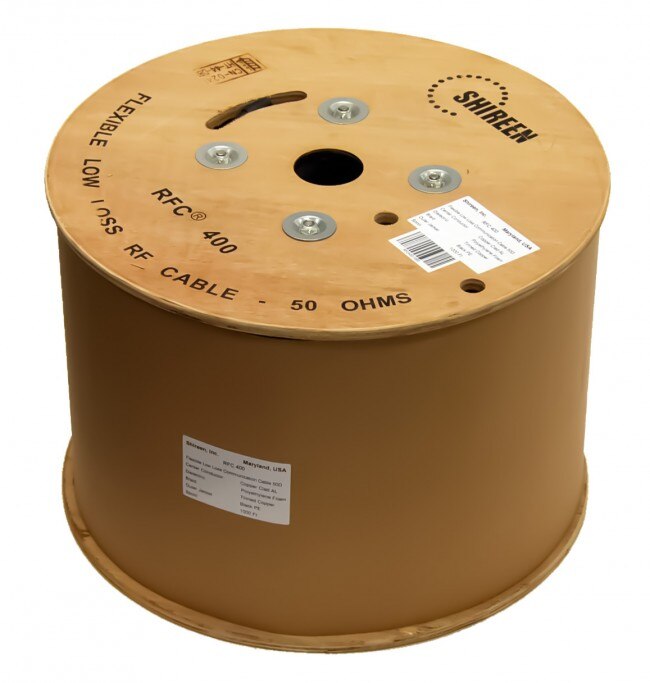

Shireen RF COAX LMR400 Equivalent Cables 1000FT Spool
- SKU: RFC400-1000
$1,054.23 $1,264.80
- Manufacturer: Shireen
- Data Sheet: Download
Product Information
Shireen’s latest RFC Series of low loss cables offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden. Uses same connectors as RG213/RG8U Ideal for Jumper Assemblies in Wireless Communications Systems Applications include: Mobile Antennas, GPS, WLL, WLAN, LMR, WISP, SCADA, WiMax.
Specifications
Specifications RFC400-1000
Center Conductor
| Min. Break Strength (N) | 640 |
| Conductor Dia.((+/-0.02mm) | 2.74 |
Insulation
| Insulation Dia.(+/-0.10mm) | 7.24 |
| Color | Neutra |
| Centricity (%) | ≥ 90 |
| Adhesion | 10 to 100N @ 25mm |
1st Outer Conductor
| Overlapping | ≥ 115% |
| Dia.(+/-0.10mm) | 7.39 |
2nd Outer Conductor
| Conductor Dia.(+/-0.01mm) | 0.15 |
| No. of Wires | 192 |
| Coverage (+/-3%) | 95 |
Outer Jacket
| Outer Dia (+/-0.10mm) | 10.29 |
| Tensile strength | ≥ 16.2 N/mm2 |
| Elongation at break | ≥ 700 % |
| Adhesion | 20 to 80N @ 50mm |
