TP-Link Omada 5-Port 10G Multi-Gigabit Desktop Switch
- SKU: DS105X
Product Information
TP-Link DS105X
Omada 5-Port 10G Multi-Gigabit Desktop Switch
Multiple Application Scenarios
- Enjoy 10G Connections: 10G allows you to fully utilize high bandwidth such as Wi-Fi 6 Aps with 10G wired connections.
- Max Transfer Rate: Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.
- Ultra Smooth LAN: No more lag in your LAN. Experience unparalleled speed and lower latency and prioritize traffic with QoS. Perfect for gaming and collaborations.
- Entertainment: Enjoy a fun game time and 8K videos with friends and family, without having to ever worry about buffering again.
Flexible Deployment Options

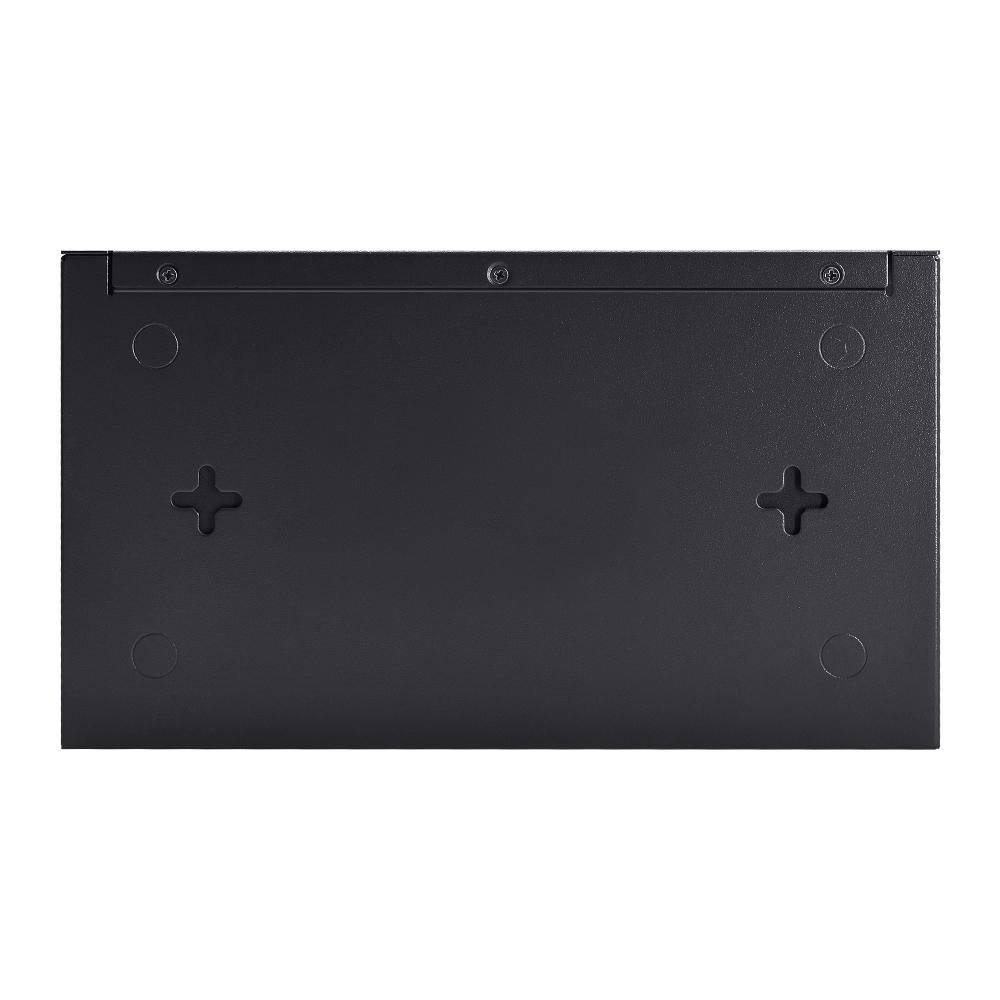

The versatile mounting system gives you the flexibility to place the 10G switch on a desktop or mount it to a wall.
Features:
- Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity.
- Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
- Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.
- Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
- Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.
- Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.
- Plug and Play. No configuration or central management required.
Specifications
Specifications DS105X
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Interface | • 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports • Auto-Negotiation • Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 2.0 A) |
| LED Indicator | • System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 8.9×5.2×1.4 in (226×131×35 mm) |
| Max Power Consumption | 21.4 W |
| PERFORMANCE | |
| Switching Capacity | 100 Gbps |
| Packet Forwarding Rate | 74.4 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 2 Mb |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
| Transfer Method | Store and Forward |
| Certification | CE, FCC ,RoHS |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
