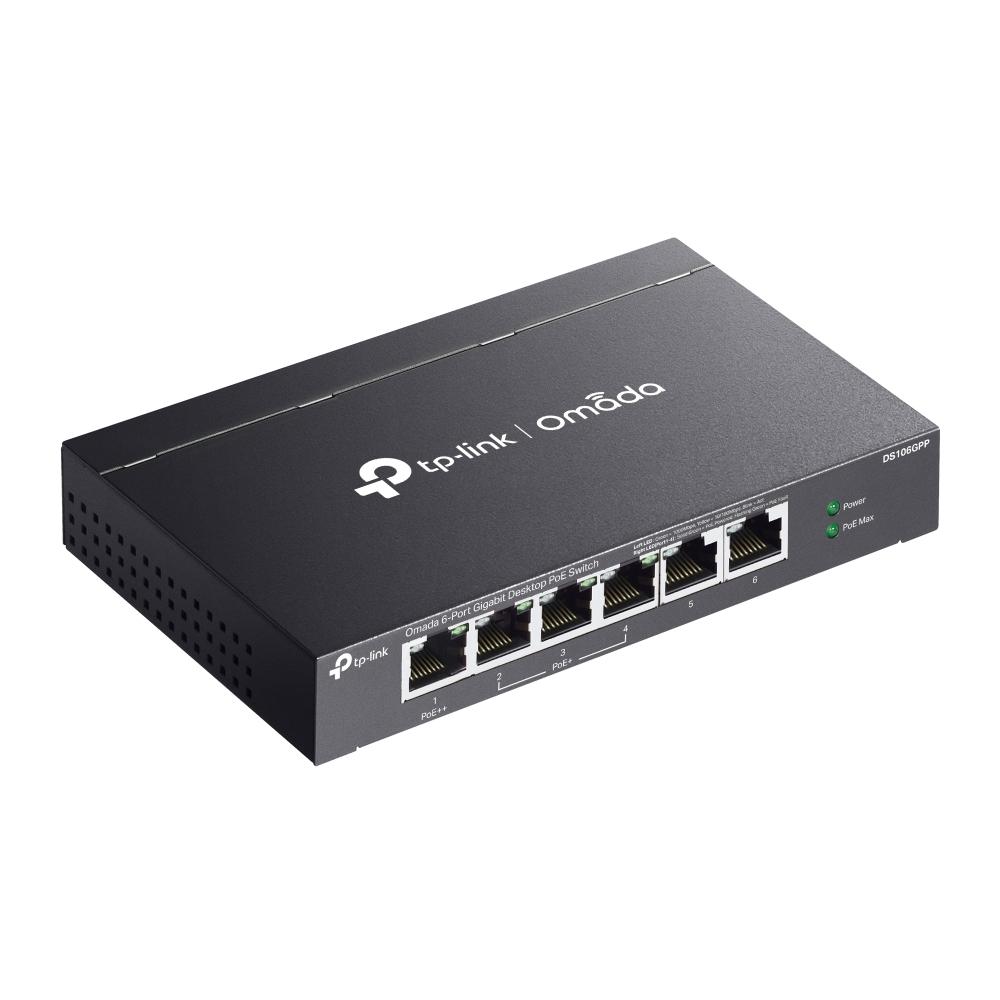

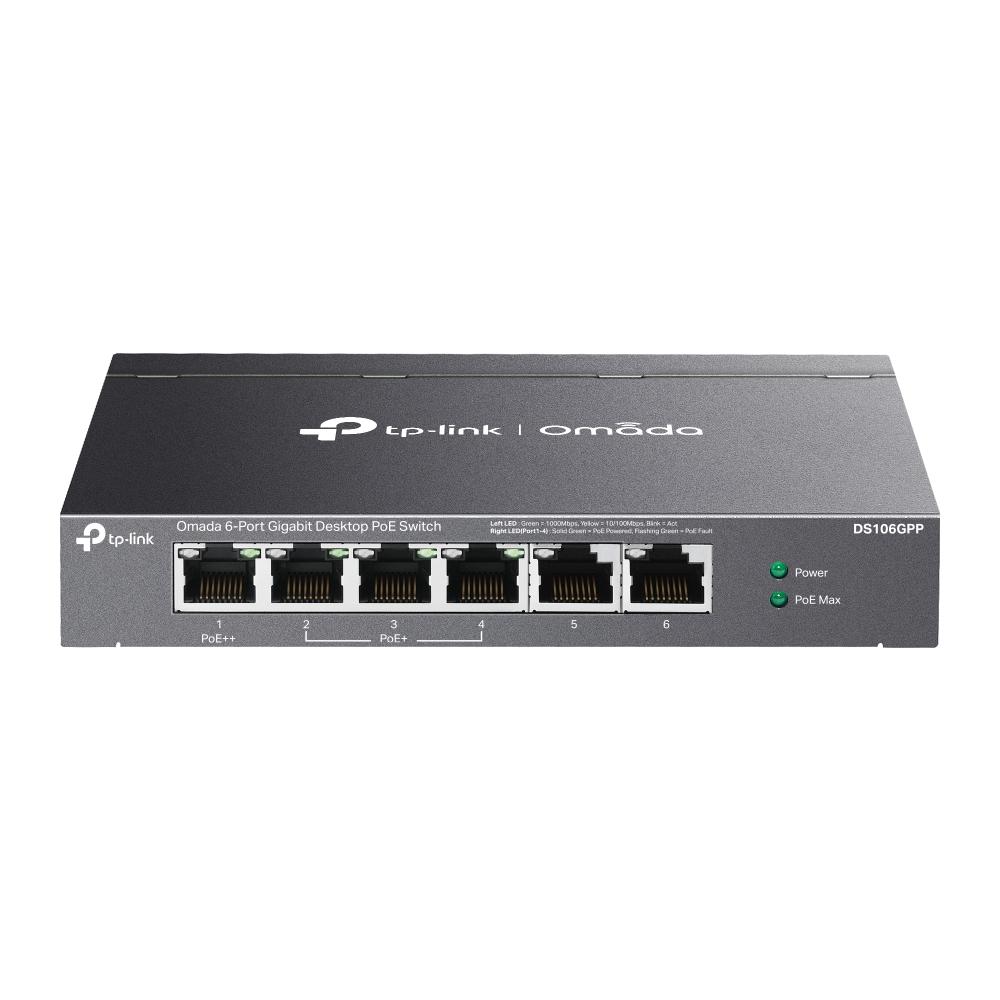

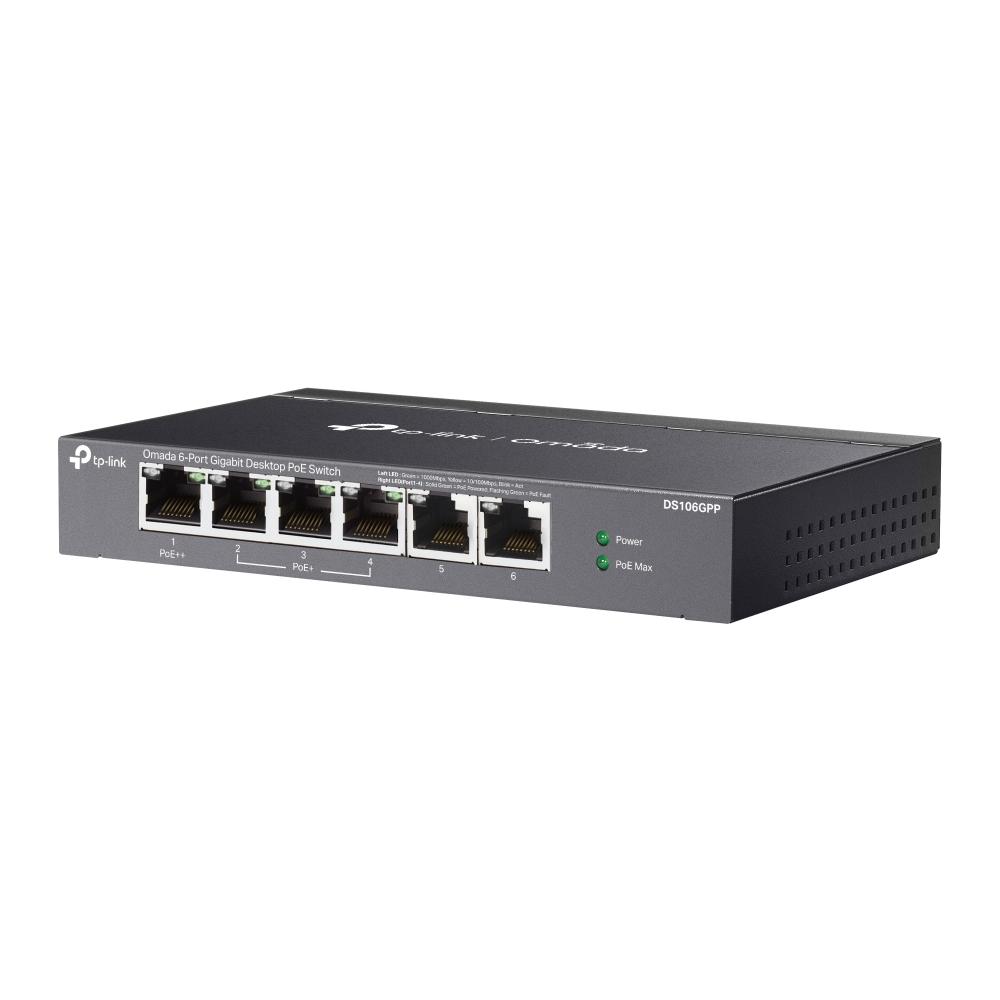

TP-Link Omada 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
- SKU: DS106GPP
$110.06
Product Information
Omada 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ PORT: 1× Gigabit PoE++ Port, 3× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports SPEC: 802.3af/at/bt type3, 64 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting for Port1-2, PoE Auto Recovery for Port1-4, Plug and Play
Specifications
Specifications DS106GPP
| HARDWARE FEATURES | |
| Interface | • 6× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 8.928 Mpps |
| PoE Ports (RJ45) | • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at • Power Supply: 64 W |
| Mac Address Table | 4K |
| Switching Capacity | 12 Gbps |
| Dimensions ( W x D x H ) | 6.2x4.0x1.0 in (158x101x25 mm) |
| Max Power Consumption | • 4.75 W (220/50 Hz. no PD connected) • 71.46 W (220/50 Hz. with 64 W PD connected) |
| Max Heat Dissipation | • 16.20 BTU/h (220/50 Hz. no PD connected) • 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
| SOFTWARE FEATURES | |
| Advanced Features | • Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) |
| Transfer Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
