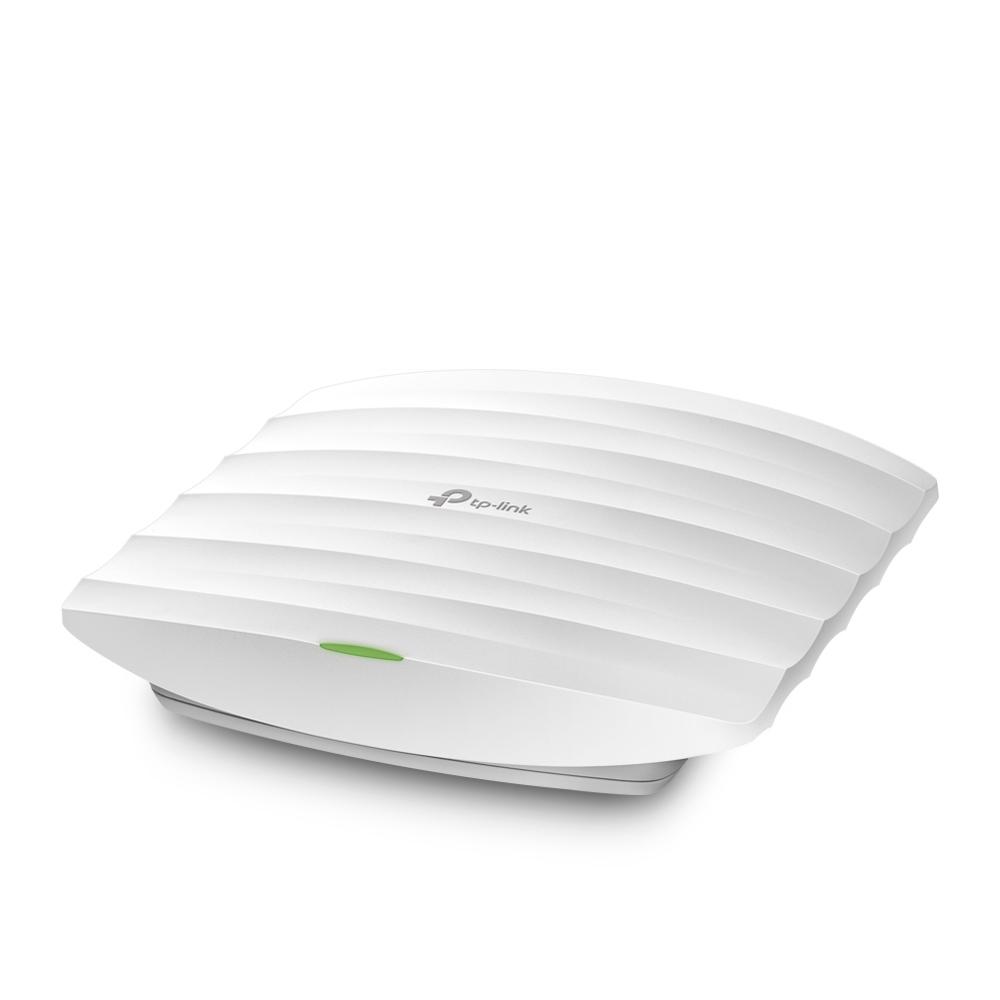

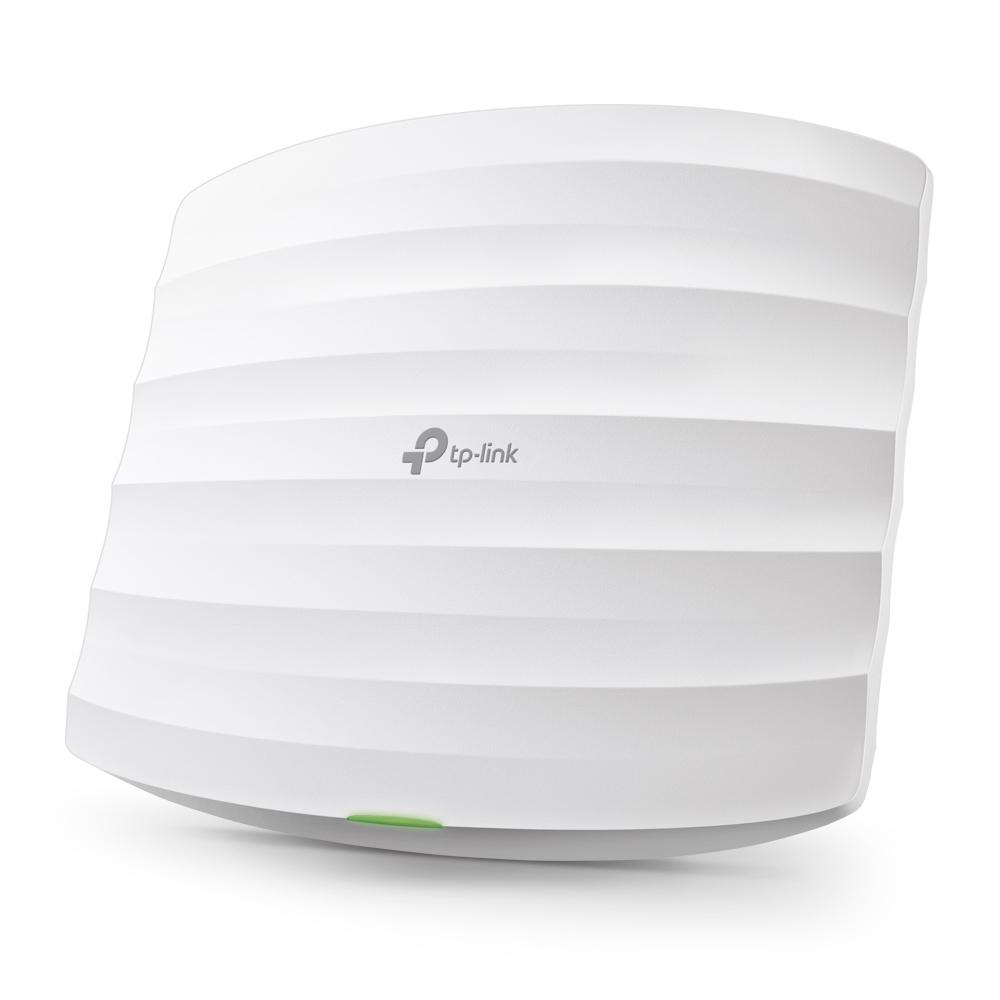

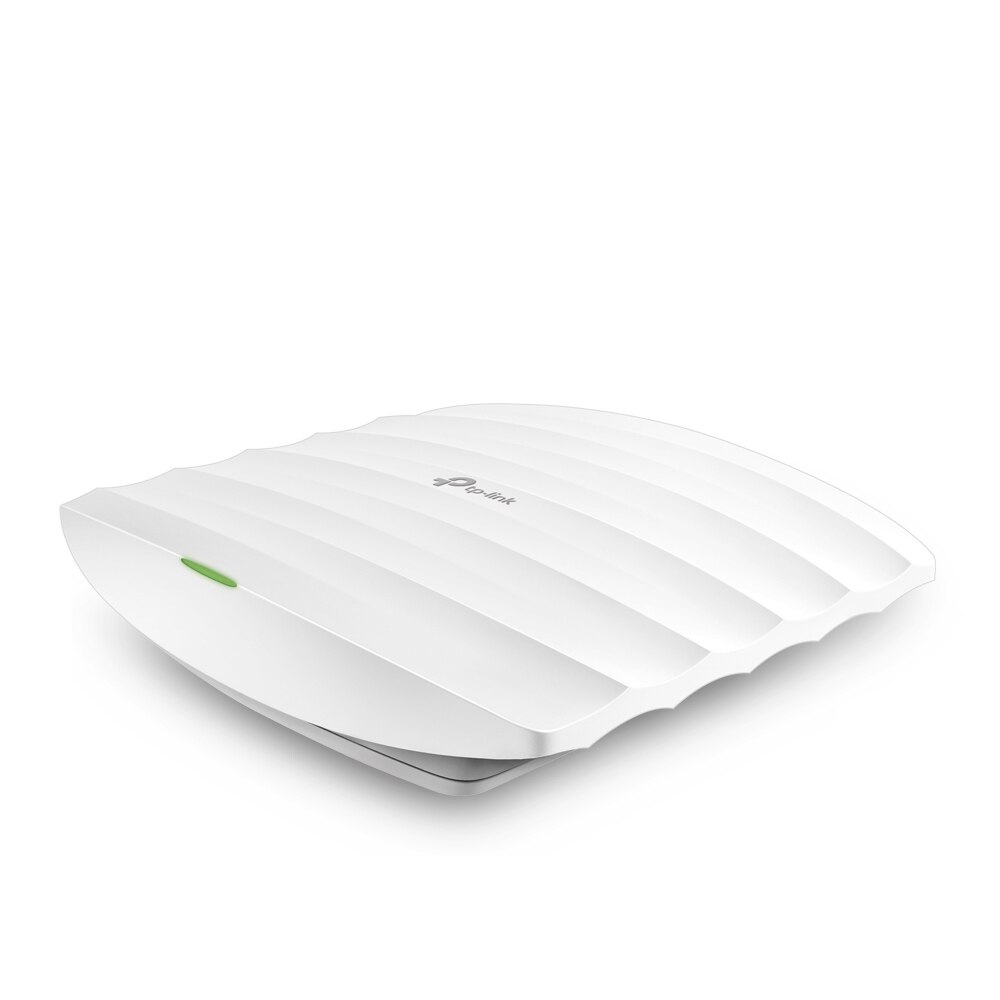

TP-Link AC1750 Wireless Dual Band Gigabit Ceiling / Wall Mount Access Point
- SKU: EAP245
$110.06
Product Information
AC1750 Wireless Dual Band Gigabit Ceiling/Wall Mount Access Point, Qualcomm, 450Mbps at 2.4GHz + 1300Mbps at 5GHz, 802.11a/b/g/n/ac, 2 Gigabit LAN, 802.3af and Passive PoE Supported (PoE Injector included), Centralized/Cloud Management, Band Steering, Load Balance, Rate Limit, Captive Portal, 6 Internal Antennas
Specifications
Specifications EAP245_V3
| HARDWARE FEATURES | |

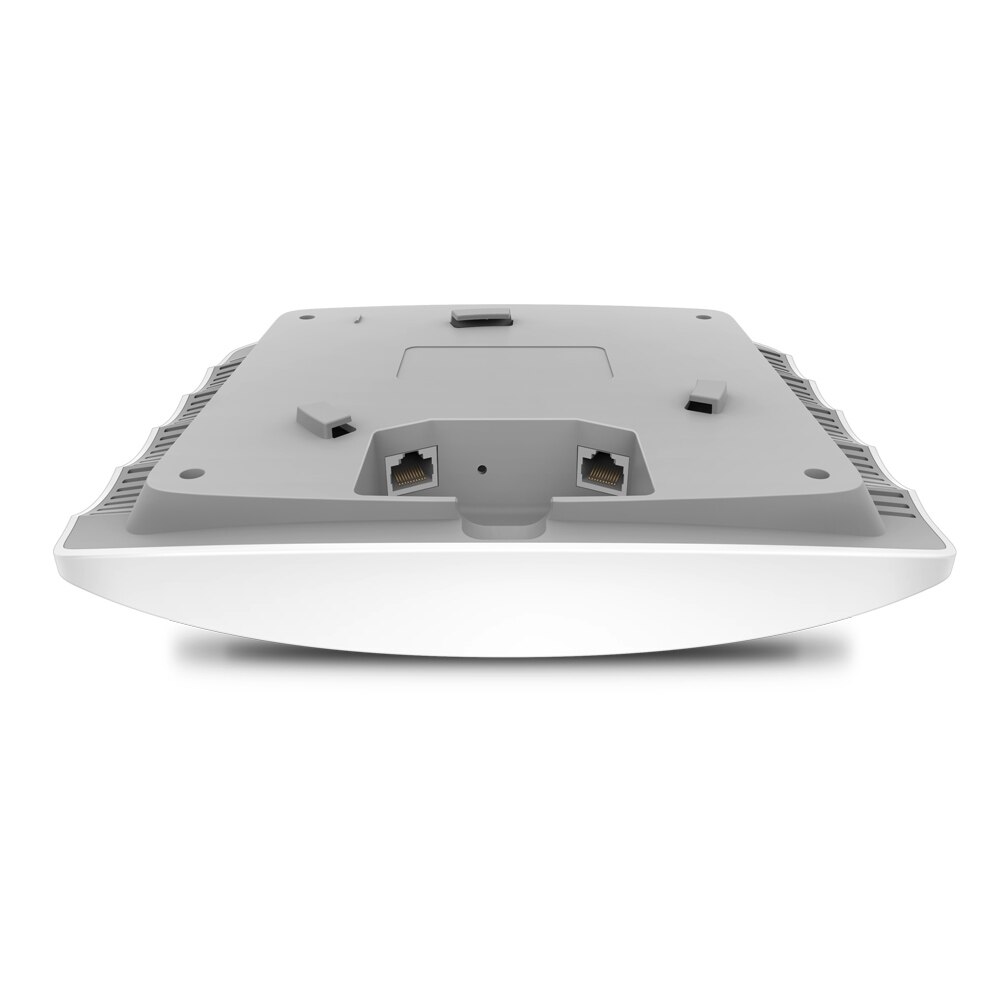

| Interface | 2 × Gigabit Ethernet (RJ-45) Ports |
| Button | Reset |
| Power Supply | 802.3af/at PoE or 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 12.3 W |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in. (206 × 182 × 37 mm) |
| Antenna Type | Internal Omni 2.4GHz: 3 × 4dBi 5GHz: 3 × 4dBi |
| Mounting | Ceiling or Wall Mount (Mounting kit included) |
| Physical Security Lock | Yes |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz:Up to 1300Mbps 2.4GHz:Up to 450Mbps |
| Wireless Functions | Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO (Wave 2) Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | FCC: ≤25dBm(2.4GHz) ≤27dBm(5GHz) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Software Controller or OC200 |
| APP support | Omada App |
| Cloud Access | Yes omada.tplinkcloud.com |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | Yes |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | FCC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
