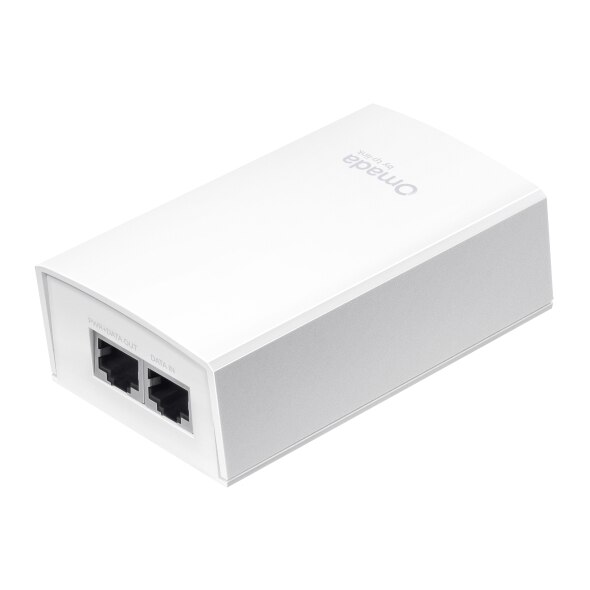

TP-Link POE5430G-M2 Omada 54V 30W 2.5G Passive PoE Adapter
- SKU: POE5430G-M2
Product Information
TP-Link POE5430G-M2
Omada 54V 30W 2.5G Passive PoE Adapter
The passive PoE adapter POE5430G-M2 can be used to simultaneously supply power and transmit data to a passive PoE device.
Features:
- 54V passive PoE supported
- Convenient wall-mount design
- Auto-determine the necessary power requirements
- 2.5Gbps/1000Mbps/100Mbps/10Mbps speed support
- Plug-and-Play, requires no configuration
- Maximum power up to 30W
Specifications
Specifications POE5430G-M2
| HARDWARE FEATURES | |

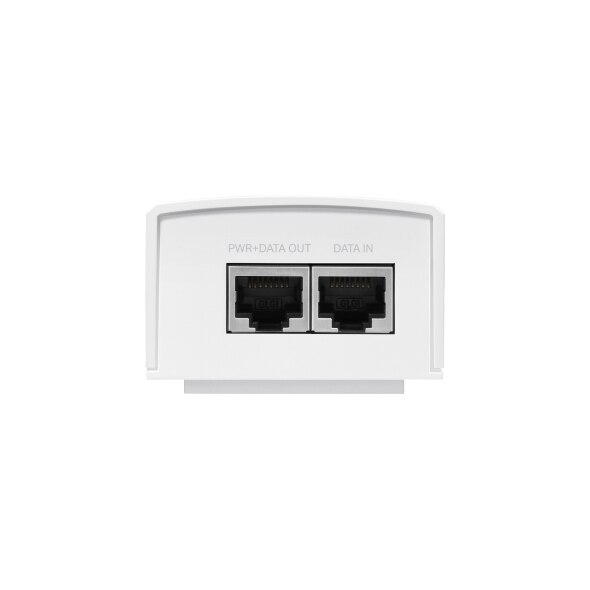

| Interface | • 10/100/1000/2500 Mbps Auto-Negotiation RJ45 DATA IN port • 10/100/1000/2500 Mbps Auto-Negotiation RJ45 PWR+DATA OUT port |
| Power Supply | 54V/0.56A |
| LED | PWR |
| Dimensions ( W x D x H ) | 4.33x2.24x1.42 in（110x57x36 mm ） |
| Certification | CE, FCC, BSMI, UL, KC |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
