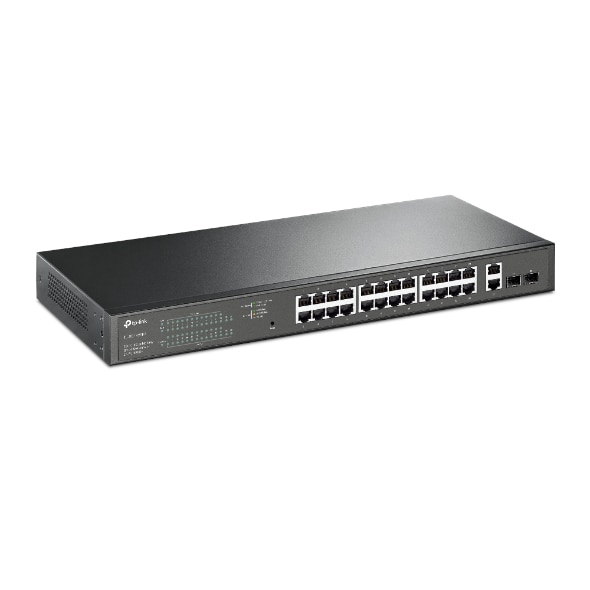

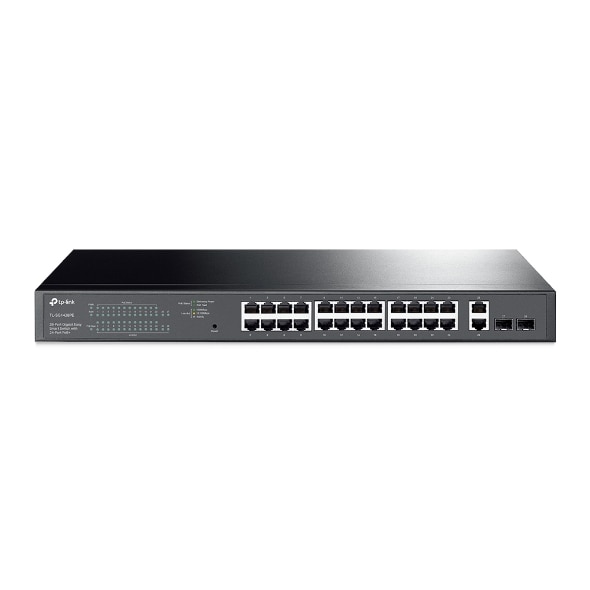

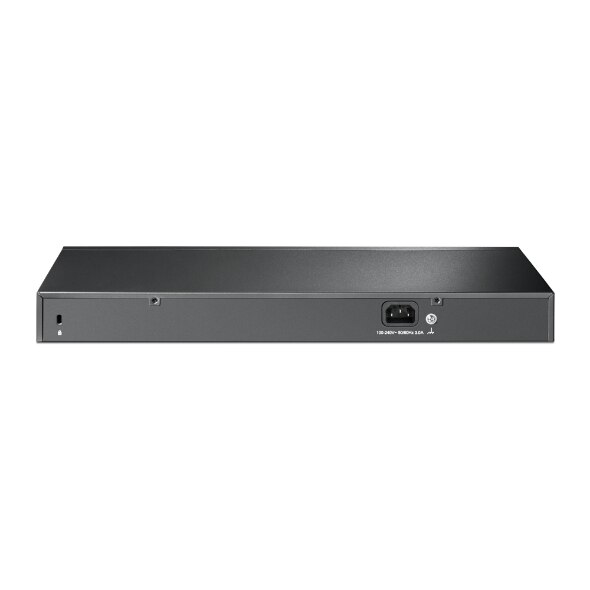

TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
- SKU: TL-SG1428PE
$344.53
Product Information
28-Port Gigabit Easy Smart Switch with 24-Port PoE+ PORT: 24× Gigabit PoE+ Ports, 2× Gigabit Non-PoE Ports, 2× Gigabit SFP Slots SPEC: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: PoE Auto Recovery, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play
Specifications
Specifications TL-SG1428PE
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W |
| Dimensions ( W x D x H ) Weight | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) 8.59 lb |
| Mounting | 19" 1U rack mountable |
| Max Power Consumption | 27 W (no power device connected) 304.7 W (with 250W power device connected) |
| Max Heat Dissipation | 92.1 BTU/h (no PD connected) 1,039.0 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
| VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management | Web-Based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C~50°C (32°F~122°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
