Tycon Power Outdoor Switch Enclosure
- SKU: ENC-SW-8x5
$86.26 $90.80
- Manufacturer: Tycon Power
- Spec Sheet: Download
Product Information
Product Features
- For TP-SW series of POE switches
- Feedthrough’s for up to 12 CAT5/6/Power cables
- Weatherproof / UV Resistant
- Mounts to wall or pole

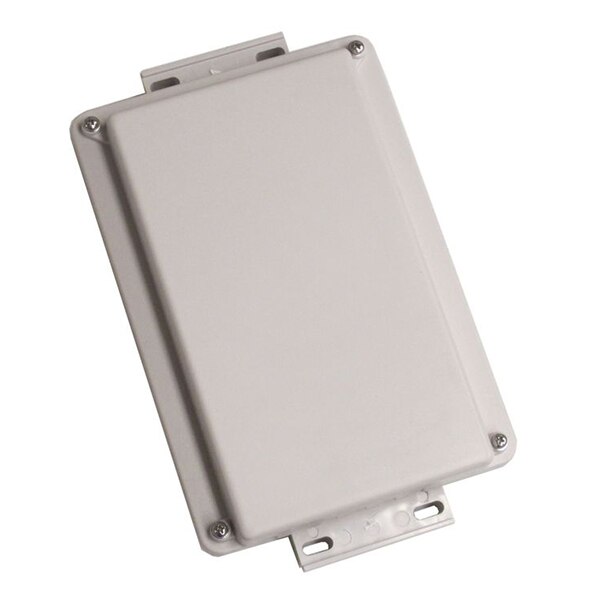

The ENC-SW-8x5 outdoor weatherproof PoE switch enclosure is designed especially for the Tycon TP-SW series of PoE switches. It accommodates the 5 port or 8 port switches. They provide an inexpensive and convenient way to locate the PoE switch on a tower or antenna mast close to the equipment that uses it.

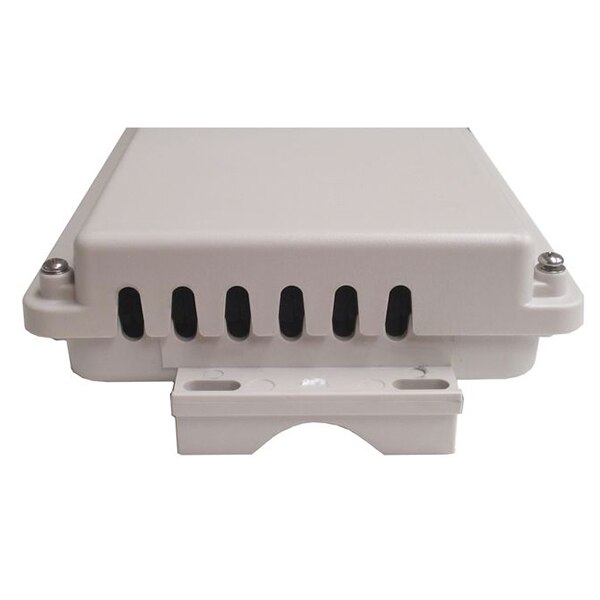

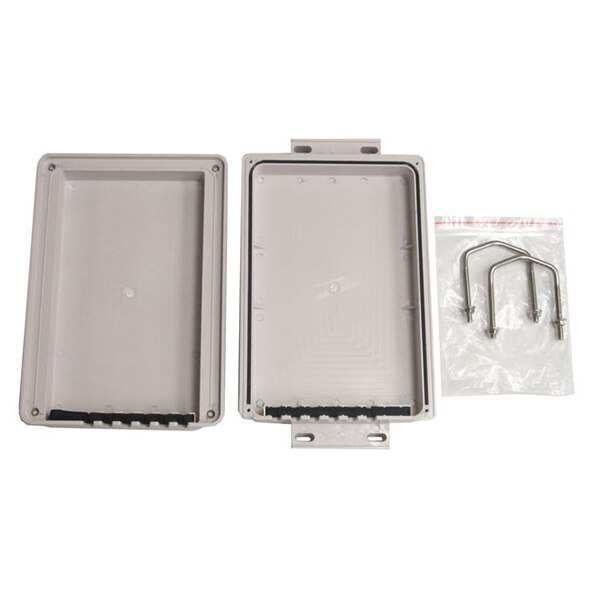

There are 6 cable feedthroughs which can accommodate up to 12 CAT5 or CAT6 or power cables. The enclosure is made from UV and impact resistant plastic for long life and worry free operation. The enclosure can be pole or wall mounted.
Specifications
Specifications ENC-SW-8x5
| Weatherproof Rating | Nema 4X, IP65 |
| Temperature Rating | -50 to +85°C (-58 to +185°F) |
| Humidity (RH) | 0% - 100% |
| Inside Dimensions (LxWxH) | 222 x 133 x 45mm (8.75 x 5.25 x 1.75”) |
| Outside Dimensions (LxWxH) | 292 x 178 x 64mm (11.5 x 7 x 2.5”) |
| Weight | 567g (1.25 lb) |
