Tycon Systems TP-ESP-1000-POE24 GigE PoE Lightning Surge Supressor, Shielded, Metal Housing, Industrial Strength
- SKU: TP-ESP-1000-POE24
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Tycon Power TP-ESP-1000-POE24
10/100/1000Mb PoE Surge Protector - 24V PoE

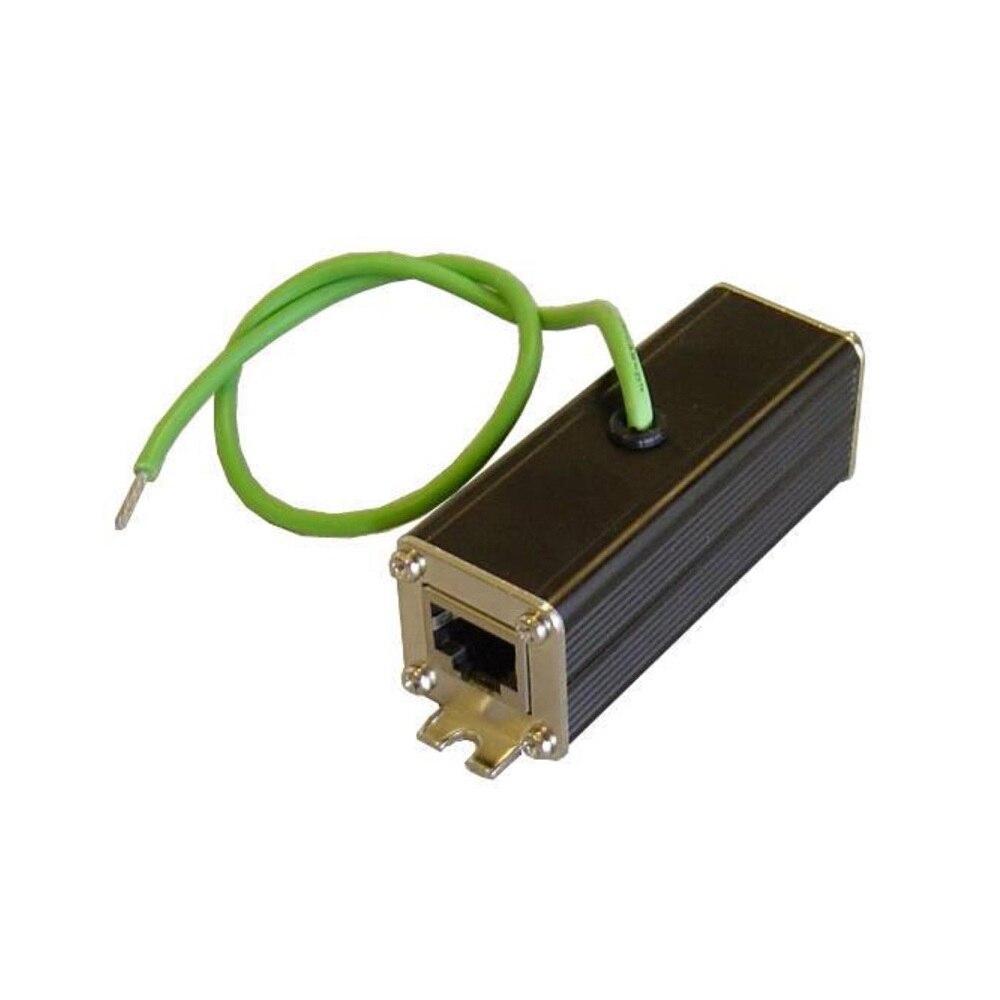

The TP-ESP-1000-POE24 is a low cost Ethernet surge protector to help protect sensitive equipment from surges caused by lighting and grid power fluctuations. It has a full metal body for improved EMI suppression, and has integral mounting feet and separate ground wire. This product is compatible with 10/100/1000M POE systems up to 24V
Features:
- 10/100/1000Mb Data Rate (24 or 48V POE Model)
- CAT5/6 Compatible. All 8 pins protected.
- Shielded jacks and full metal housing
- Complies with IEC 61643-21 Standard
- UL497B Listed
Applications:
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- Industrial Control Systems
Specifications
Specifications TP-ESP-1000-POE24
| Operating Voltage | Data 5V ; POE 24V |
| Clamping Voltage | 40V POE (All 8 Pins) |
| Max Surge Discharge Current | 5KA (8/20us) |
| Peak Pulse Current | 100A (10/1000us) |
| Protection Mode | Differential & Common Mode |
| Insulation Resistance | >1000 MOhm |
| Shunt Capacitance | < 50 pF |
| Data Rate | 10/100/1000 Mbps |
| Response Time | <5 ns |
| Operating Temperature | -40 to +85°C |
| Storage Temperature | -40 to +125°C |
| Operating Humidity | 0% to 95% non condensing |
| Size (L x W x H) | 4 x 1 x 1" (102 x 25 x 25mm) |
| Weight | 3.1oz (88g) |
| Ground Wire | 14 AWG, 10" (26cm) long |
| Connectors | RJ45 Shielded Jack |
| IEC Standard | 61000-4-5, 61643-21 |
| IEEE/ ANSI Standard | C62.45 |
