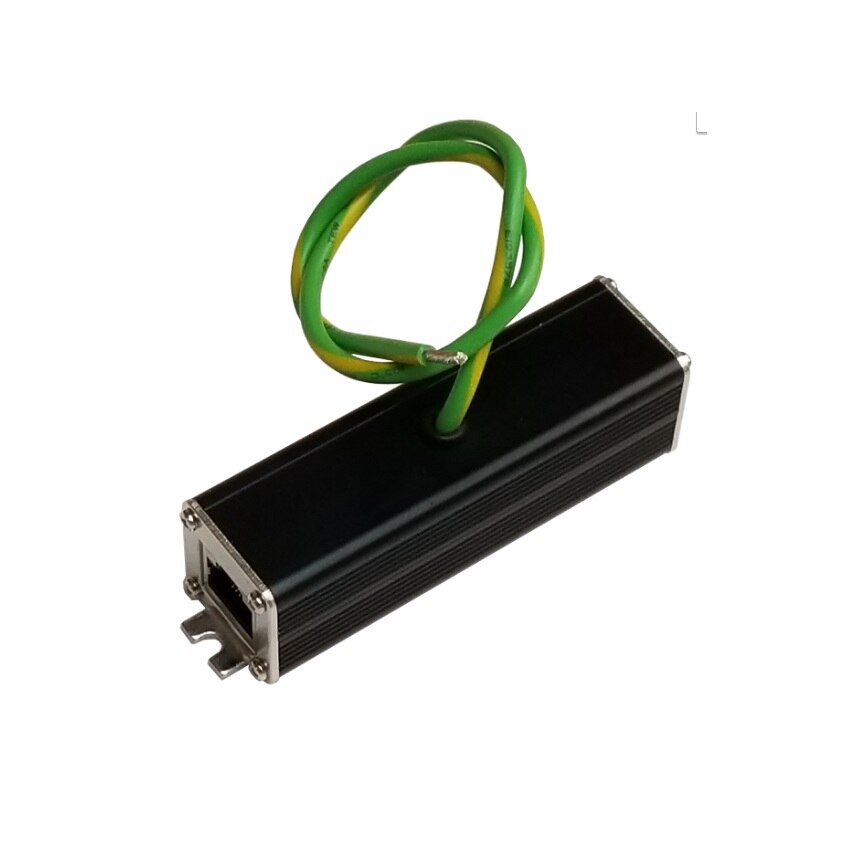

10G Lightning/Surge Protector, 70V Clamp Voltage, 10KA
- SKU: TP-ESP-10G-POE
$114.66 $120.70
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Network Lightning/Surge Protector, 10Gbps Data Rate, LAN/POE 70V Clamp Voltage, 10KA Surge
Specifications
Specifications TP-ESP-10G-POE
| Operating Voltage | POE < 58V |
| Operating Current | 2.5A |
| Clamping Voltage | 70V POE (All 8 Pins) |
| Max Surge Discharge Current | 10KA (8/20us, 10 times with 3 mins interval) |
| Peak Pulse Current | 100A (10/1000us, 300 times with 3mins interval) |
| Protection Mode | Differential & Common Mode |
| Insulation Resistance | >10,000 MOhm |
| Capacitance (line to line) | < 3 pF |
| Data Rate | 10/100/1,000/10,000 Mbps (10Gbps) |
| Operating Temperature | -40 to +90°C |
| Storage Temperature | -40 to +125°C |
| Operating Humidity | 0% to 95% non condensing |
| Size (L x W x H) | 4.7 x 1 x 1” (120 x 25.4 x 25.4mm) |
| Weight | 2.8oz (80g) |
| Ground Wire | 14 AWG, 10.8” (275mm) long |
| Connectors | RJ45 Shielded Jacks |
| Ethernet Cable Compatibility | CAT5, CAT5e, CAT6. CAT6a |
| IEC Standard | 61000-4-5 |
| UL Standard | 497B |
| MTBF (Mean Time Between Failure) | 1,414,941 Hours |
| Warranty | 3 Years |
