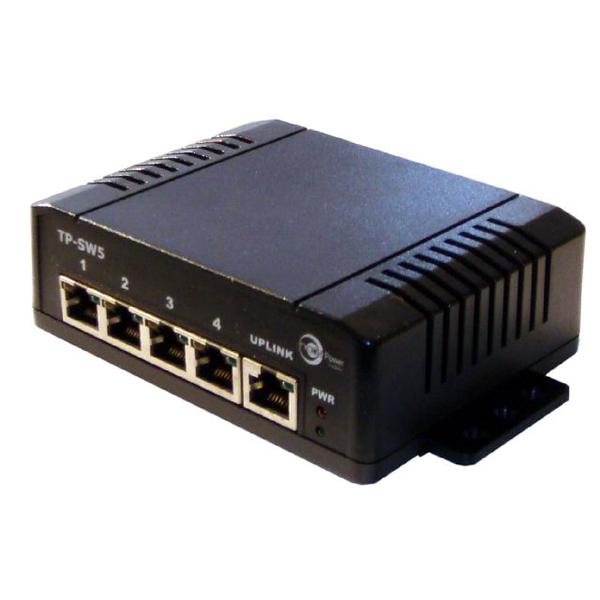

5 Port PoE Switch, 12-56VDC IN, Passive PoE OUT, VPoE Out=Vin
- SKU: TP-SSW5-NC
$266.10 $280.11
Product Information
12-56V 5 port High Power (2A/port) PoE 10/100BASET switch. PoE voltage = Input voltage. Non IEEE 802.3af compliant
Specifications
Specifications TP-SSW5-NC
| Ethernet Standard | IEEE802.3/IEEE802.3u |
| Ports | 1 data/PoE input and 4 data/PoE, automatic crossover and polarity |
| Transmission Speed | 100 Mbps /10 Mbps Auto-negotiation |
| Switch Technology | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE802.3x(full-duplex), Back Pressure(half-duplex) |
| Address Table | 1K MAC, self-learning |
| Connections | Shielded RJ45 |
| Maximum POE Power | 2A per port |
| Self Consumption | < 1 Watt |
| Operating Humidity (RH) | 5% - 90% (non condensing) |
| Weight | 182g (6.7oz) |
