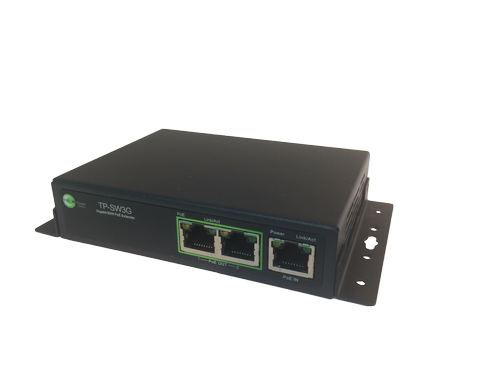

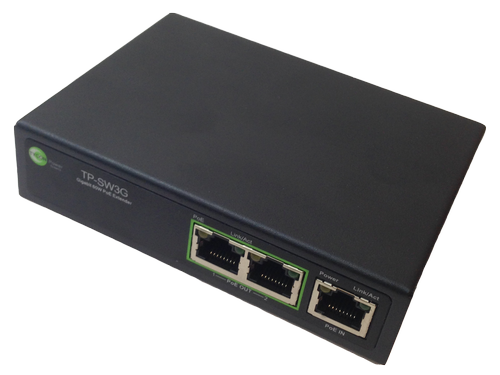

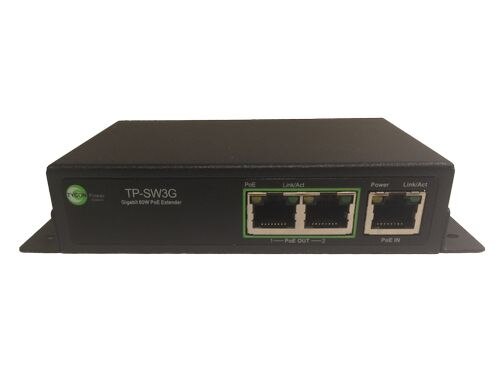

3 Port 60W Gigabit PoE Extender. IEEE802.3af/at
- SKU: TP-SW3G
$119.50 $125.80
Product Information
3 Port 60W Gigabit PoE Extender. IEEE802.3af/at
Specifications
Specifications TP-SW3G
| Ports | 1 data/PoE input and 2 data/PoE outputs, automatic crossover and polarity |
| Transmission Speed | 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation |
| Connections | Shielded RJ45, Grounded to case |
| PoE Input Port | Vin 44VDC to 57VDC, PoE Pinout: 1,2(V-); 3,6(V+) and/or 7,8(V-); 4,5(V+) |
| PoE Output Ports | Vout 42VDC to 55VDC, Pin assignment: V-(1,2), V+(3,6) |
| PoE Output Power | 30W per port Maximum, 60W Total |
| POE Compatibility | IEEE802.3af (PoE), IEEE802.3at (PoE+), 802.3at 4 Pairs (60W) High PoE |
| POE Protections | Over Temperature, Over Current, Short Circuit |
| Surge Protection | IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) |
| Self Consumption | < 1.5 Watt Typical |
| LED’s | Link (Green On), Activity (Green Blinking ), PoE Detect (Yellow On) |
| Switch Technology | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE802.3x(full-duplex), Back Pressure(half-duplex) |
| Data Transmission Rate | 148800pps ,14880pps |
| Address Table | 1K MAC, self-learning |
| Operating Temp | -30 to +60°C (-22 to 140°F) |
| Operating Humidity (RH) | 5% - 90% (non condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (LxWxH) | 119 x 85 x 28mm (4.7 x 3.3 x 1.1”) |
| Weight | 280g (9.9oz) |
| Warranty | 3 Years |
