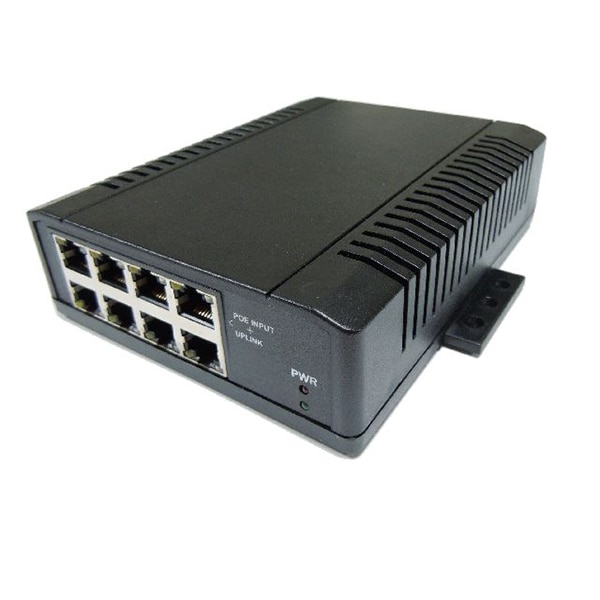

8 Port PoE Switch, 12-56VDC IN, Passive PoE OUT, VPoE Out=Vin
- SKU: TP-SW8-NC
$372.57 $392.18
Product Information
12-56V 8 port High Power (2A/port) PoE 10/100 BASET switch. PoE voltage = Input voltage. Non IEEE 802.3af compliant
Specifications
Specifications TP-SW8-NC
| Ethernet Standard | IEEE802.3/IEEE802.3u (10 base-T/100base-T) |
| POE Standard (Port 1-8) | TP-SW8-NC Passive POE 12-57VDC |
| Ports | 1 data/PoE input and 7 data/PoE output automatic crossover and polarity |
| Transmission Speed | 100 Mbps(100base-T),10 Mbps(10base-T) Auto-negotiation |
| Switch Technology | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE802.3x(full-duplex), Back Pressure(half-duplex) |
| Data Transmission Rate | 148800pps for 100base-T, 14880pps for 10base-T |
| Address Table | 2K MAC, self-learning |
| Connections Shielded | RJ45 |
| POE Port | Port 1-7, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8) |
| Maximum POE Power | Port 1-8, 2A Per Port – NC Version Port 1-8, 35W Per Port – 802.3af/at Version Secondary Wire Terminal Input Max 10A |
| POE Protection | Over Temperature, Over Current, Over/Under Voltage |
| Data Surge Protection | IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 20A (8/20μs) |
| LED’s | Link (Green On, Yellow On) Activity (Green Blinking, Yellow Blinking ) PoE Input Detect-4 pair (Yellow On) PoE Input Detect-2 pair (Yellow Blinking) Power On (Green On) Power On Alarm (Red On) |

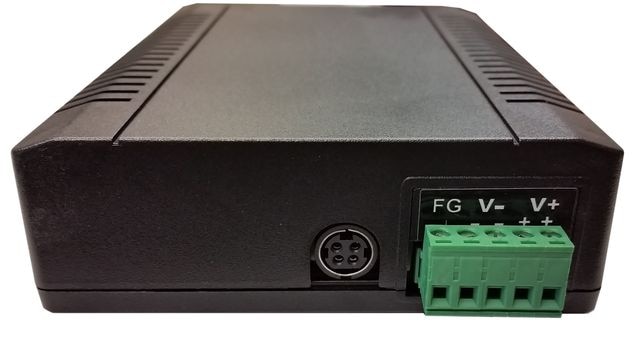

| DC Power Input | 46V to 57V, 12V to 57V(-NC Version) Dual DC Inputs, Reverse Polarity Protected. |
| Self Consumption | <1.5 Watts |
| Operating Temperature | -40 to +85°C (-40 to 185°F) |
| Operating Humidity (RH) | 5% - 90% (non condensing) |
| Storage Temperature | -55 to +105°C (-67 to +221°F) |
| Dimensions (LxWxH) | 159 x 116 x 40mm (6.3 x 4.6 x 1.6”) |
| Weight | 0.45kg (1lb) |
